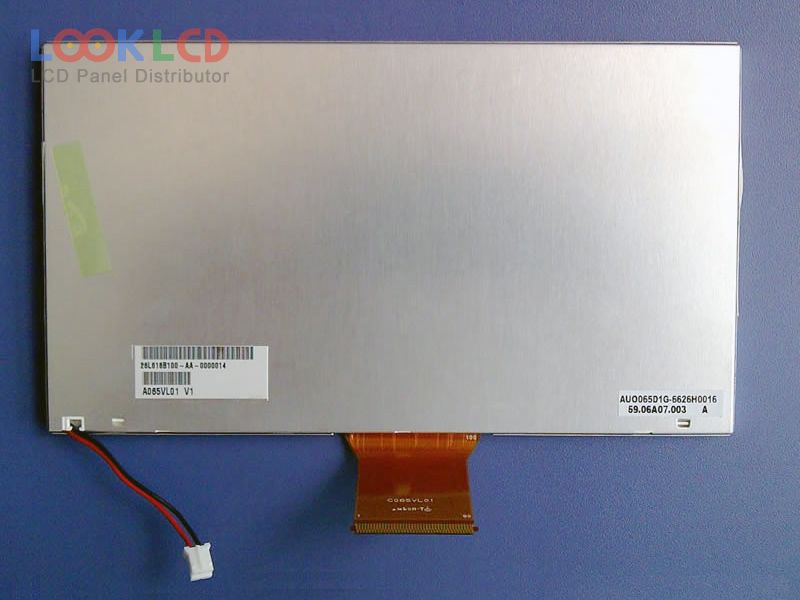

| PartNumber | A065VL01 V1 |
| Značka | AUO |
| Velikost | 6.5 |
| aplikace | MP4 |
| Rozlišení | 800×480 |
| Složení | LCM |
| Jas | 300 |
| CR | 300:1 |
| Barvy | 262K |
| Podsvícení | WLED |
| Rozhraní | TTL |
| značka panelu | AUO |
| panelový model | A065VL01 V1 |
| typ panelu | LTPS TFT-LCD , LCM |
| velikost panelu | 6.5 inch |
| rozlišení | 800(RGB)×480 , WVGA |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 143.4×79.2 mm |
| obrys | 157.2×89.2 mm |
| povrch | Antiglare (Haze 25%) |
| jas | 300 cd/m² (Typ.) |
| kontrastní poměr | 300:1 (Typ.) |
| zobrazit barvy | 262K (6-bit) |
| Doba odezvy | 12/18 (Typ.)(Tr/Td) |
| úhel pohledu | 55/55/45/60 (Min.)(CR≥10)(L/R/U/D) |
| typ lampy | 4S1PWLEDWithout Driver |
| signálové rozhraní | TTL (1 ch, 6-bit), 80 pins |
| vstupní napětí | 3.3/10.5/13.5/-7V (Typ.)(VCC/AVDD/VGH/VGL) |
| rohs: | |
| aplikace | MP4 |
