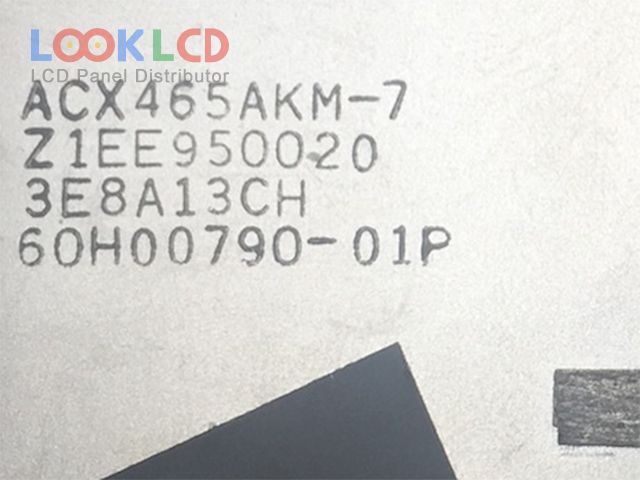

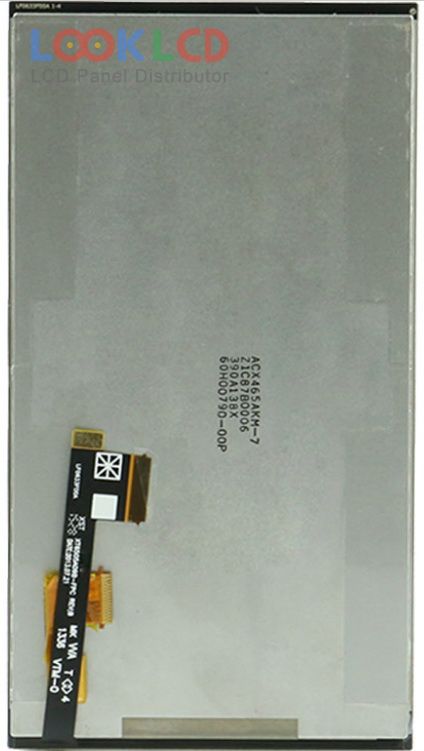

| PartNumber | ACX465AKM-7 |
| Značka | JDI |
| Velikost | 5.9 |
| aplikace | MPH |
| Rozlišení | 1080×1920 |
| Složení | LCM |
| Jas | 400 |
| CR | 1000:1 |
| Barvy | 16.7M |
| Podsvícení | WLED |
| Rozhraní | MIPI |
| značka panelu | JDI |
| panelový model | ACX465AKM-7 |
| typ panelu | LTPS TFT-LCD , LCM |
| velikost panelu | 5.9 inch |
| rozlišení | 1080(RGB)×1920 , FHD |
| zobrazovací mód | IPS, Normally Black, Transmissive |
| aktivní oblast | 72.9×129.6 mm |
| obrys | 76.15×139.01 mm |
| povrch | Hard coating (3H) |
| jas | 400 cd/m² (Typ.) |
| kontrastní poměr | 1000:1 (Typ.) |
| zobrazit barvy | 16.7M (8-bit), CIE193171% |
| Doba odezvy | 35 (Max.)(Tr+Td) |
| úhel pohledu | 80/80/80/80 (Min.)(CR≥100)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | 7S2PWLEDWithout Driver |
| signálové rozhraní | MIPI (4 data lanes), 31 pins |
| vstupní napětí | 1.8/5.0/-5.0V (Typ.)(IOVCC/AVDD+/AVDD-) |
| aplikace | MPH |
| ACX465AKM-7 | JDI | 5.9 | 1080×1920 |
| LM238XB | KOE | 5.9 | 240×128 |
| LS059T1SX01 | SHARP | 5.9 | 1080×1920 |
| CM520F1-001 | CSOT | 5.2 | 1080×1920 |
| L5F30774P01 | Epson | 2.6 | 240×320 |
| LH350H02-FD02 | LG Display | 3.5 | 320×480 |
| LQ047K3SX06 | SHARP | 4.7 | 720×1280 |
| LS043T1LX01A | SHARP | 4.3 | 540×960 |
| LS050T1SX10 | SHARP | 5.0 | 1080×1920 |
| LS055T1SX01 | SHARP | 5.5 | 1080×1920 |
| RGS15128128FH035 | RiTdisplay | 1.46 | 128×128 |
| TM020HDZ05 | Tianma | 2.0 | 240×320 |
| TM055JDHP71 | Tianma | 5.5 | 720×1280 |
