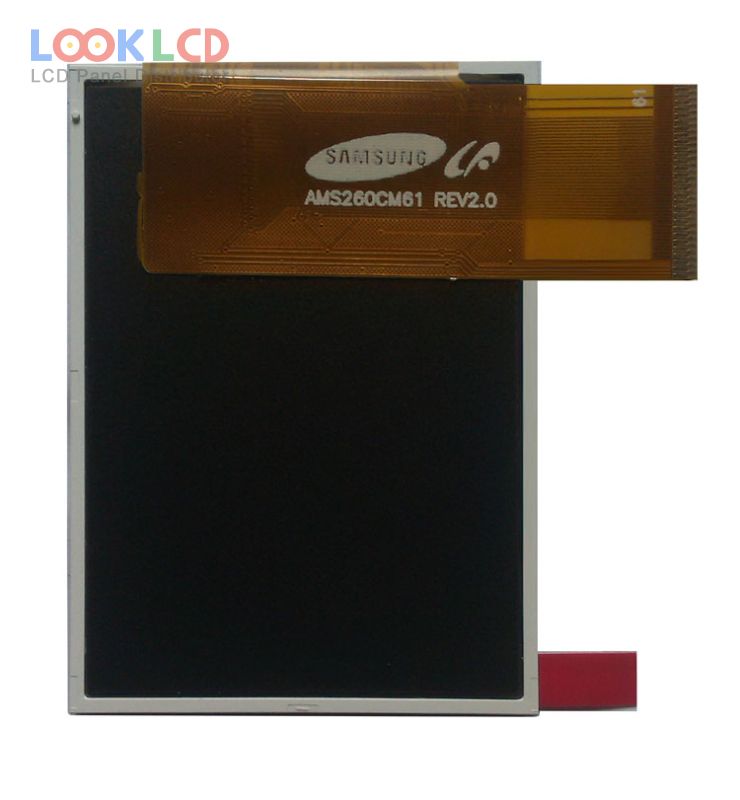

| PartNumber | AMS260CM61 |
| Značka | Samsung |
| Velikost | 2.6 |
| aplikace | MPH |
| Rozlišení | 240×320 |
| Složení | OLED |
| Jas | 200 |
| CR | 10000:1 |
| Barvy | 262K |
| Podsvícení | self |
| Rozhraní | CPU/RGB/SPI |
| značka panelu | SAMSUNG SDI |
| panelový model | AMS260CM61 |
| typ panelu | AM-OLED , OLED |
| velikost panelu | 2.6 inch |
| rozlišení | 240(RGB)×320 , QVGA |
| aktivní oblast | 40.32×54.08 mm |
| obrys | 44.7×62.2×2.15 mm |
| povrch | |
| jas | 200 cd/m² (Typ.) |
| kontrastní poměr | 10000 : 1 (Typ.) |
| zobrazit barvy | 262K (6-bit), CIE193173% |
| úhel pohledu | |
| řidič ic | COG Built-in S6E63D3 |
| signálové rozhraní | 8/9/16/18-bit 6800/8080 parallel, 6/16/18-bit RGB, SPI, 61 pins |
| vstupní napětí | 1.8/2.8V (Typ.)(VDD3/VCI) |
| aplikace | MPH |
