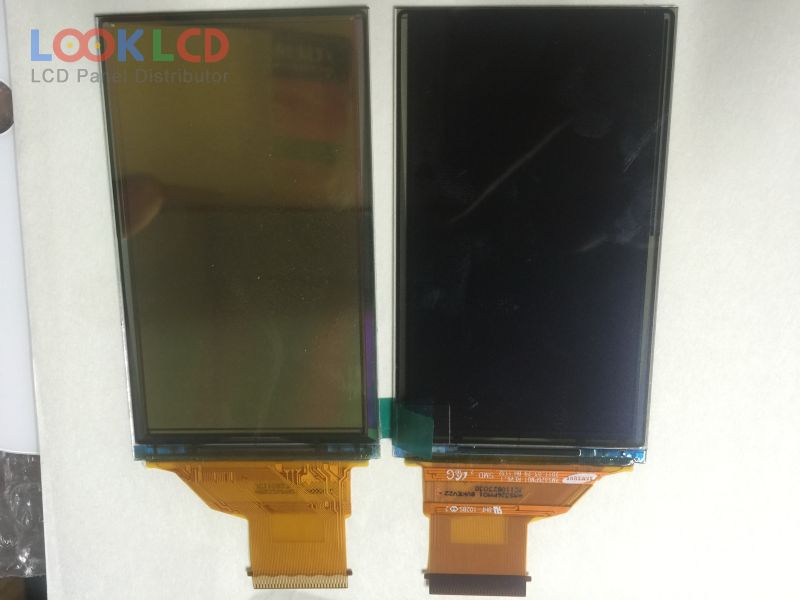

| PartNumber | AMS326PM01 |
| Značka | Samsung |
| Velikost | 3.3 |
| aplikace | MPH |
| Rozlišení | 854×480 |
| Složení | OLED |
| Jas | 300 |
| CR | 10000:1 |
| Barvy | 16.7M |
| Podsvícení | self |
| Rozhraní | TTL |
| značka panelu | SAMSUNG SMD |
| panelový model | AMS326PM01 |
| typ panelu | AM-OLED , OLED |
| velikost panelu | 3.3 inch |
| rozlišení | 854RG(BG)×480 , FWVGA |
| aktivní oblast | 72.16×40.56 mm |
| obrys | 80.56×47.36×0.86 mm |
| povrch | Glare (Haze 0%), Hard coating |
| jas | 300 cd/m² (Typ.) |
| kontrastní poměr | 10000 : 1 (Typ.) |
| zobrazit barvy | 16.7M (8-bit), CIE1931106% |
| úhel pohledu | 80/80/80/80 (Typ.)(CR≥200)(L/R/U/D) |
| frekvence | 60Hz |
| řidič ic | Built-in D53E6EA8805 |
| signálové rozhraní | Parallel RGB (1 ch, 8-bit) + SPI, 61 pins |
| vstupní napětí | 1.8/3.0/3.0V (Typ.)(VCCIO1/VCCIO2/VCI) |
| aplikace | MPH |
