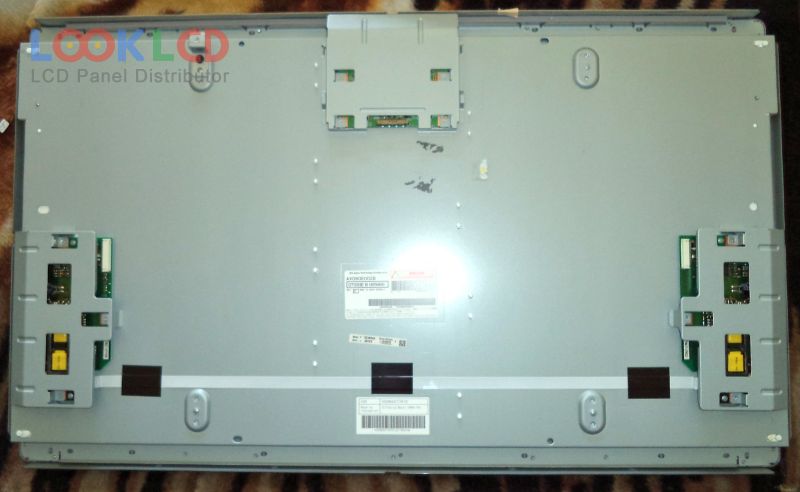

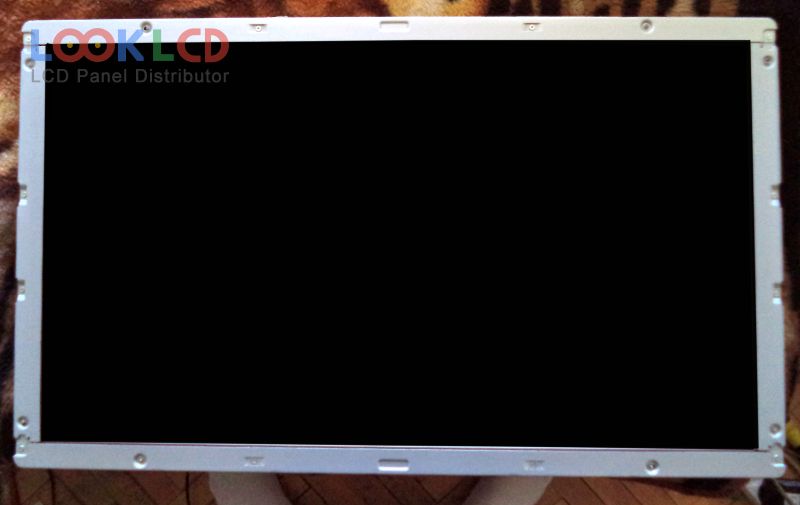

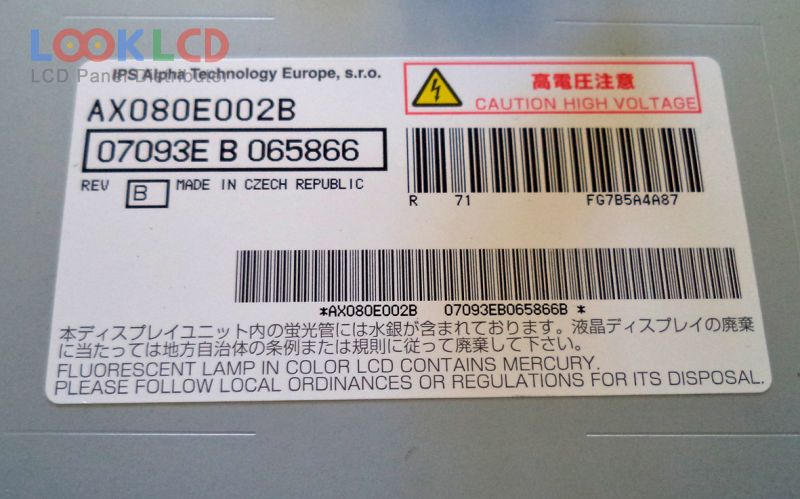

| PartNumber | AX080E002B |
| Značka | KOE |
| Velikost | 31.5 |
| aplikace | LCTV |
| Rozlišení | 1366×768 |
| Složení | LCM |
| Jas | 500 |
| CR | 950:1 |
| Barvy | 16.7M |
| Podsvícení | EEFL |
| Rozhraní | LVDS |
| značka panelu | IPS Alpha |
| panelový model | AX080E002B |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 31.5 inch |
| rozlišení | 1366(RGB)×768 , WXGA |
| zobrazovací mód | IPS-Pro, Normally Black, Transmissive |
| aktivní oblast | 697.685×392.256 mm |
| obrys | 760×450 mm |
| povrch | Antiglare |
| jas | 500 cd/m² (Typ.) |
| kontrastní poměr | 950:1 (Typ.) |
| zobrazit barvy | 16.7M (8-bit) |
| Doba odezvy | 8/6 (Typ.)(Tr/Td); 17 (Typ.)(MPRT) |
| úhel pohledu | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | 16 pcsEEFLEmbedded (Inverter) |
| signálové rozhraní | LVDS (1 ch, 8-bit), 41 pins |
| vstupní napětí | 12.0V (Typ.) |
| aplikace | LCTV |
