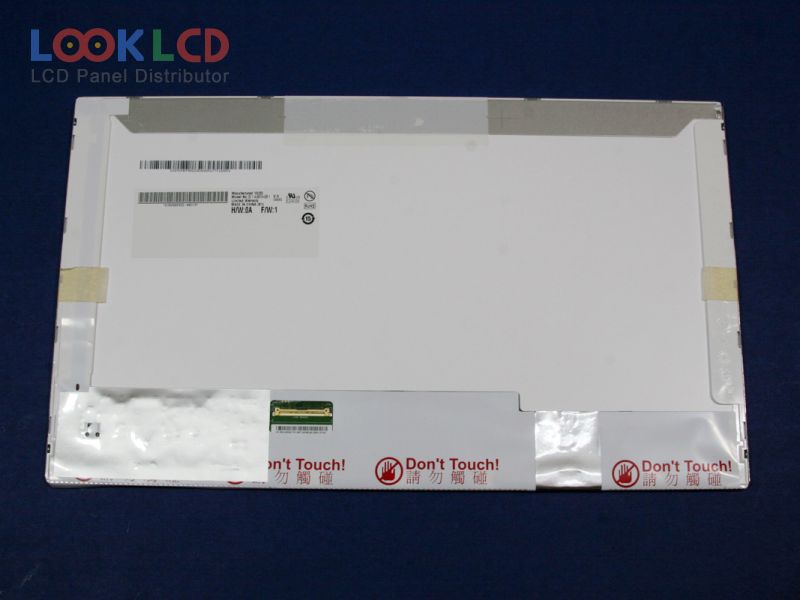

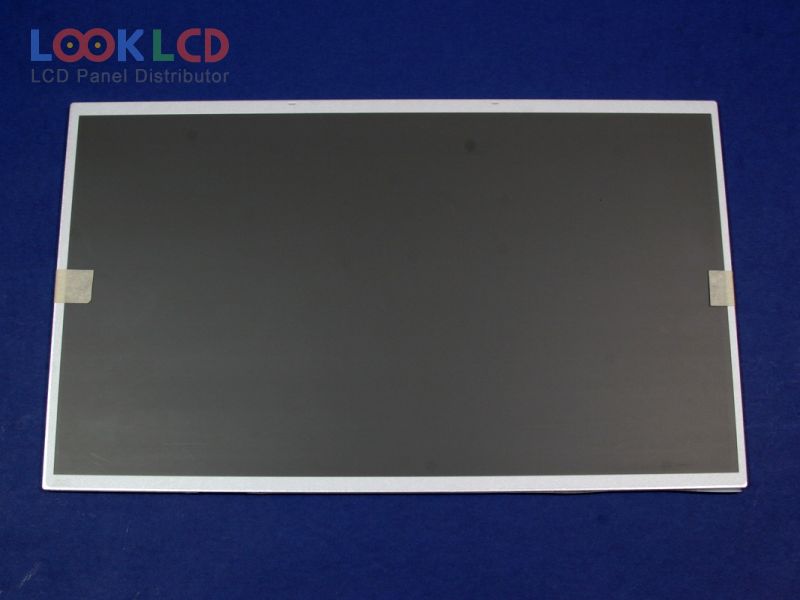

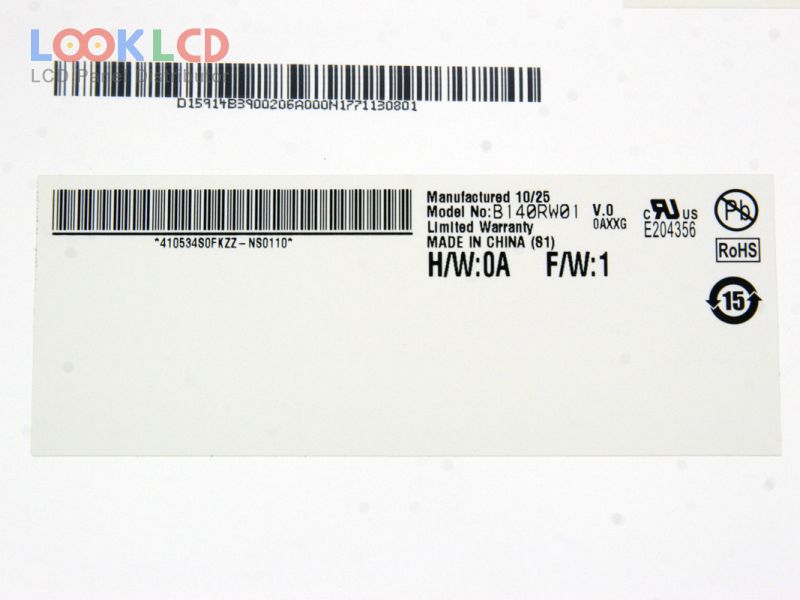

| PartNumber | B140RW01 V0 |
| Značka | AUO |
| Velikost | 14.0 |
| aplikace | NBPC |
| Rozlišení | 1600×900 |
| Složení | LCM |
| Jas | 250 |
| CR | 500:1 |
| Barvy | 262K |
| Podsvícení | WLED |
| Rozhraní | LVDS |
| značka panelu | AUO |
| panelový model | B140RW01 V0 2 Compatible model |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 14.0 inch |
| rozlišení | 1600(RGB)×900 , HD+ |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 309.6×174.15 mm |
| obrys | 323.5×192×5.4 mm |
| tvarový styl | Wedge (PCBA Bent, Depth ≥5.2mm) |
| povrch | Glare (Haze 0%), Hard coating (3H) |
| jas | 250 cd/m² (Typ.) |
| kontrastní poměr | 500:1 (Typ.) |
| zobrazit barvy | 262K (6-bit), CIE193160% |
| Doba odezvy | 2/6 (Typ.)(Tr/Td) |
| úhel pohledu | 65/65/55/55 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | WLEDEmbedded (LED Driver) |
| signálové rozhraní | LVDS (2 ch, 6-bit), 40 pins |
| vstupní napětí | 3.3V (Typ.) |
| aplikace | NBPC |
| B140RTN01.0 | AUO | 14.0 | 1600×900 |
| B140RTN02.1 | AUO | 14.0 | 1600×900 |
| B140RTN02.3 | AUO | 14.0 | 1600×900 |
| B140RTN03.0 | AUO | 14.0 | 1600×900 |
| B140RW01 V0 | AUO | 14.0 | 1600×900 |
| B140RW01 V2 | AUO | 14.0 | 1600×900 |
| B140RW02 V0 | AUO | 14.0 | 1600×900 |
| B140RW02 V1 | AUO | 14.0 | 1600×900 |
| B140RW02 V2 | AUO | 14.0 | 1600×900 |
| B140RW03 V1 | AUO | 14.0 | 1600×900 |
| B140XW01 V4 | AUO | 14.0 | 1366×768 |
| LP101WH1-TLB2 | LG Display | 10.1 | 1366×768 |
| LP140WH1-TLC3 | LG Display | 14.0 | 1366×768 |
| LP141WX3-TLR1 | LG Display | 14.1 | 1280×800 |
| LP154WP3-TLA2 | LG Display | 15.4 | 1440×900 |
| LQ150F1LW14C | SHARP | 15.0 | 1400×1050 |
| LTD106EXXF | TOSHIBA | 10.6 | 1280×768 |
| LTN156AT01-A01 | Samsung | 15.6 | 1366×768 |
| LTN156AT02-B04 | Samsung | 15.6 | 1366×768 |
| LTN156AT29-W02 | Samsung | 15.6 | 1366×768 |
