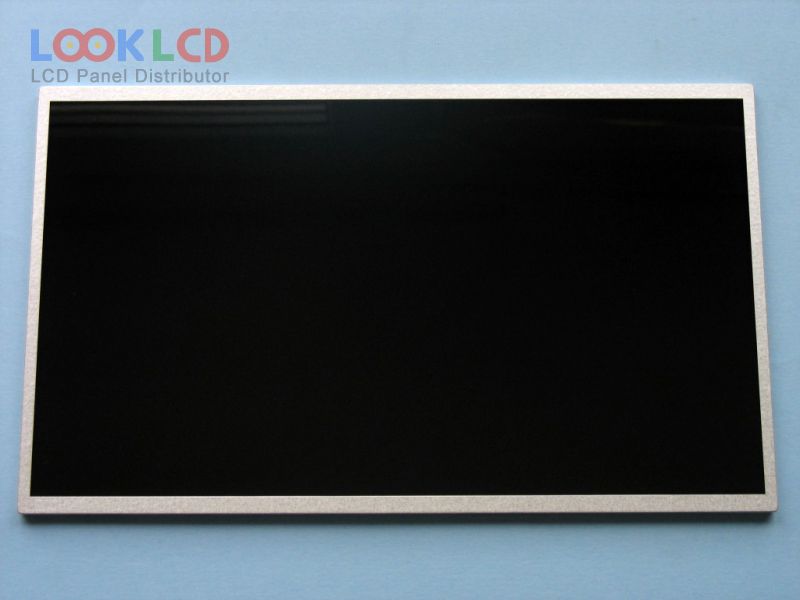

| PartNumber | B140XW01 V8 |
| Značka | AUO |
| Velikost | 14.0 |
| aplikace | NBPC |
| Rozlišení | 1366×768 |
| Složení | LCM |
| Jas | 200 |
| CR | 500:1 |
| Barvy | 262K |
| Podsvícení | WLED |
| Rozhraní | LVDS |
| značka panelu | AUO |
| panelový model | B140XW01 V8 2 Compatible model |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 14.0 inch |
| rozlišení | 1366(RGB)×768 , WXGA |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 309.399×173.952 mm |
| obrys | 323.5×192×5.2 mm |
| tvarový styl | Wedge (PCBA Bent, Depth ≥5.2mm) |
| povrch | Glare (Haze 0%), Hard coating (3H) |
| jas | 200 cd/m² (Typ.) |
| kontrastní poměr | 500:1 (Typ.) |
| zobrazit barvy | 262K (6-bit), CIE193145% |
| Doba odezvy | 8 (Typ.)(Tr+Td) |
| úhel pohledu | 45/45/15/35 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | WLEDEmbedded (LED Driver) |
| signálové rozhraní | LVDS (1 ch, 6-bit), 40 pins |
| vstupní napětí | 3.3V (Typ.) |
| aplikace | NBPC |
| B140XTN02.0 | AUO | 14.0 | 1366×768 |
| B140XTN02.3 | AUO | 14.0 | 1366×768 |
| B140XTN02.4 | AUO | 14.0 | 1366×768 |
| B140XTN03.3 HW0A | AUO | 14.0 | 1366×768 |
| B140XTN03.4 | AUO | 14.0 | 1366×768 |
| B140XTT01.0 | AUO | 14.0 | 1366×768 |
| B140XW01 V0 | AUO | 14.0 | 1366×768 |
| B140XW01 V8 | AUO | 14.0 | 1366×768 |
| B140XW01 V9 | AUO | 14.0 | 1366×768 |
| B140XW02 V0 | AUO | 14.0 | 1366×768 |
| B125HAN02.0 | AUO | 12.5 | 1920×1080 |
| CLAA154WB05AN | CPT | 15.4 | 1280×800 |
| LP140WH4-TLP1 | LG Display | 14.0 | 1366×768 |
| LP141WX1-TL04 | LG Display | 14.1 | 1280×800 |
| LP156WHB-TLA1 | LG Display | 15.6 | 1366×768 |
| LP173WD1-TLD3 | LG Display | 17.3 | 1600×900 |
| LTN140AT07-B01 | Samsung | 14.0 | 1366×768 |
| LTN156AT02-D03 | Samsung | 15.6 | 1366×768 |
| N133I1-L01 | Innolux | 13.3 | 1280×800 |
| N141I3-L01 | Innolux | 14.1 | 1280×800 |
