| PartNumber | BP101WX1-100 |
| Značka | BOE |
| Velikost | 10.1 |
| aplikace | PAD |
| Rozlišení | 1280×800 |
| Složení | LCM |
| Jas | 450 |
| CR | 800:1 |
| Barvy | 16.7M |
| Podsvícení | WLED |
| Rozhraní | LVDS |
| značka panelu | BOE |
| panelový model | BP101WX1-100 |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 10.1 inch |
| rozlišení | 1280(RGB)×800 , WXGA |
| zobrazovací mód | ADS, Normally Black, Transmissive |
| aktivní oblast | 216.96×135.6 mm |
| obrys | 227.56×148.2 mm |
| povrch | Hard coating (3H), Antireflection |
| jas | 450 cd/m² (Typ.) |
| kontrastní poměr | 800:1 (Typ.) |
| zobrazit barvy | 16.7M (6-bit + Hi-FRC), CIE193150% |
| Doba odezvy | 24 (Typ.)(Tr+Td) |
| úhel pohledu | 85/85/85/85 (Typ.)(CR≥20)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | 7S6PWLEDWithout Driver |

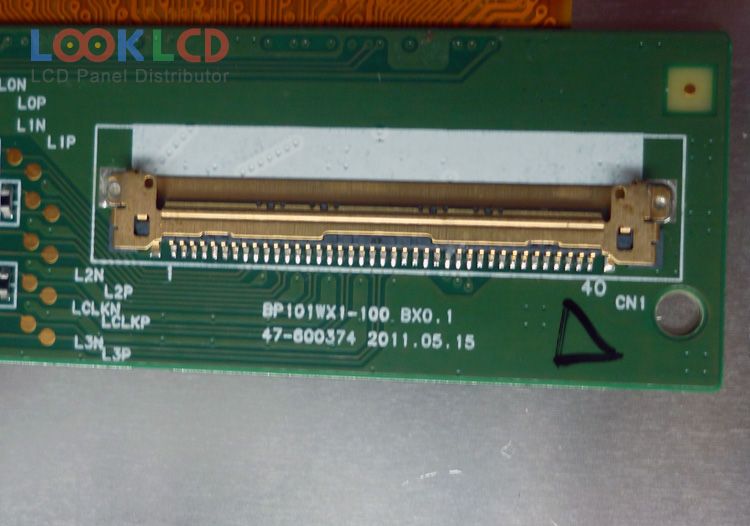

| signálové rozhraní | LVDS (1 ch, 8-bit), 40 pins |
| vstupní napětí | 3.3V (Typ.) |
| aplikace | PAD |
| A101VW01 V3 | AUO | 10.1 | 800×480 |
| BP101WX1-100 | BOE | 10.1 | 1280×800 |
| BP101WX1-200 | BOE | 10.1 | 1280×800 |
| BP101WX1-206 | BOE | 10.1 | 1280×800 |
| BP101WX1-210 | BOE | 10.1 | 1280×800 |
| BP101WX1-300 | BOE | 10.1 | 1280×800 |
| BP101WX1-400 | BOE | 10.1 | 1280×800 |
| CLAA101WH12 LE | CPT | 10.1 | 1280×800 |
| HSD101PFW4-A00 | HannStar | 10.1 | 1024×600 |
| LP101WH4-SLAF | LG Display | 10.1 | 1366×768 |
| BP082WX1-100 | BOE | 8.2 | 1280×800 |
| BP096WX1-100 | BOE | 9.6 | 800×1280 |
| BP101WX1-300 | BOE | 10.1 | 1280×800 |
| HSD101PWW1-A00 Rev.4 | HannStar | 10.1 | 1280×800 |
| HSD101PWW1-F01 | HannStar | 10.1 | 1280×800 |
| LD080WX2-SMN1 | LG Display | 8.0 | 800×1280 |
| LD101WX2-SLP1 | LG Display | 10.1 | 1280×800 |
| N070ICN-GB1 | Innolux | 7.0 | 800×1280 |
| TM097TDH02 | Tianma | 9.7 | 1024×768 |
| TV096WXM-NS0 | BOE | 9.6 | 800×1280 |
