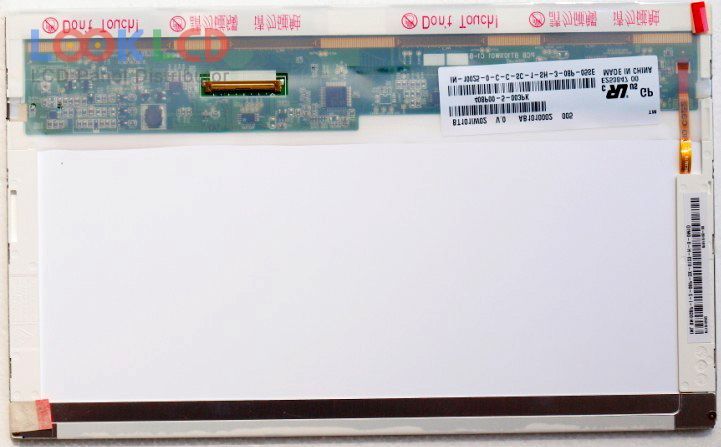

| PartNumber | BT101IW02 V.0 |
| Značka | Innolux |
| Velikost | 10.1 |
| aplikace | NOPC |
| Rozlišení | 1024×600 |
| Složení | LCM |
| Jas | 180 |
| CR | 500:1 |
| Barvy | 262K |
| Podsvícení | WLED |
| Rozhraní | LVDS |
| značka panelu | INNOLUX |
| panelový model | BT101IW02 V.0 13 Compatible model |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 10.1 inch |
| rozlišení | 1024(RGB)×600 , WSVGA |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 222.72×125.28 mm |
| obrys | 235×143×5.2 mm |
| tvarový styl | Wedge (PCBA Bent, Depth ≥5.2mm) |
| povrch | Glare (Haze 0%) |
| jas | 180 cd/m² (Typ.) |
| kontrastní poměr | 500:1 (Typ.) |
| zobrazit barvy | 262K (6-bit), CIE193145% |
| Doba odezvy | 8 (Typ.)(Tr+Td) |
| úhel pohledu | 40/40/15/30 (Min.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | 9S3PWLEDEmbedded (LED Driver) |
| signálové rozhraní | LVDS (1 ch, 6-bit), 40 pins |
| vstupní napětí | 3.3V (Typ.) |
| aplikace | NOPC |
| B101EVT05.0 | AUO | 10.1 | 1280×800 |
| BP101WX1-200 | BOE | 10.1 | 1280×800 |
| BT101IW01 V.0 | Innolux | 10.1 | 1024×600 |
| BT101IW02 V.0 | Innolux | 10.1 | 1024×600 |
| BT101IW04 V.0 | Innolux | 10.1 | 1024×600 |
| HJ101IA-01Q | Innolux | 10.1 | 1280×800 |
| LP101WH4-SLA6 | LG Display | 10.1 | 1366×768 |
| LTN101AL03-001 | Samsung | 10.1 | 1280×800 |
| N101LGE-L41 | Innolux | 10.1 | 1024×600 |
| N101N6-L01 | Innolux | 10.1 | 1024×576 |
| AT102TN42 | Innolux | 10.2 | 1024×600 |
| B101AW03 V0 | AUO | 10.1 | 1024×600 |
| B116XTN01.0 HW5A | AUO | 11.6 | 1366×768 |
| CLAA101NB03A | CPT | 10.1 | 1024×600 |
| LP116WH1-TLA1 | LG Display | 11.6 | 1366×768 |
| LP116WH1-TLN1 | LG Display | 11.6 | 1366×768 |
| LTN116AT07-B01 | Samsung | 11.6 | 1366×768 |
| N101L6-L02 | Innolux | 10.1 | 1024×600 |
| N116BGE-L11 | Innolux | 11.6 | 1366×768 |
| N116BGE-L32 | Innolux | 11.6 | 1366×768 |
