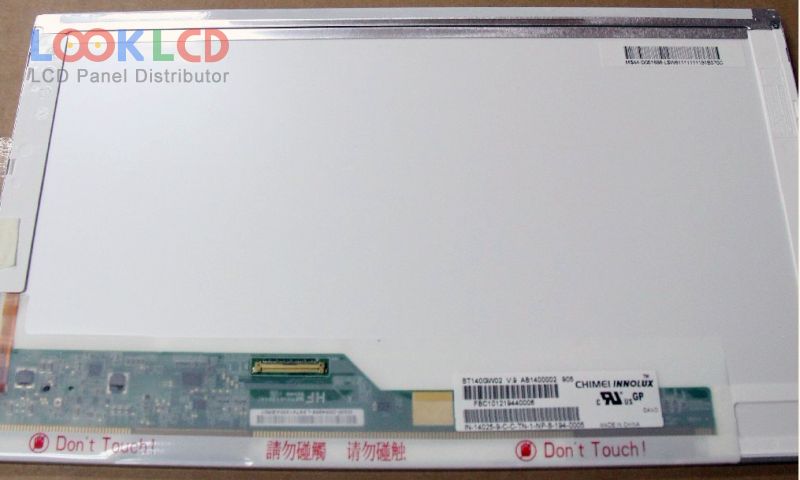

| PartNumber | BT140GW02 V.9 |
| Značka | Innolux |
| Velikost | 14.0 |
| aplikace | NBPC |
| Rozlišení | 1366×768 |
| Složení | LCM |
| Jas | 200 |
| CR | 500:1 |
| Barvy | 262K |
| Podsvícení | WLED |
| Rozhraní | LVDS |
| značka panelu | CHIMEI INNOLUX |
| panelový model | BT140GW02 V.9 11 Compatible model |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 14.0 inch |
| rozlišení | 1366(RGB)×768 , WXGA |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 309.399×173.952 mm |
| obrys | 323.5×192×5.2 mm |
| tvarový styl | Wedge (PCBA Bent, Depth ≥5.2mm) |
| povrch | Antiglare |
| jas | 200 cd/m² (Typ.) |
| kontrastní poměr | 500:1 (Typ.) |
| zobrazit barvy | 262K (6-bit), CIE193145% |
| Doba odezvy | 8 (Typ.)(G to G) |
| úhel pohledu | 40/40/15/30 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | 9S4PWLEDEmbedded (LED Driver) |
| signálové rozhraní | LVDS (2 ch, 6-bit), 40 pins |
| vstupní napětí | 3.3V (Typ.) |
| aplikace | NBPC |
| B140XW02 V2 | AUO | 14.0 | 1366×768 |
| BT140GW01 V.0 | Innolux | 14.0 | 1366×768 |
| BT140GW01 V.4 | Innolux | 14.0 | 1366×768 |
| BT140GW01 V.5 | Innolux | 14.0 | 1366×768 |
| BT140GW01 V.A | Innolux | 14.0 | 1366×768 |
| BT140GW02 V.0 | Innolux | 14.0 | 1366×768 |
| BT140GW02 V.2 | Innolux | 14.0 | 1366×768 |
| BT140GW02 V.9 | Innolux | 14.0 | 1366×768 |
| BT140GW03 V.2 | Innolux | 14.0 | 1366×768 |
| HB140WX1-501 | BOE | 14.0 | 1366×768 |
| CLAA141WB11 | CPT | 14.1 | 1280×800 |
| LP150X09-A5K1 | LG Display | 15.0 | 1024×768 |
| LP154WP2-TLA2 | LG Display | 15.4 | 1440×900 |
| LP171WU1-A4K2 | LG Display | 17.1 | 1920×1200 |
| LQ106K1LA01B | SHARP | 10.6 | 1280×768 |
| LT141DEQ8B00 | TOSHIBA | 14.1 | 1440×900 |
| LTD104EA5W | TOSHIBA | 10.4 | 1024×768 |
| LTN104S2-L01 | Samsung | 10.4 | 800×600 |
| LTN141BT04-002 | Samsung | 14.1 | 1440×900 |
| UB141X01 | UNIPAC | 14.1 | 1024×768 |
