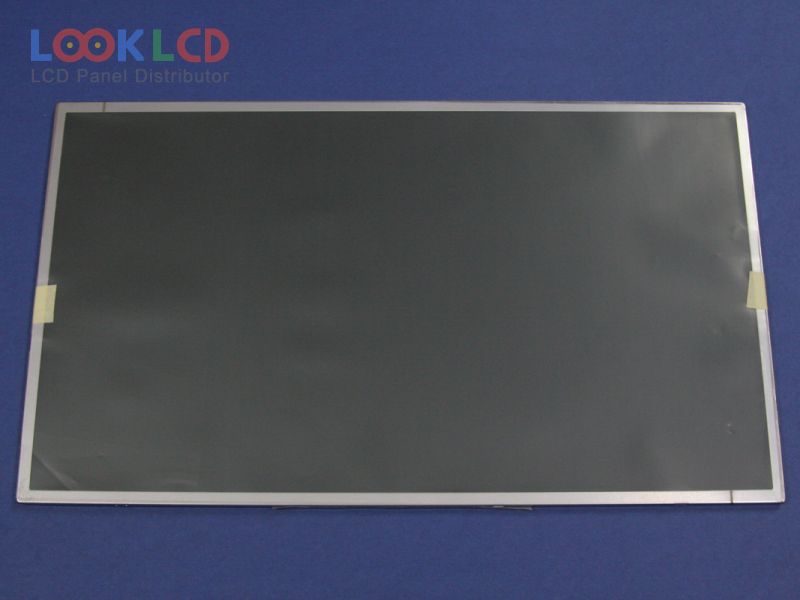

| PartNumber | CLAA156WA12 |
| Značka | CPT |
| Velikost | 15.6 |
| aplikace | NBPC |
| Rozlišení | 1366×768 |
| Složení | LCM |
| Jas | 220 |
| CR | 500:1 |
| Barvy | 262K |
| Podsvícení | WLED |
| Rozhraní | eDP |
| značka panelu | CPT |
| panelový model | CLAA156WA12 3 Compatible model |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 15.6 inch |
| rozlišení | 1366(RGB)×768 , WXGA |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 344.232×193.536 mm |
| obrys | 359.3×209.5×5.5 mm |
| tvarový styl | Wedge (PCBA Bent, Depth ≥5.2mm) |
| povrch | Antiglare |
| jas | 220 cd/m² (Typ.) |
| kontrastní poměr | 500:1 (Typ.) |
| zobrazit barvy | 262K (6-bit), CIE193160% |
| Doba odezvy | 3/5 (Typ.)(Tr/Td) |
| úhel pohledu | 45/45/20/35 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | WLEDEmbedded (LED Driver) |
| signálové rozhraní | eDP (1 Lane), 30 pins |
| vstupní napětí | 3.3V (Typ.) |
| aplikace | NBPC |
| CLAA101ND07CW | CPT | 10.1 | 1024×600 |
| CLAA104XA02CW | CPT | 10.4 | 1024×768 |
| CLAA133UA01 | CPT | 13.3 | 1600×900 |
| CLAA140WB11A | CPT | 14.0 | 1366×768 |
| CLAA150XP01Q | CPT | 15.0 | 1024×768 |
| CLAA154WB04A | CPT | 15.4 | 1280×800 |
| CLAA154WB05AN | CPT | 15.4 | 1280×800 |
| CLAA154WP05A | CPT | 15.4 | 1440×900 |
| CLAA170EA07 | CPT | 17.0 | 1280×1024 |
| CLAA185WA02 | CPT | 18.5 | 1366×768 |
| B140HAN01.2 | AUO | 14.0 | 1920×1080 |
| B141XG03 V2 | AUO | 14.1 | 1024×768 |
| LP101WH1-TLP1 | LG Display | 10.1 | 1366×768 |
| LP140WH1-TLC3 | LG Display | 14.0 | 1366×768 |
| LTD133EWDD | TOSHIBA | 13.3 | 1280×800 |
| LTN140AT01-G03 | Samsung | 14.0 | 1366×768 |
| LTN160AT02-H02 | Samsung | 16.0 | 1366×768 |
| N125HCE-GN1 | Innolux | 12.5 | 1920×1080 |
| N133B6-L01 | Innolux | 13.3 | 1366×768 |
| N156B6-L01 | Innolux | 15.6 | 1366×768 |
