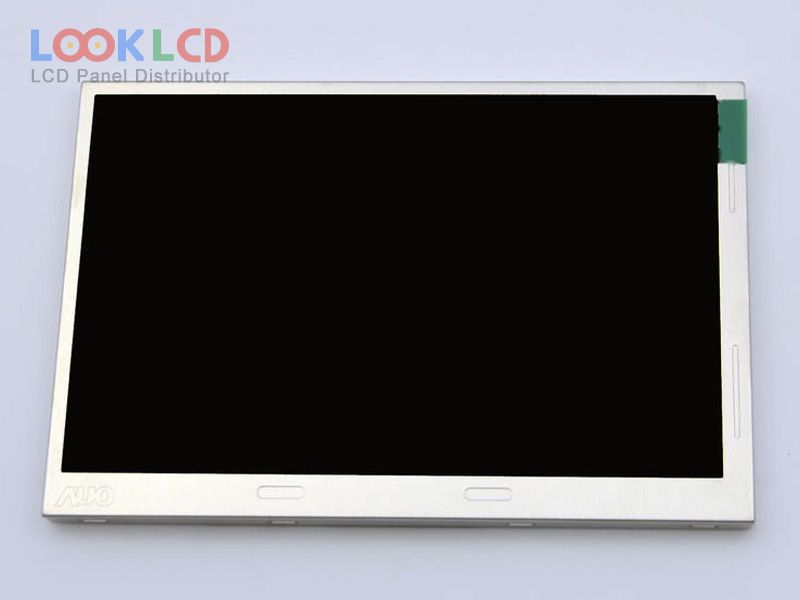

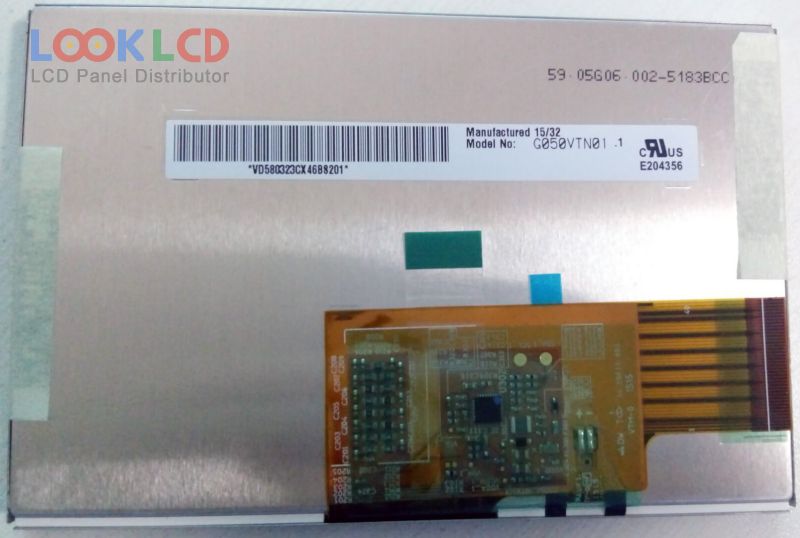

| PartNumber | G050VTN01.1 |
| Značka | AUO |
| Velikost | 5.0 |
| aplikace | IA |
| Rozlišení | 800×480 |
| Složení | LCM |
| Jas | 1000 |
| CR | 600:1 |
| Barvy | 16.2M |
| Podsvícení | WLED |
| Rozhraní | TTL |
| značka panelu | AUO |
| panelový model | G050VTN01.1 |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 5.0 inch |
| rozlišení | 800(RGB)×480 , WVGA |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 108×64.8 mm |
| obrys | 119.33×79.18×8 mm |
| povrch | Antiglare, Hard coating (3H) |
| jas | 1000 cd/m² (Typ.) |
| kontrastní poměr | 600:1 (Typ.) |
| zobrazit barvy | 16.2M (6-bit + Dithering), CIE193150% |
| Doba odezvy | 20 (Typ.)(Tr+Td) |
| úhel pohledu | 75/75/65/75 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | 7S2PWLEDWithout Driver |
| signálové rozhraní | TTL (1 ch, 8-bit), 40 pins |
| vstupní napětí | 3.3V (Typ.) |
| aplikace | IA |
