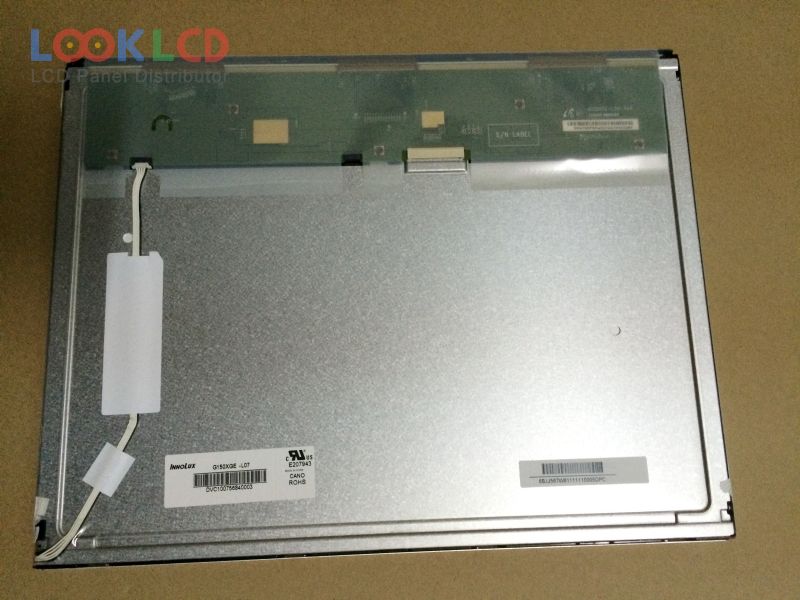

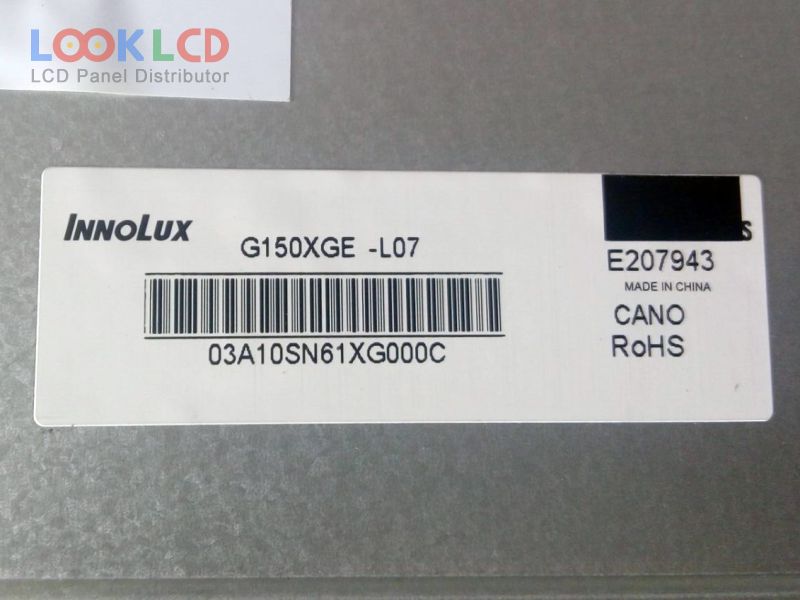

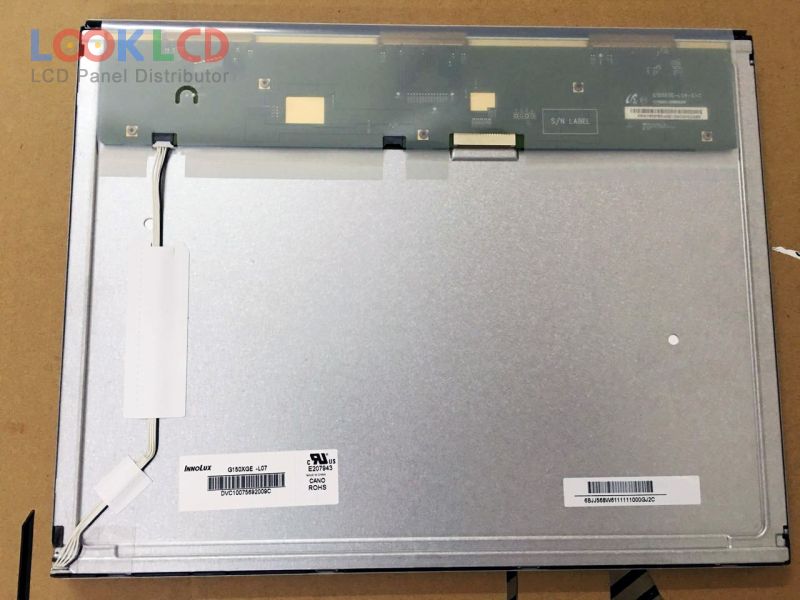

| PartNumber | G150XGE-L07 |
| Značka | Innolux |
| Velikost | 15.0 |
| aplikace | IA |
| Rozlišení | 1024×768 |
| Složení | LCM |
| Jas | 350 |
| CR | 700:1 |
| Barvy | 262K/16.2M |
| Podsvícení | WLED |
| Rozhraní | LVDS |
| značka panelu | INNOLUX |
| panelový model | G150XGE-L07 |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 15.0 inch |
| rozlišení | 1024(RGB)×768 , XGA |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 304.128×228.096 mm |
| obrys | 326.5×253.5×12 mm |
| povrch | Antiglare, Hard coating (3H) |
| jas | 350 cd/m² (Typ.) |
| kontrastní poměr | 700:1 (Typ.) |
| zobrazit barvy | 262K/16.2M (6-bit / 6-bit + FRC), CIE193160% |
| Doba odezvy | 5/11 (Typ.)(Tr/Td) |
| úhel pohledu | 80/80/70/70 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | WLEDEmbedded (LED Driver) |
| signálové rozhraní | LVDS (1 ch, 6/8-bit), 20 pins |
| vstupní napětí | 3.3V (Typ.) |
| aplikace | IA |
