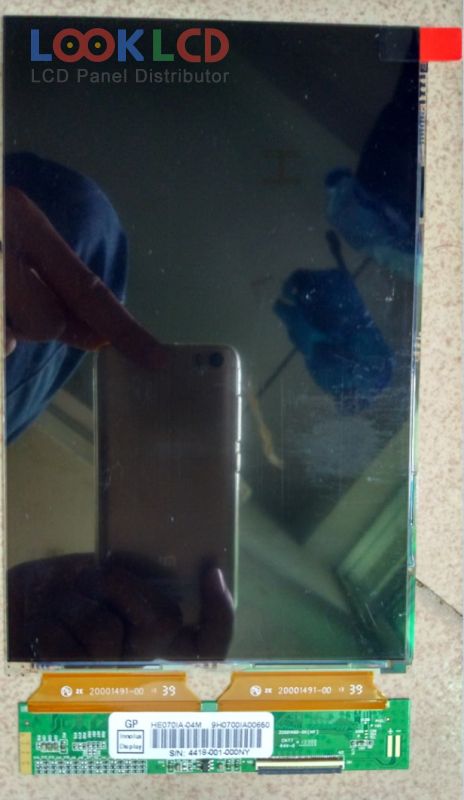

| PartNumber | HE070IA-04M |
| Značka | Innolux |
| Velikost | 7.0 |
| aplikace | PAD |
| Rozlišení | 800×1280 |
| Složení | CELL |
| Jas | 0 |
| CR | 800:1 |
| Barvy | 16.7M |
| Podsvícení | No B/L |
| Rozhraní | MIPI |
| značka panelu | INNOLUX |
| panelový model | HE070IA-04M |
| typ panelu | a-Si TFT-LCD , CELL |
| velikost panelu | 7.0 inch |
| rozlišení | 800(RGB)×1280 , WXGA |
| zobrazovací mód | IPS, Normally Black, Transmissive |
| aktivní oblast | 94.2×150.72 mm |
| obrys | 101.5×159.52×0.77 mm |
| povrch | Hard coating |
| hloubka skla | 0.25+0.25 mm |
| propustnost | 3.6% (Typ.)(with Polarizer) |
| kontrastní poměr | 800:1 (Typ.) |
| zobrazit barvy | 16.7M (8-bit), CIE193160% |
| Doba odezvy | 15/25 (Typ.)(Tr/Td) |
| úhel pohledu | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| signálové rozhraní | MIPI (4 data lanes), 40 pins |
| vstupní napětí | 3.3/8.8/22.0/-7.0V (Typ.)(VDD/AVDD/VGH/VGL) |
| aplikace | PAD |
| A070VW01 V2 | AUO | 7.0 | 800×480 |
| AT070TN94 | Innolux | 7.0 | 800×480 |
| BA070WS1-400 | BOE | 7.0 | 1024×600 |
| DLC0700OZG-T-1 | Other | 7.0 | 800×480 |
| HE070IA-04F | Innolux | 7.0 | 800×1280 |
| HE070IA-04M | Innolux | 7.0 | 800×1280 |
| HE070IA-04R | Innolux | 7.0 | 800×1280 |
| HSD070PFW3-D00 | HannStar | 7.0 | 1024×600 |
| HV070WS1-1E2 | HYDIS | 7.0 | 1024×600 |
| LD070WU2-SH01 | LG Display | 7.0 | 1200×1920 |
| B101EVT05.0 | AUO | 10.1 | 1280×800 |
| B101UAN07.2 | AUO | 10.1 | 1200×1920 |
| BP070WSA-400 | BOE | 7.0 | 1024×600 |
| HX121WX1-111 | HYDIS | 12.1 | 1280×800 |
| LP079X01-SMAV | LG Display | 7.9 | 768×1024 |
| LP097QX2-SPAV | LG Display | 9.7 | 1536×2048 |
| LTL070AL03 | Samsung | 7.0 | 800×1280 |
| N070ICE-GB2 | Innolux | 7.0 | 800×1280 |
| Q070LRE-LB1 | Innolux | 7.0 | 1024×600 |
| Q101IRE-GB1 | Innolux | 10.1 | 1280×800 |
