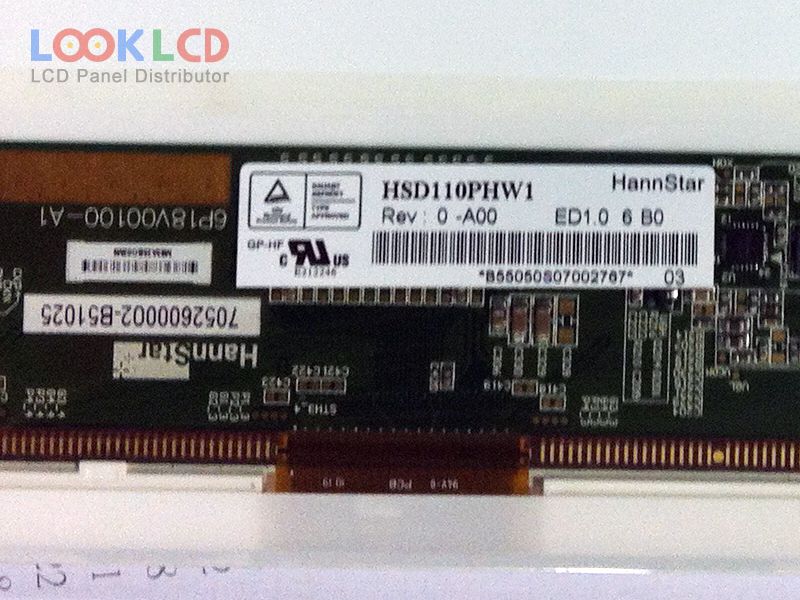

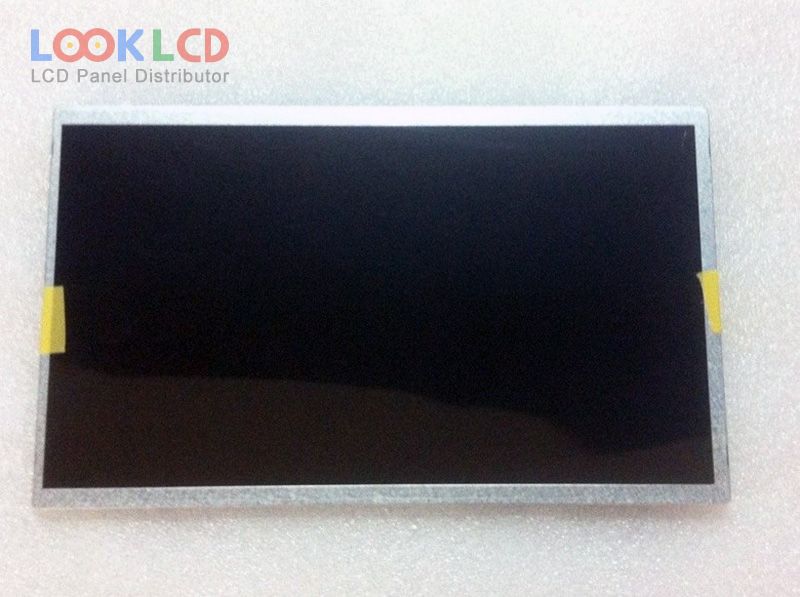

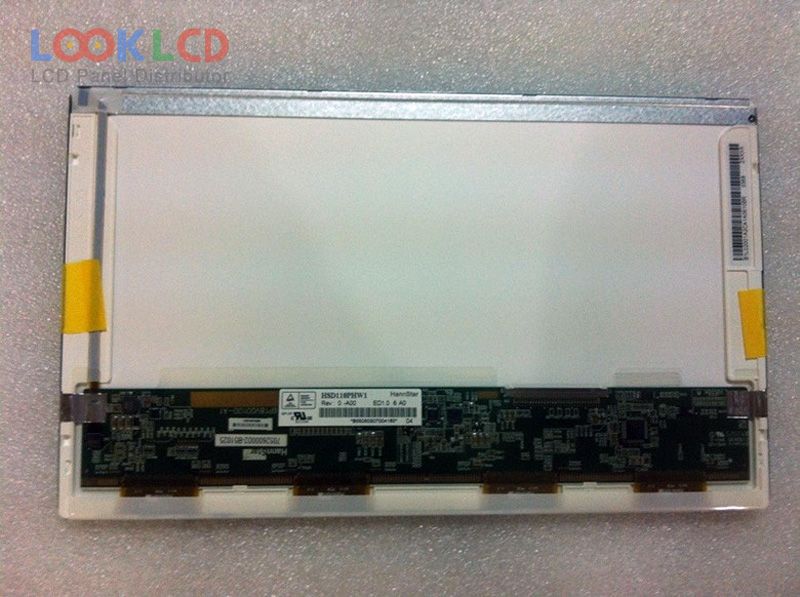

| PartNumber | HSD110PHW1-A00 |
| Značka | HannStar |
| Velikost | 11.0 |
| aplikace | NBPC |
| Rozlišení | 1366×768 |
| Složení | LCM |
| Jas | 220 |
| CR | 500:1 |
| Barvy | 262K |
| Podsvícení | WLED |
| Rozhraní | LVDS |
| značka panelu | HannStar |
| panelový model | HSD110PHW1-A00 |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 11.0 inch |
| rozlišení | 1366(RGB)×768 , WXGA |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 243.63×136.97 mm |
| obrys | 256×154.7×5.2 mm |
| povrch | Antiglare, Hard coating (3H) |
| jas | 220 cd/m² (Typ.) |
| kontrastní poměr | 500:1 (Typ.) |
| zobrazit barvy | 262K (6-bit), CIE193150% |
| Doba odezvy | 2.4/5.6 (Typ.)(Tr/Td) |
| úhel pohledu | 45/45/15/35 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | WLEDEmbedded (LED Driver) |
| signálové rozhraní | LVDS (1 ch, 6-bit), 30 pins |
| vstupní napětí | 3.3V (Typ.) |
| aplikace | NBPC |
| HSD110PHW1-A00 | HannStar | 11.0 | 1366×768 |
| HSD110PHW2-A00 | HannStar | 11.0 | 1366×768 |
| LQ110Y1LG12 | SHARP | 11.0 | 800×480 |
| LQ110Y3DG01 | SHARP | 11.0 | 800×480 |
| LQ110Y3DG02 | SHARP | 11.0 | 800×480 |
| B152EW01 V0 | AUO | 15.2 | 1280×854 |
| CLAA154WA01 | CPT | 15.4 | 1280×800 |
| LP133WX2-TLAA | LG Display | 13.3 | 1280×800 |
| LP154WU1-TLA2 | LG Display | 15.4 | 1920×1200 |
| LP171WU1-TLA5 | LG Display | 17.1 | 1920×1200 |
| LTD104EA5S | TOSHIBA | 10.4 | 1024×768 |
| LTD133KX2S | TOSHIBA | 13.3 | 1280×800 |
| LTM08C356F | TOSHIBA | 8.4 | 800×600 |
| N134B6-L04 | Innolux | 13.4 | 1366×768 |
| N173FGE-L21 | Innolux | 17.3 | 1600×900 |
