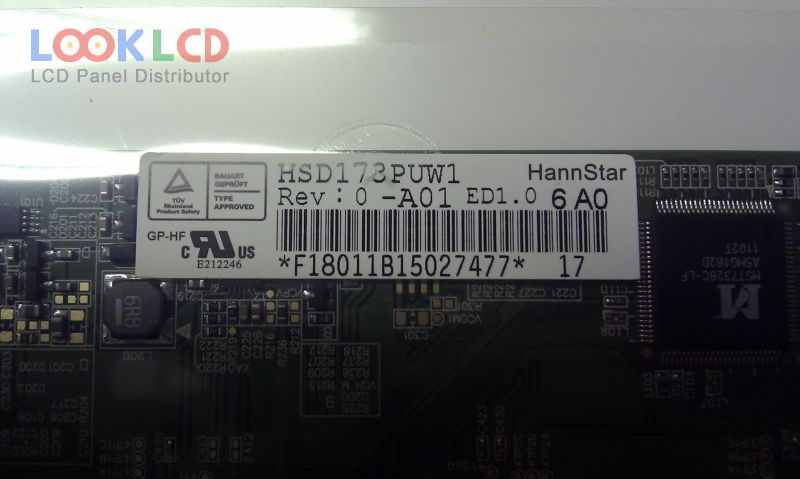

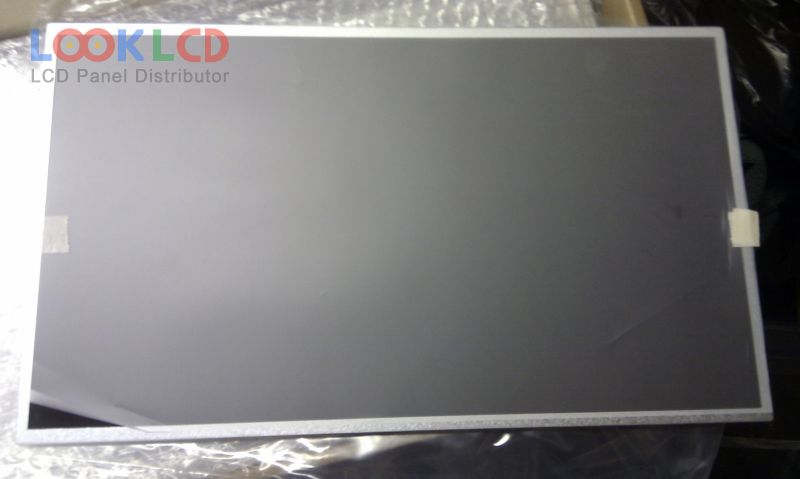

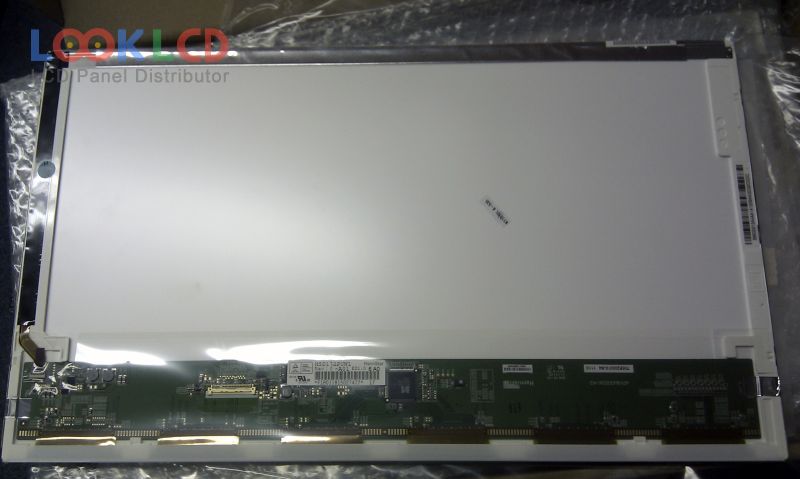

| PartNumber | HSD173PUW1-A01 |
| Značka | HannStar |
| Velikost | 17.3 |
| aplikace | NBPC |
| Rozlišení | 1920×1080 |
| Složení | LCM |
| Jas | 220 |
| CR | 500:1 |
| Barvy | 262K |
| Podsvícení | WLED |
| Rozhraní | LVDS |
| značka panelu | HannStar |
| panelový model | HSD173PUW1-A01 2 Compatible model |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 17.3 inch |
| rozlišení | 1920(RGB)×1080 , FHD |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 381.888×214.812 mm |
| obrys | 398.1×232.8×5.8 mm |
| tvarový styl | Wedge (PCBA Bent, Depth ≥5.2mm) |
| povrch | Glare (Haze 0%), Hard coating (3H) |
| jas | 220 cd/m² (Typ.) |
| kontrastní poměr | 500:1 (Typ.) |
| zobrazit barvy | 262K (6-bit) |
| Doba odezvy | 2.4/5.6 (Typ.))(Tr/Td) |
| úhel pohledu | 80/80/60/75 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | WLEDEmbedded (LED Driver) |
| signálové rozhraní | LVDS (2 ch, 6-bit), 40 pins |
| vstupní napětí | 3.3V (Typ.) |
| aplikace | NBPC |
