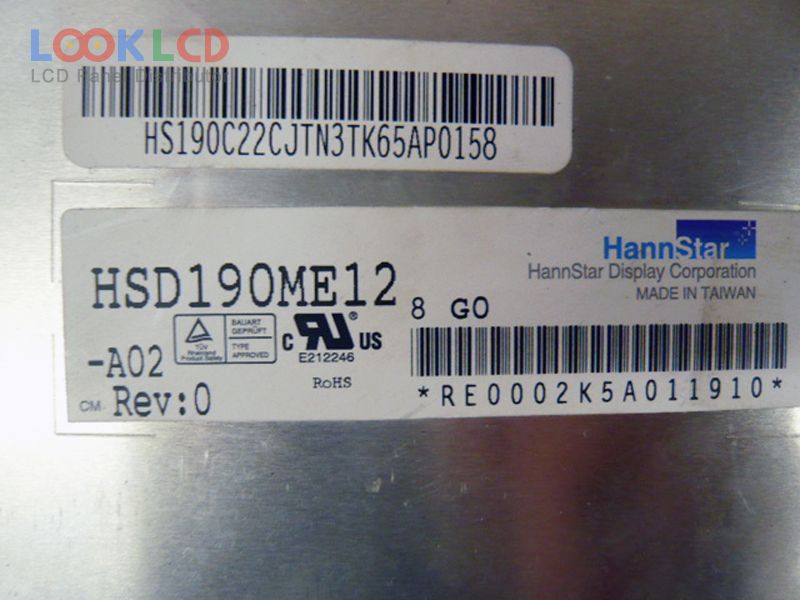

| PartNumber | HSD190ME12-A02 |
| Značka | HannStar |
| Velikost | 19.0 |
| aplikace | DMPC |
| Rozlišení | 1280×1024 |
| Složení | LCM |
| Jas | 250 |
| CR | 600:1 |
| Barvy | 16.2M |
| Podsvícení | CCFL |
| Rozhraní | LVDS |
| značka panelu | HannStar |
| panelový model | HSD190ME12-A02 |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 19.0 inch |
| rozlišení | 1280(RGB)×1024 , SXGA |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 376.32×301.056 mm |
| obrys | 404.2×330 mm |
| povrch | Antiglare, Hard coating (3H) |
| jas | 250 cd/m² (Typ.) |
| kontrastní poměr | 600:1 (Typ.) |
| zobrazit barvy | 16.2M (6-bit + FRC) |
| Doba odezvy | 12 (Typ.)(Tr+Td) |
| úhel pohledu | 70/70/65/65 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | 4 pcsCCFLWithout Driver |
| signálové rozhraní | LVDS (2 ch, 8-bit), 30 pins |
| vstupní napětí | 5.0V (Typ.) |
| aplikace | DMPC |
