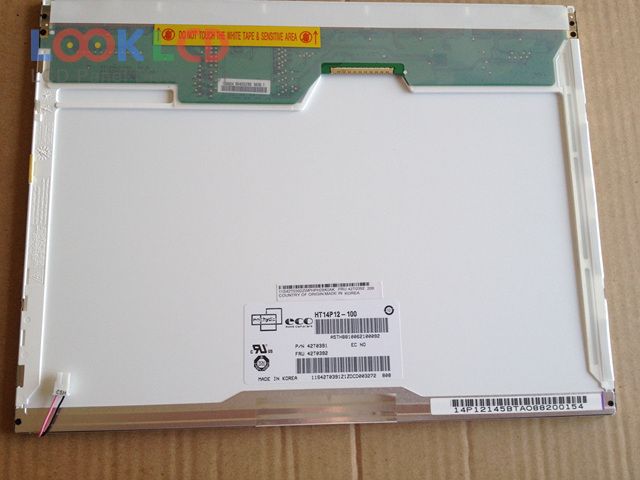

| PartNumber | HT14P12-100 |
| Značka | HYDIS |
| Velikost | 14.1 |
| aplikace | NBPC |
| Rozlišení | 1400×1050 |
| Složení | LCM |
| Jas | 150 |
| CR | 200:1 |
| Barvy | 262K |
| Podsvícení | CCFL |
| Rozhraní | LVDS |
| značka panelu | BOE HYDIS |
| panelový model | HT14P12-100 |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 14.1 inch |
| rozlišení | 1400(RGB)×1050 , SXGA+ |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 285.6×214.2 mm |
| obrys | 299×228×5.5 mm |
| tvarový styl | Wedge (PCBA Bent, Depth ≥5.2mm) |
| povrch | |
| jas | 150 cd/m² (Typ.) |
| kontrastní poměr | 200:1 (Min.) |
| zobrazit barvy | 262K (6-bit) |
| Doba odezvy | 25/25 (Max.)(Tr/Td) |
| úhel pohledu | 45/45/15/35 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | 1 pcsCCFLWithout Driver |
| signálové rozhraní | LVDS (2 ch, 6-bit), 30 pins |
| vstupní napětí | 3.3V (Typ.) |
| aplikace | NBPC |
