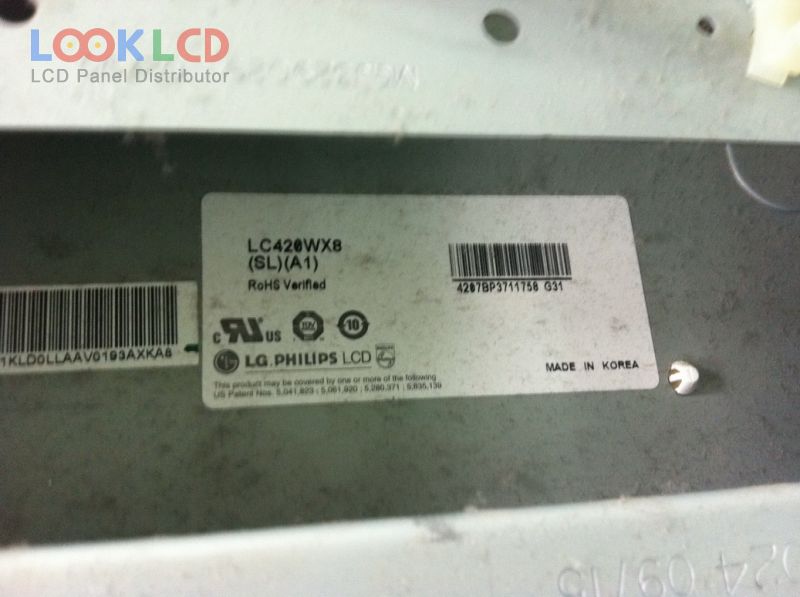

| PartNumber | LC420WX8-SLA1 |
| Značka | LG Display |
| Velikost | 42 |
| aplikace | LCTV |
| Rozlišení | 1366×768 |
| Složení | LCM |
| Jas | 500 |
| CR | 1000:1 |
| Barvy | 16.7M |
| Podsvícení | EEFL |
| Rozhraní | LVDS |
| značka panelu | LG.Philips LCD |
| panelový model | LC420WX8-SLA1 |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 42 inch |
| rozlišení | 1366(RGB)×768 , WXGA |
| zobrazovací mód | S-IPS, Normally Black, Transmissive |
| aktivní oblast | 930.25×523.01 mm |
| obrys | 983×576 mm |
| povrch | Antiglare (Haze 13%), Hard coating (3H) |
| jas | 500 cd/m² (Typ.) |
| kontrastní poměr | 1000:1 (Typ.) |
| zobrazit barvy | 16.7M (8-bit), CIE193173% |
| Doba odezvy | 5 (Typ.)(G to G); 10 (Typ.)(Tr+Td) |
| úhel pohledu | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | 18 pcsEEFLWithout Driver |
| signálové rozhraní | LVDS (1 ch, 8-bit), 30 pins |
| vstupní napětí | 12.0V (Typ.) |
| aplikace | LCTV |
