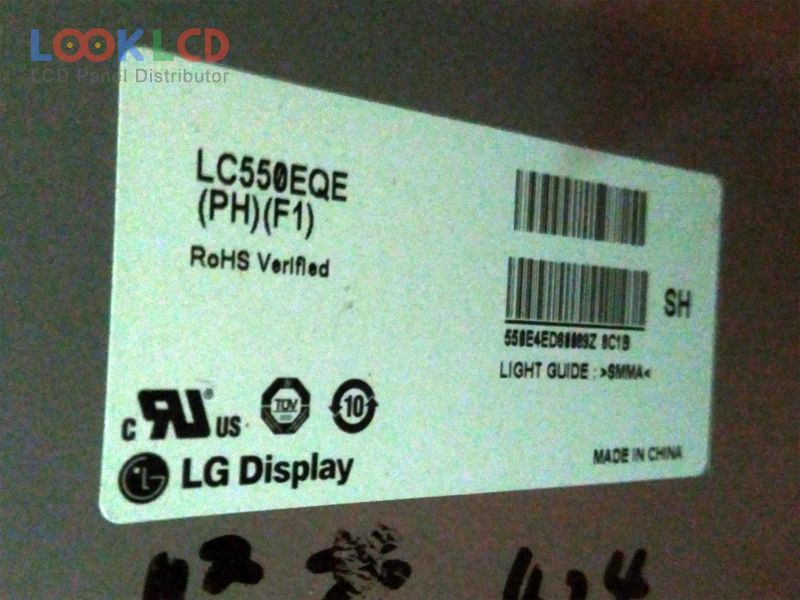

| PartNumber | LC550EQE-PHF1 |
| Značka | LG Display |
| Velikost | 55 |
| aplikace | LCTV |
| Rozlišení | 3840×2160 |
| Složení | LCM |
| Jas | 450 |
| CR | 1200:1 |
| Barvy | 16.7M/1.06B |
| Podsvícení | WLED |
| Rozhraní | V-by-One |
| značka panelu | LG Display |
| panelový model | LC550EQE-PHF1 |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 55 inch |
| rozlišení | 3840(RGB)×2160 , UHD |
| zobrazovací mód | IPS, Normally Black, Transmissive |
| aktivní oblast | 1209.6×680.4 mm |
| obrys | 1226×704.1×28.1 mm |
| povrch | Antiglare (Haze 1%), Hard coating (2H) |
| jas | 450 cd/m² (Typ.) |
| kontrastní poměr | 1200:1 (Typ.) |
| zobrazit barvy | 16.7M/1.06B (8-bit / 8-bit + Dithering), CIE193172% |
| Doba odezvy | 6 (Typ.)(G to G) |
| úhel pohledu | 89/89/89/89 (Min.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | WLEDWithout Driver |
| signálové rozhraní | V-by-One 8 lane, 55 pins |
| vstupní napětí | 12.0V (Typ.) |
| aplikace | LCTV |
