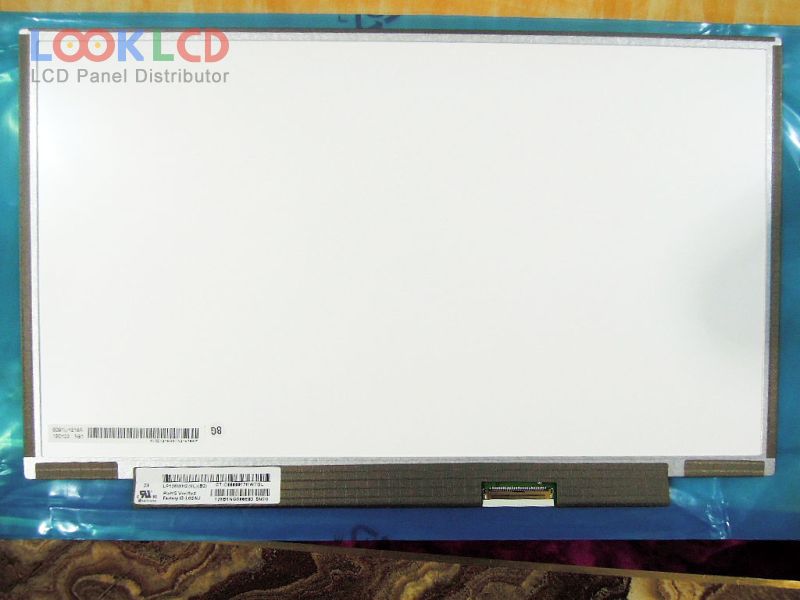

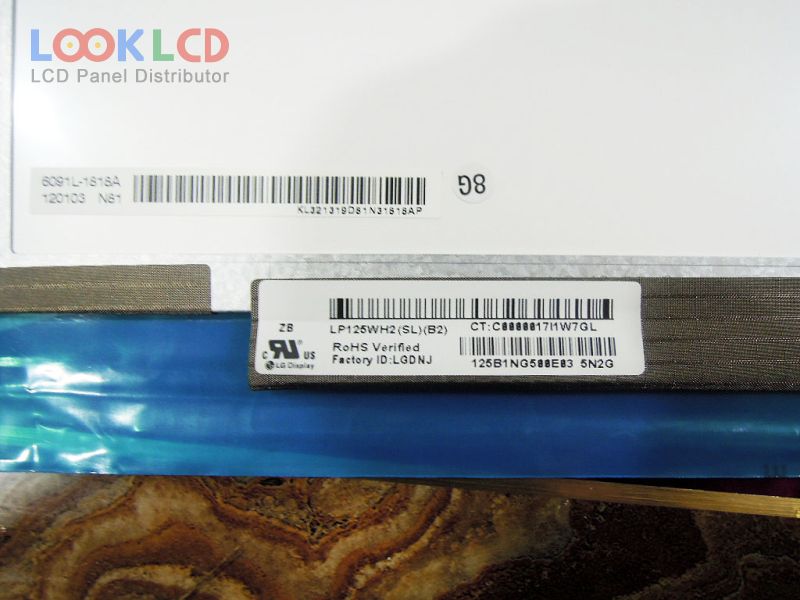

| PartNumber | LP125WH2-SLB2 |
| Značka | LG Display |
| Velikost | 12.5 |
| aplikace | NBPC |
| Rozlišení | 1366×768 |
| Složení | LCM |
| Jas | 300 |
| CR | 500:1 |
| Barvy | 262K |
| Podsvícení | WLED |
| Rozhraní | LVDS |
| značka panelu | LG Display |
| panelový model | LP125WH2-SLB2 |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 12.5 inch |
| rozlišení | 1366(RGB)×768 , WXGA |
| zobrazovací mód | IPS, Normally Black, Transmissive |
| aktivní oblast | 275.59×154.94 mm |
| obrys | 290.5×180.9×3.7 mm |
| tvarový styl | Flat (PCBA Flat, Depth 3.4~4.0mm) |
| povrch | Antiglare |
| jas | 300 cd/m² (Typ.) |
| kontrastní poměr | 500:1 (Min.) |
| zobrazit barvy | 262K (6-bit), CIE193150% |
| Doba odezvy | 35 (Typ.)(Tr+Td) |
| úhel pohledu | 80/80/80/80 (Min.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | WLEDEmbedded (LED Driver) |
| signálové rozhraní | LVDS (1 ch, 6-bit), 40 pins |
| vstupní napětí | 3.3V (Typ.) |
| aplikace | NBPC |
