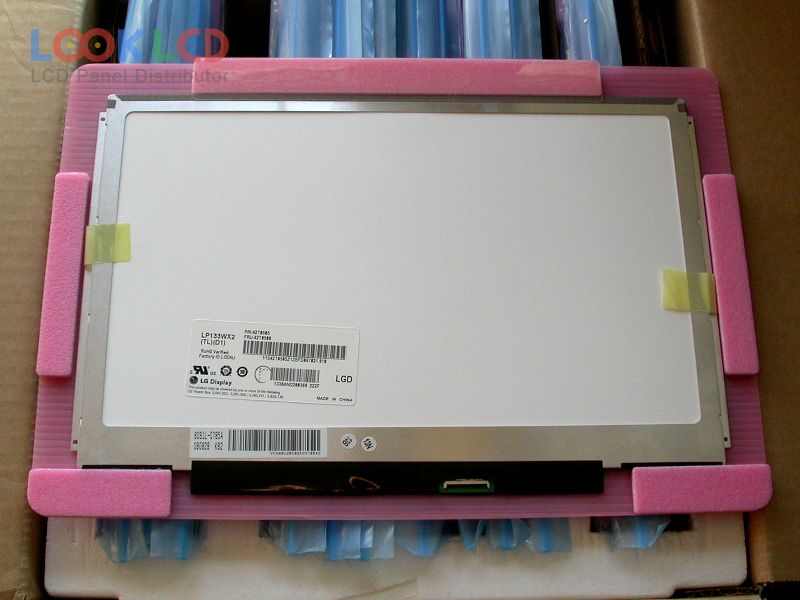

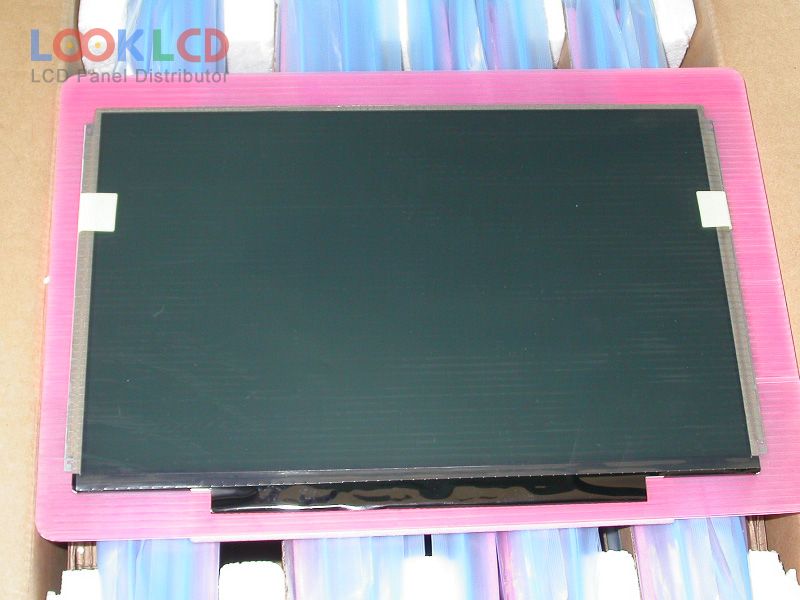

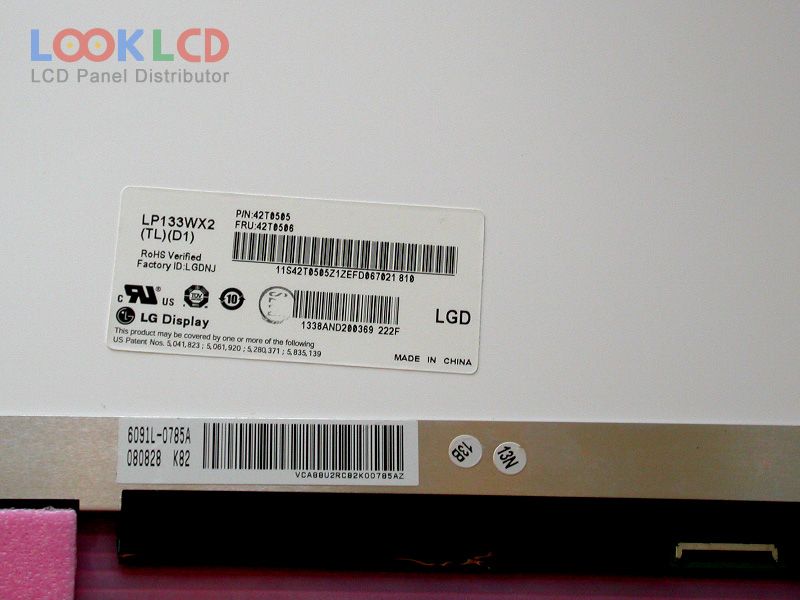

| PartNumber | LP133WX2-TLD1 |
| Značka | LG Display |
| Velikost | 13.3 |
| aplikace | NBPC |
| Rozlišení | 1280×800 |
| Složení | LCM |
| Jas | 300 |
| CR | 400:1 |
| Barvy | 262K |
| Podsvícení | WLED |
| Rozhraní | LVDS |
| značka panelu | LG Display |
| panelový model | LP133WX2-TLD1 |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 13.3 inch |
| rozlišení | 1280(RGB)×800 , WXGA |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 286.08×178.8 mm |
| obrys | 304×202.5×3.5 mm |
| tvarový styl | Flat (PCBA Flat, Depth 3.4~4.0mm) |
| povrch | Glare (Haze 0%), Hard coating (3H) |
| jas | 300 cd/m² (Typ.) |
| kontrastní poměr | 400:1 (Typ.) |
| zobrazit barvy | 262K (6-bit), CIE193145% |
| Doba odezvy | 16 (Typ.)(Tr+Td) |
| úhel pohledu | 45/45/15/35 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | 9S6PWLEDEmbedded (LED Driver) |
| signálové rozhraní | LVDS (1 ch, 6-bit), 40 pins |
| vstupní napětí | 3.3V (Typ.) |
| aplikace | NBPC |
