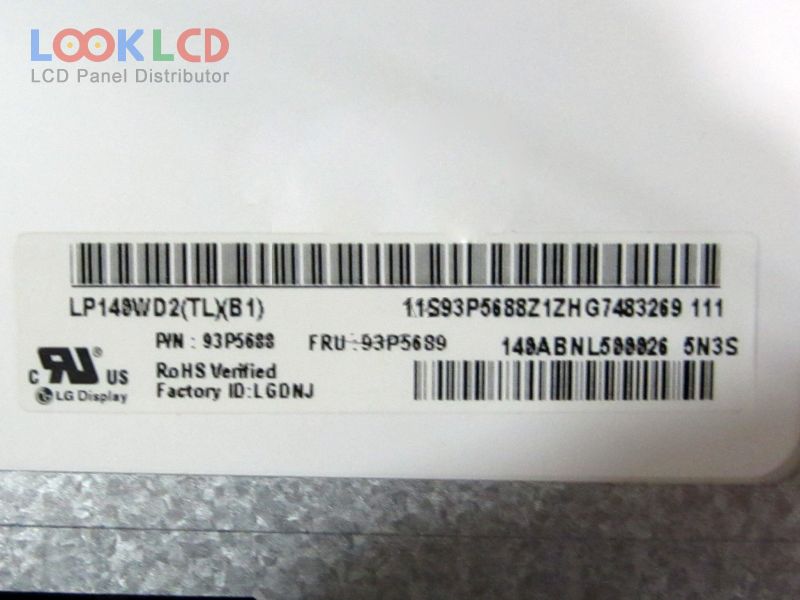

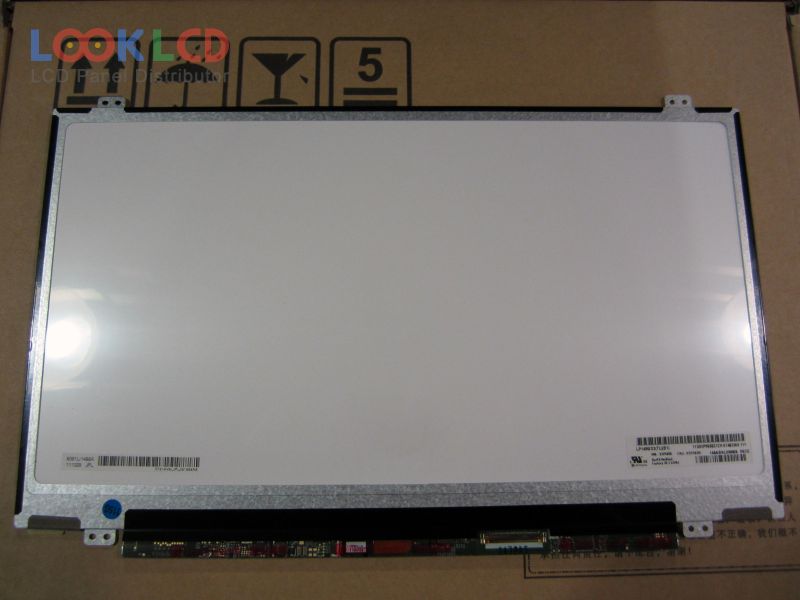

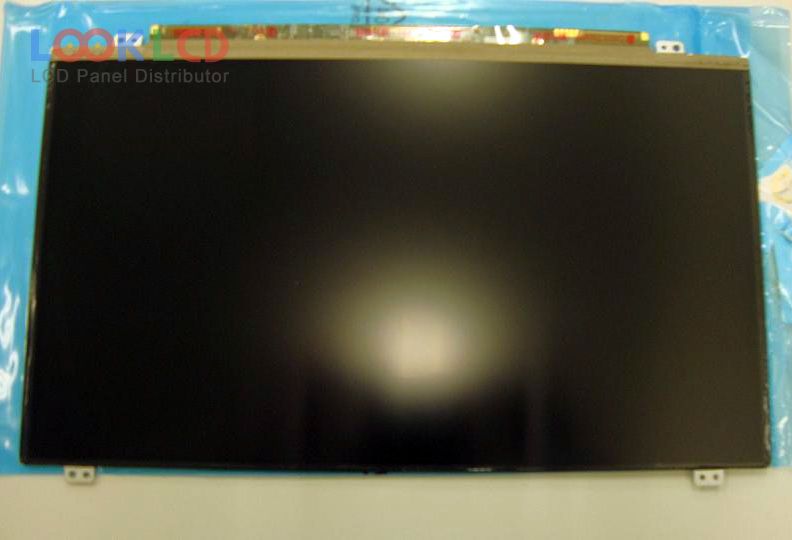

| PartNumber | LP140WD2-TLB1 |
| Značka | LG Display |
| Velikost | 14.0 |
| aplikace | NBPC |
| Rozlišení | 1600×900 |
| Složení | LCM |
| Jas | 250 |
| CR | 350:1 |
| Barvy | 262K |
| Podsvícení | WLED |
| Rozhraní | LVDS |
| značka panelu | LG Display |
| panelový model | LP140WD2-TLB1 4 Compatible model |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 14.0 inch |
| rozlišení | 1600(RGB)×900 , HD+ |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 309.12×173.88 mm |
| obrys | 320.4×204.6×3.6 mm |
| tvarový styl | Flat (PCBA Flat, Depth 3.4~4.0mm) |
| povrch | Antiglare, Hard coating (3H) |
| jas | 250 cd/m² (Typ.) |
| kontrastní poměr | 350:1 (Typ.) |
| zobrazit barvy | 262K (6-bit), CIE193145% |
| Doba odezvy | 16 (Typ.)(Tr+Td) |
| úhel pohledu | 45/45/15/35 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | WLEDEmbedded (LED Driver) |
| signálové rozhraní | LVDS (2 ch, 6-bit), 40 pins |
| vstupní napětí | 3.3V (Typ.) |
| aplikace | NBPC |
