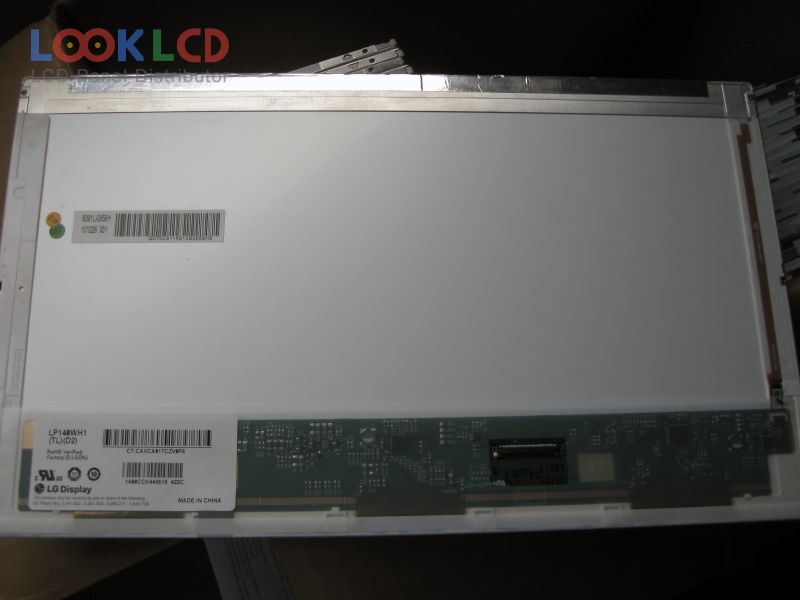

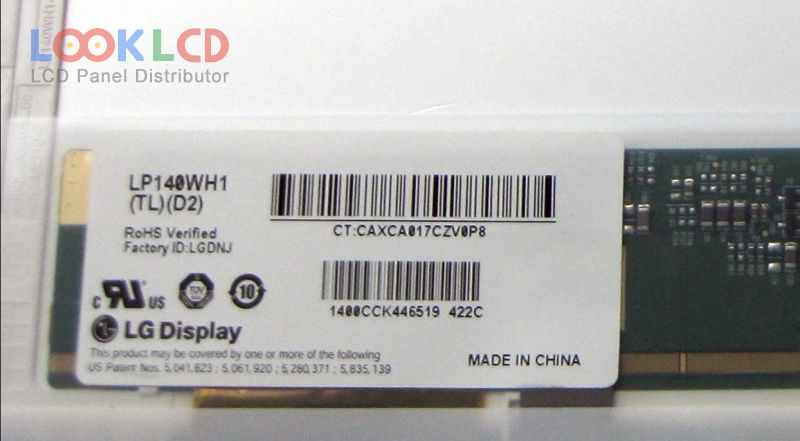

| PartNumber | LP140WH1-TLD2 |
| Značka | LG Display |
| Velikost | 14.0 |
| aplikace | NBPC |
| Rozlišení | 1366×768 |
| Složení | LCM |
| Jas | |
| CR | |
| Barvy | 262K |
| Podsvícení | WLED |
| Rozhraní | LVDS |
| značka panelu | LG Display |
| panelový model | LP140WH1-TLD2 |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 14.0 inch |
| rozlišení | 1366(RGB)×768 , WXGA |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 309.399×173.952 mm |
| tvarový styl | Wedge (PCBA Bent, Depth ≥5.2mm) |
| povrch | |
| jas | |
| kontrastní poměr | |
| zobrazit barvy | 262K (6-bit), CIE193160% |
| Doba odezvy | |
| úhel pohledu | |
| frekvence | 60Hz |
| typ lampy | WLED |
| signálové rozhraní | LVDS (1 ch, 6-bit) |
| aplikace | NBPC |
