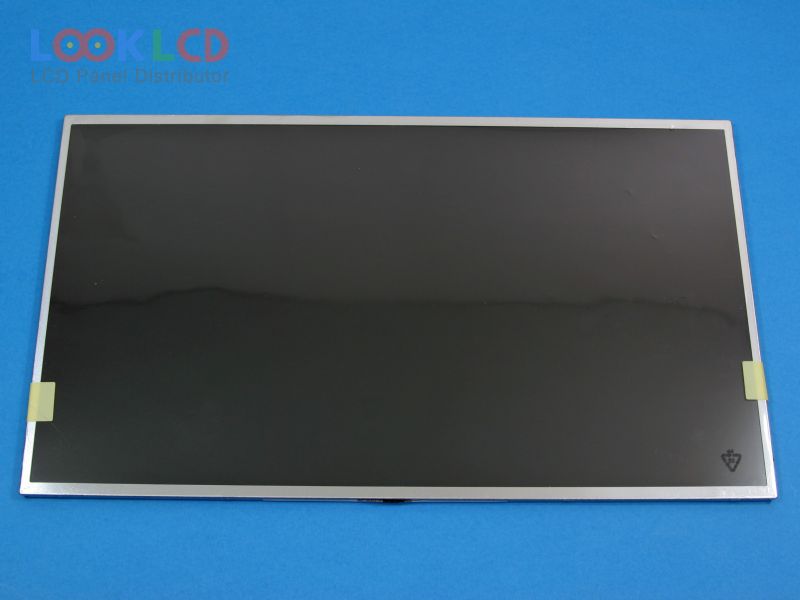

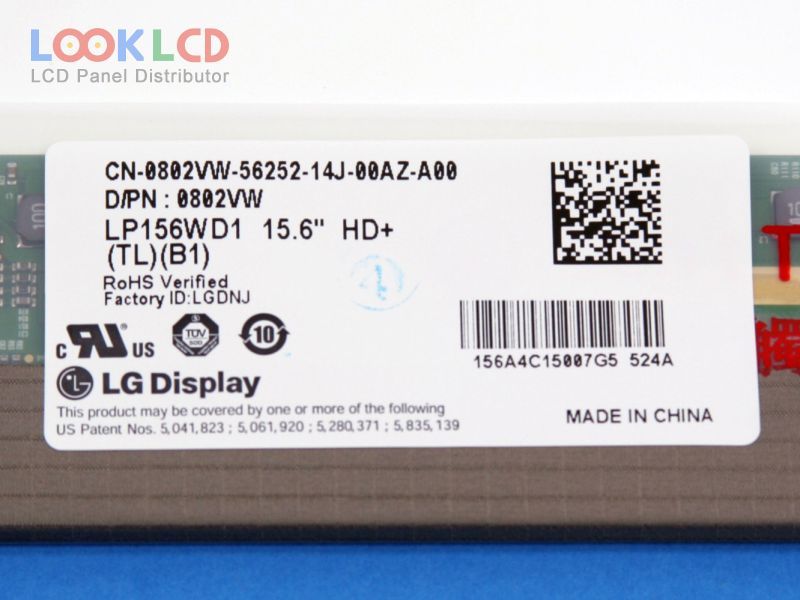

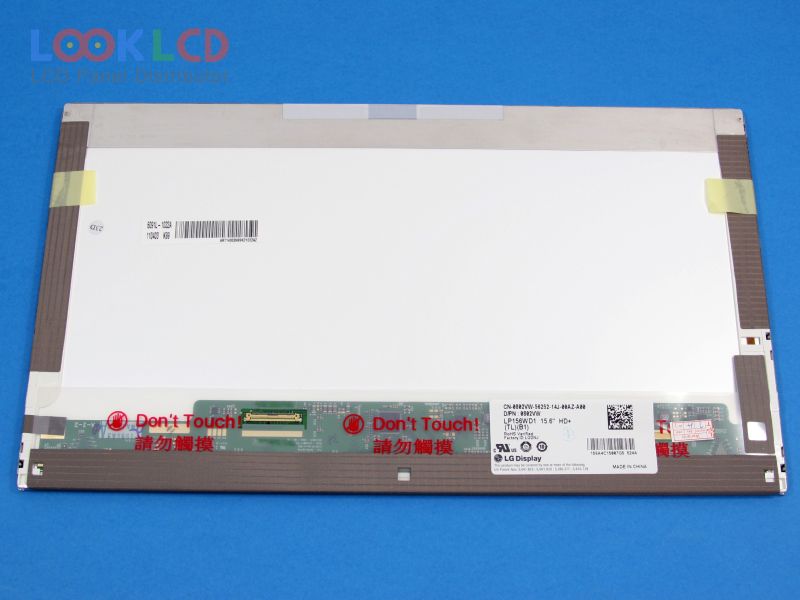

| PartNumber | LP156WD1-TLB1 |
| Značka | LG Display |
| Velikost | 15.6 |
| aplikace | NBPC |
| Rozlišení | 1600×900 |
| Složení | LCM |
| Jas | 250 |
| CR | 500:1 |
| Barvy | 262K |
| Podsvícení | WLED |
| Rozhraní | LVDS |
| značka panelu | LG Display |
| panelový model | LP156WD1-TLB1 10 Compatible model |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 15.6 inch |
| rozlišení | 1600(RGB)×900 , HD+ |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 344.16×193.59 mm |
| obrys | 359.3×209.5×5.7 mm |
| tvarový styl | Wedge (PCBA Bent, Depth ≥5.2mm) |
| povrch | Antiglare, Hard coating (3H) |
| jas | 250 cd/m² (Typ.) |
| kontrastní poměr | 500:1 (Min.) |
| zobrazit barvy | 262K (6-bit), CIE193160% |
| Doba odezvy | 8 (Typ.)(Tr+Td) |
| úhel pohledu | 60/60/50/50 (Min.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | WLEDEmbedded (LED Driver) |
| signálové rozhraní | LVDS (2 ch, 6-bit), 40 pins |
| vstupní napětí | 3.3V (Typ.) |
| aplikace | NBPC |
