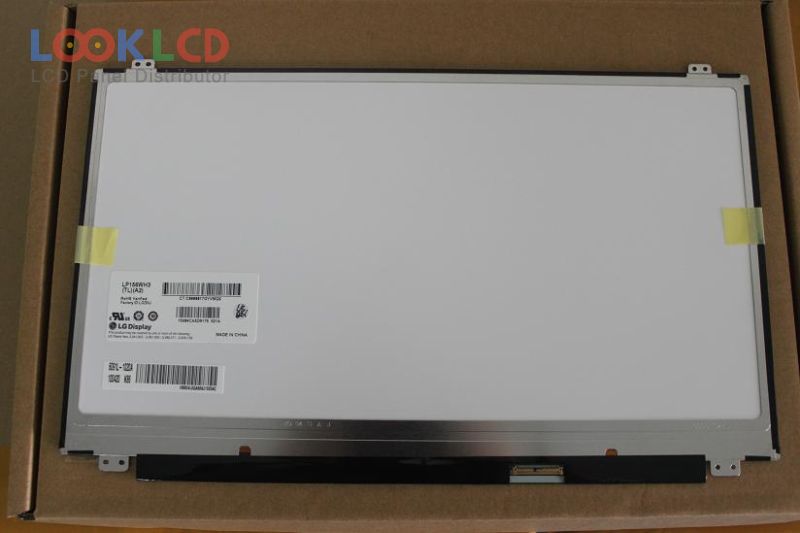

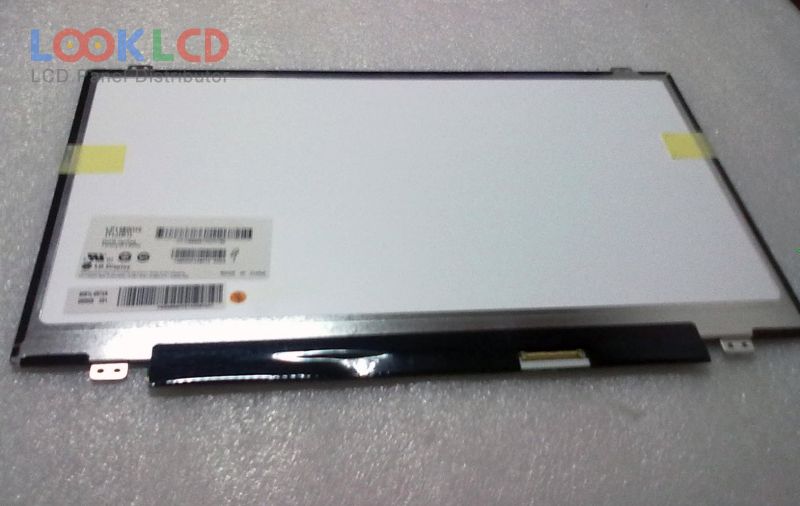

| PartNumber | LP156WH3-TLA2 |
| Značka | LG Display |
| Velikost | 15.6 |
| aplikace | NBPC |
| Rozlišení | 1366×768 |
| Složení | LCM |
| Jas | 200 |
| CR | 500:1 |
| Barvy | 262K |
| Podsvícení | WLED |
| Rozhraní | LVDS |
| značka panelu | LG Display |
| panelový model | LP156WH3-TLA2 21 Compatible model |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 15.6 inch |
| rozlišení | 1366(RGB)×768 , WXGA |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 344.232×193.536 mm |
| obrys | 359.5×223.4×3.8 mm |
| tvarový styl | Flat (PCBA Flat, Depth 3.4~4.0mm) |
| povrch | Glare (Haze 0%), Hard coating (3H) |
| jas | 200 cd/m² (Typ.) |
| kontrastní poměr | 500:1 (Typ.) |
| zobrazit barvy | 262K (6-bit), CIE193145% |
| Doba odezvy | 16 (Typ.)(Tr+Td) |
| úhel pohledu | 40/40/10/30 (Min.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | 7S6PWLEDEmbedded (LED Driver) |
| signálové rozhraní | LVDS (1 ch, 6-bit), 40 pins |
| vstupní napětí | 3.3V (Typ.) |
| aplikace | NBPC |
| LP156WD1-TLA1 | LG Display | 15.6 | 1600×900 |
| LP156WD1-TPB1 | LG Display | 15.6 | 1600×900 |
| LP156WH1-TLA3 | LG Display | 15.6 | 1366×768 |
| LP156WH2-TLB1 | LG Display | 15.6 | 1366×768 |
| LP156WH2-TLF1 | LG Display | 15.6 | 1366×768 |
| LP156WH2-TLQB | LG Display | 15.6 | 1366×768 |
| LP156WH4-TPP1 | LG Display | 15.6 | 1366×768 |
| LP156WHA-SLA2 | LG Display | 15.6 | 1366×768 |
| LP156WHB-TLA1 | LG Display | 15.6 | 1366×768 |
| LP156WHU-TPB1 | LG Display | 15.6 | 1366×768 |
| HT14X13-102 | HYDIS | 14.1 | 1024×768 |
| LP133WF1-SPA1 | LG Display | 13.3 | 1920×1080 |
| LP140WH2-TLT1 | LG Display | 14.0 | 1366×768 |
| LP140WH4-TLA1 | LG Display | 14.0 | 1366×768 |
| LP141WP1-TLC1 | LG Display | 14.1 | 1440×900 |
| LP141WXV-SLA2 | LG Display | 14.1 | 1280×800 |
| LP154WE2-TLB1 | LG Display | 15.4 | 1680×1050 |
| LT121DEE3P00 | TOSHIBA | 12.1 | 1024×768 |
| LTN121X1-L02 | Samsung | 12.1 | 1024×768 |
| N154C6-L04 | Innolux | 15.4 | 1440×900 |
