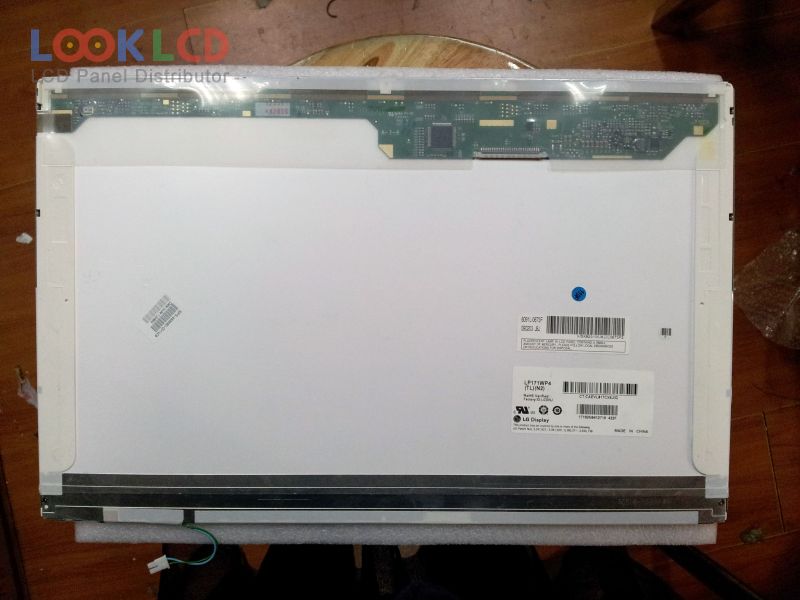

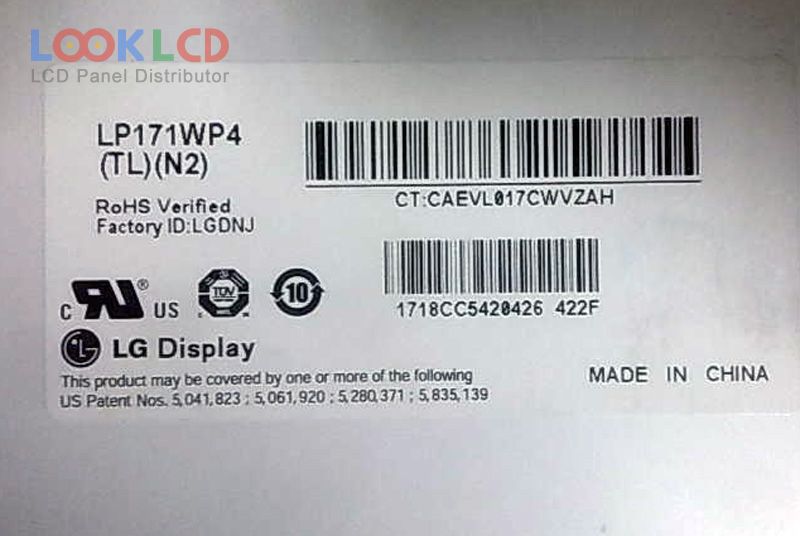

| PartNumber | LP171WP4-TLN2 |
| Značka | LG Display |
| Velikost | 17.1 |
| aplikace | NBPC |
| Rozlišení | 1440×900 |
| Složení | LCM |
| Jas | 200 |
| CR | 500:1 |
| Barvy | 262K |
| Podsvícení | CCFL |
| Rozhraní | LVDS |
| značka panelu | LG Display |
| panelový model | LP171WP4-TLN2 9 Compatible model |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 17.1 inch |
| rozlišení | 1440(RGB)×900 , WXGA+ |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 367.2×229.5 mm |
| obrys | 382.2×244.5×6.5 mm |
| tvarový styl | Wedge (PCBA Bent, Depth ≥5.2mm) |
| povrch | Glare (Haze 0%), Hard coating (2H) |
| jas | 200 cd/m² (Typ.) |
| kontrastní poměr | 500:1 (Typ.) |
| zobrazit barvy | 262K (6-bit), CIE193145% |
| Doba odezvy | 16 (Typ.)(Tr+Td) |
| úhel pohledu | 45/45/15/35 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | 1 pcsCCFLWithout Driver |
| signálové rozhraní | LVDS (2 ch, 6-bit), 30 pins |
| vstupní napětí | 3.3V (Typ.) |
| aplikace | NBPC |
| LP171WE2-TLA2 | LG Display | 17.1 | 1680×1050 |
| LP171WE3-TLA5 | LG Display | 17.1 | 1680×1050 |
| LP171WP4-TLN2 | LG Display | 17.1 | 1440×900 |
| LP171WP4-TLQ1 | LG Display | 17.1 | 1440×900 |
| LP171WP9-TLB2 | LG Display | 17.1 | 1440×900 |
| LP171WU1-A4K2 | LG Display | 17.1 | 1920×1200 |
| LP171WU1-A4K3 | LG Display | 17.1 | 1920×1200 |
| LP171WU5-TLA1 | LG Display | 17.1 | 1920×1200 |
| LP171WU5-TLA2 | LG Display | 17.1 | 1920×1200 |
| LP171WX2-TLB2 | LG Display | 17.1 | 1440×900 |
| B140HAT02.0 | AUO | 14.0 | 1920×1080 |
| HV150UX1-100 | HYDIS | 15.0 | 1600×1200 |
| LP140WH1-TLD1 | LG Display | 14.0 | 1366×768 |
| LP140WH2-TLE2 | LG Display | 14.0 | 1366×768 |
| LP141WX3-TLN4 | LG Display | 14.1 | 1280×800 |
| LTN140AT07-T01 | Samsung | 14.0 | 1366×768 |
| LTN154P1-L03 | Samsung | 15.4 | 1680×1050 |
| M116NWR1 R0 | IVO | 11.6 | 1366×768 |
| N134B6-L01 | Innolux | 13.4 | 1366×768 |
| N140BGE-E33 | Innolux | 14.0 | 1366×768 |
