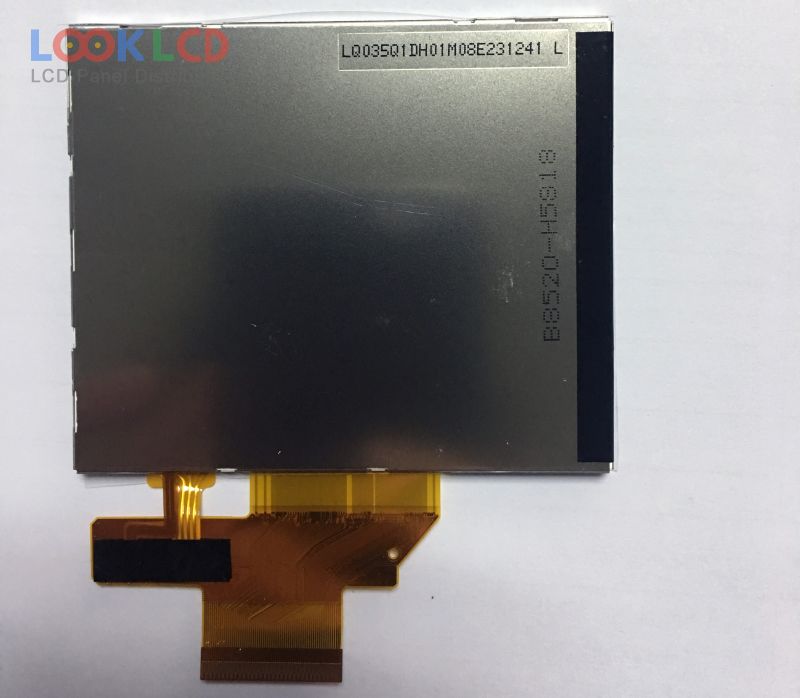

| PartNumber | LQ035Q1DH01 |
| Značka | SHARP |
| Velikost | 3.5 |
| aplikace | DSC |
| Rozlišení | 320×240 |
| Složení | LCM |
| Jas | 400 |
| CR | 300:1 |
| Barvy | 262K |
| Podsvícení | WLED |
| Rozhraní | TTL |
| značka panelu | SHARP |
| panelový model | LQ035Q1DH01 |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 3.5 inch |
| rozlišení | 320(RGB)×240 , QVGA |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 70.56×52.92 mm |
| obrys | 76.9×63.9×4.7 mm |
| povrch | Antiglare, Hard coating (2H) |
| jas | 400 cd/m² (Typ.) |
| kontrastní poměr | 300:1 (Typ.) |
| zobrazit barvy | 262K (6-bit) |
| Doba odezvy | 30/30 (Typ.)(Tr/Td) |
| úhel pohledu | 45/45/20/55 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | 7S1PWLEDWithout Driver |
| signálové rozhraní | Parallel RGB (1 ch, 6-bit) + SPI, 67 pins |
| vstupní napětí | 3.3/3.3V (Typ.)(VDDIO/VCI) |
| aplikace | DSC |
