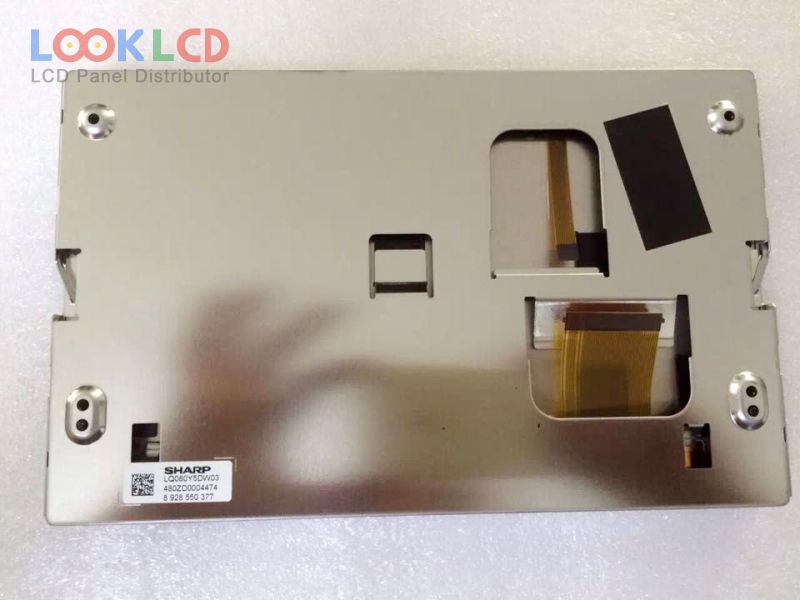

| PartNumber | LQ080Y5DG03 |
| Značka | SHARP |
| Velikost | 8.0 |
| aplikace | CNS |
| Rozlišení | 800×480 |
| Složení | LCM |
| Jas | 540 |
| CR | |
| Barvy | 262K |
| Podsvícení | WLED |
| Rozhraní | TTL |
| značka panelu | SHARP |
| panelový model | LQ080Y5DG03 |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 8.0 inch |
| rozlišení | 800(RGB)×480 , WVGA |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 174×104.4 mm |
| obrys | 190×120 mm |
| povrch | |
| jas | 540 cd/m² (Typ.) |
| kontrastní poměr | |
| zobrazit barvy | 262K (6-bit), CIE193165% |
| Doba odezvy | |
| úhel pohledu | |
| typ lampy | WLED |
| signálové rozhraní | Parallel RGB (1 ch, 6-bit) |
| aplikace | CNS |
| LQ080T3AG01 | SHARP | 8.0 | 480×234 |
| LQ080T5GG01B | SHARP | 8.0 | 480×234 |
| LQ080V3DG01 | SHARP | 8.0 | 640×480 |
| LQ080Y5CGQ1 | SHARP | 8.0 | 800×480 |
| LQ080Y5DG02 | SHARP | 8.0 | 800×480 |
| LQ080Y5DR01 | SHARP | 8.0 | 800×480 |
| LQ080Y5DW03 | SHARP | 8.0 | 800×480 |
| LQ080Y5DW30 | SHARP | 8.0 | 800×480 |
| LQ080Y5DZ03 | SHARP | 8.0 | 800×480 |
| LQ080Y5DZ30A | SHARP | 8.0 | 800×480 |
| AT102TN03 V.8 | Innolux | 10.2 | 800×480 |
| C070FW02 V0 | AUO | 7.0 | 480×234 |
| C070VW02 V1 | AUO | 7.0 | 800×480 |
| LA070WV5-SL01 | LG Display | 7.0 | 800×480 |
| LQ058T5DG30 | SHARP | 5.8 | 480×240 |
| LQ058T5DR02 | SHARP | 5.8 | 480×272 |
| LTA070B052F | TOSHIBA | 7.0 | 800×480 |
| M090SWP1 R0 | IVO | 9.0 | 800×480 |
| PM061WX1 | E Ink | 6.1 | 800×480 |
| YX-CM043-QN05-56 | 4.3 | 480×272 |
