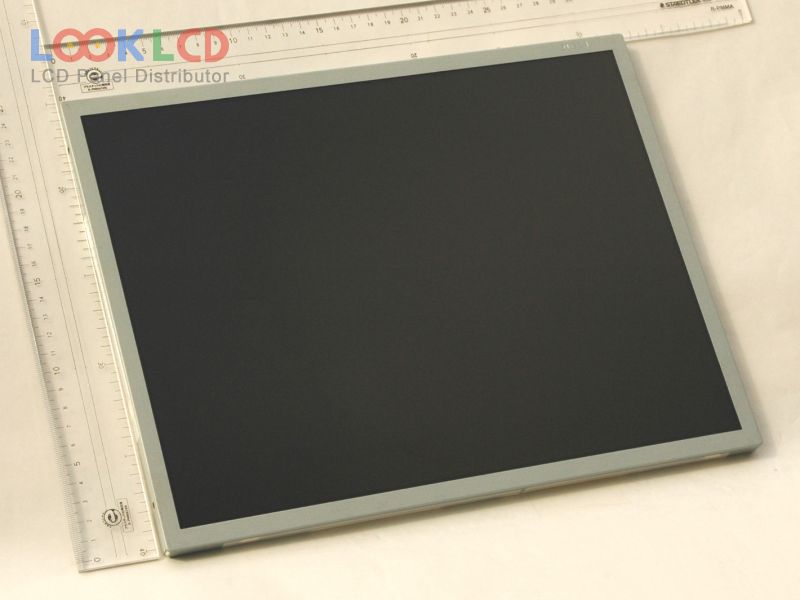

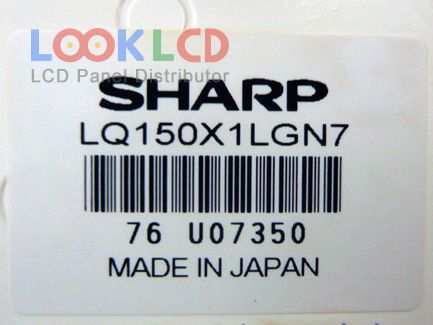

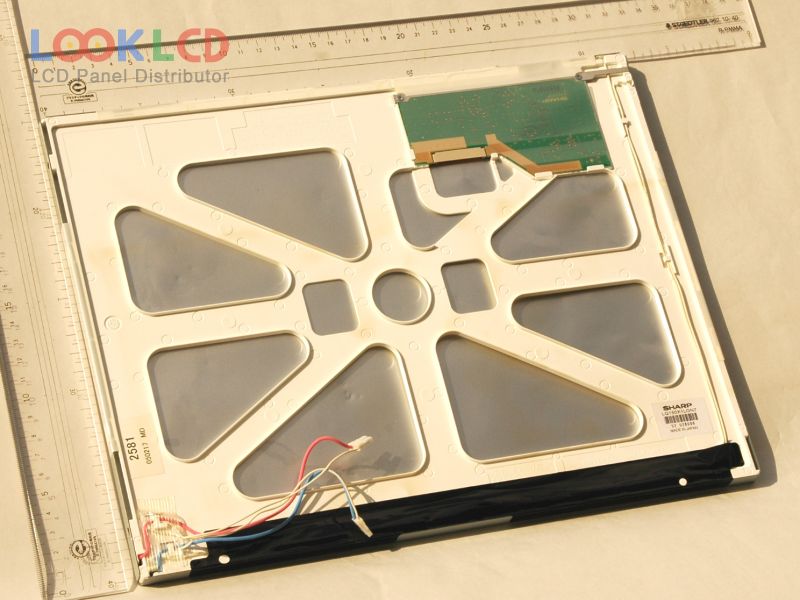

| PartNumber | LQ150X1LGN7 |
| Značka | SHARP |
| Velikost | 15.0 |
| aplikace | |
| Rozlišení | 1024×768 |
| Složení | LCM |
| Jas | 260 |
| CR | 350:1 |
| Barvy | 16.2M |
| Podsvícení | CCFL |
| Rozhraní | LVDS |
| značka panelu | SHARP |
| panelový model | LQ150X1LGN7 |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 15.0 inch |
| rozlišení | 1024(RGB)×768 , XGA |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 304.128×228.096 mm |
| obrys | 326×252×11.5 mm |
| povrch | Antiglare (Haze 28%), Hard coating (2H) |
| jas | 260 cd/m² (Typ.) |
| kontrastní poměr | 350:1 (Typ.) |
| zobrazit barvy | 16.2M (6-bit + FRC) |
| Doba odezvy | 5/20 (Typ.)(Tr/Td) |
| úhel pohledu | 60/60/45/55 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | 2 pcsCCFLWithout Driver |
| signálové rozhraní | LVDS (1 ch, 8-bit), 20 pins |
| vstupní napětí | 3.3V (Typ.) |
