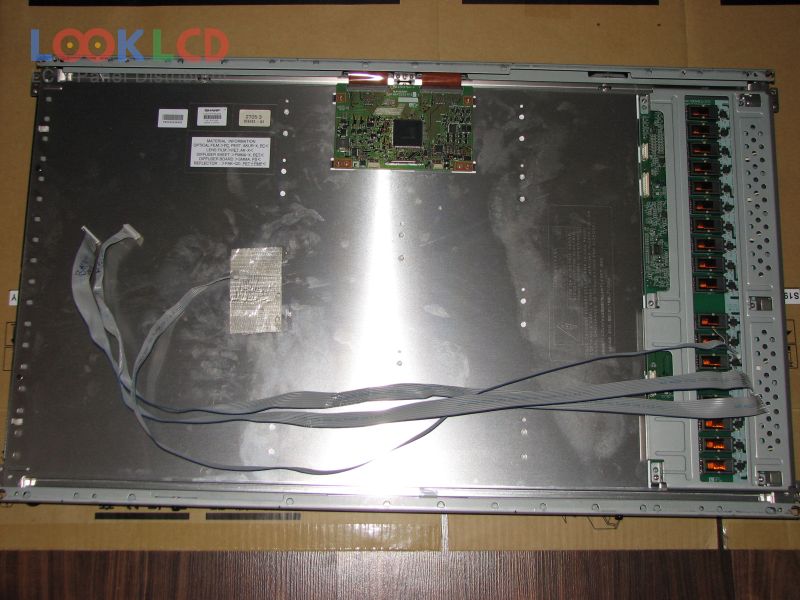

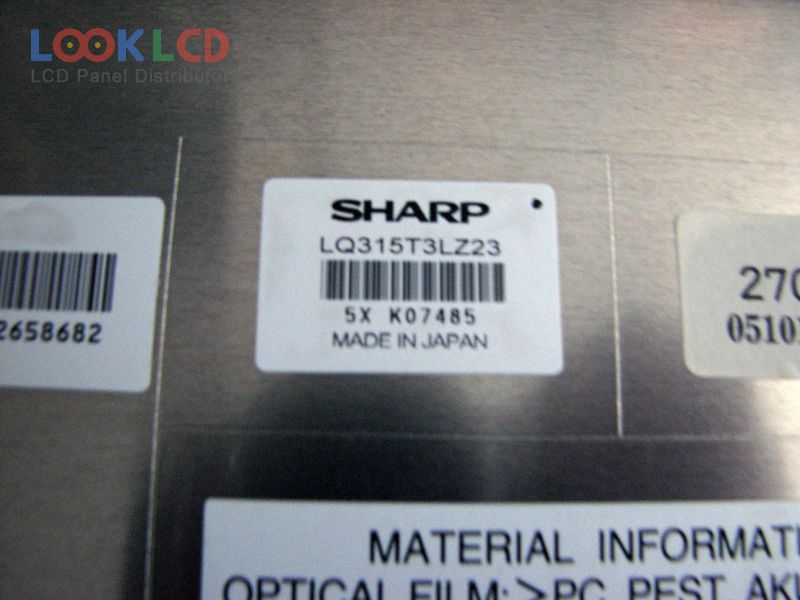

| PartNumber | LQ315T3LZ23 |
| Značka | SHARP |
| Velikost | 31.5 |
| aplikace | LCTV |
| Rozlišení | 1366×768 |
| Složení | LCM |
| Jas | 500 |
| CR | 800:1 |
| Barvy | 16.7M |
| Podsvícení | CCFL |
| Rozhraní | LVDS |
| značka panelu | SHARP |
| panelový model | LQ315T3LZ23 |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 31.5 inch |
| rozlišení | 1366(RGB)×768 , WXGA |
| zobrazovací mód | Normally Black, Transmissive |
| aktivní oblast | 697.685×392.256 mm |
| obrys | 780×450 mm |
| povrch | Antiglare (Haze 23%), Hard coating (2H), Antireflection |
| jas | 500 cd/m² (Typ.) |
| kontrastní poměr | 800:1 (Typ.) |
| zobrazit barvy | 16.7M (8-bit), CIE193173% |
| Doba odezvy | 12/12 (Typ.)(Tr/Td) |
| úhel pohledu | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |

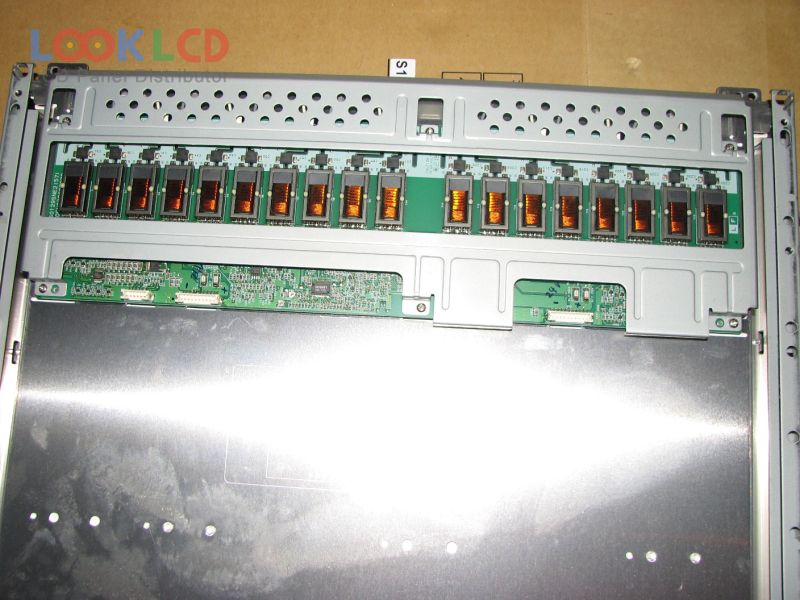

| typ lampy | 18 pcsCCFLEmbedded (Inverter) |
| signálové rozhraní | LVDS (1 ch, 8-bit), 37 pins |
| vstupní napětí | 5.0V (Typ.) |
| aplikace | LCTV |
| LC320DXJ-SFE1 | LG Display | 31.5 | 1366×768 |
| LC320EUD-SEM1 | LG Display | 31.5 | 1920×1080 |
| LC320EXJ-SEK1 | LG Display | 31.5 | 1366×768 |
| LC320WXE-SCA1 | LG Display | 31.5 | 1366×768 |
| LC320WXN-SBD1 | LG Display | 31.5 | 1366×768 |
| LQ315D1JG03 | SHARP | 31.5 | 3840×2160 |
| LQ315D1JG93 | SHARP | 31.5 | 3840×2160 |
| LQ315D1LG9D | SHARP | 31.5 | 3840×2160 |
| LQ315T3LZ23 | SHARP | 31.5 | 1366×768 |
| LTA320AP32 | Samsung | 31.5 | 1366×768 |
| LC370WUE-SBB2 | LG Display | 37 | 1920×1080 |
| LC370WUE-SCA1 | LG Display | 37 | 1920×1080 |
| LTA400HA08 | Samsung | 40 | 1920×1080 |
| LTA460HQ18 | Samsung | 46 | 1920×1080 |
| M260TWR1 R1 | IVO | 26.0 | 1366×768 |
| MT4601B02-1 | CSOT | 46 | 1920×1080 |
| T320XVN02.0 CELL | AUO | 31.5 | 1366×768 |
| T460HB01 V0 CELL | AUO | 46 | 1920×1080 |
| T546HW02 V1 | AUO | 55 | 1920×1080 |
| T550QVN02.0 CELL | AUO | 55 | 3840×2160 |
