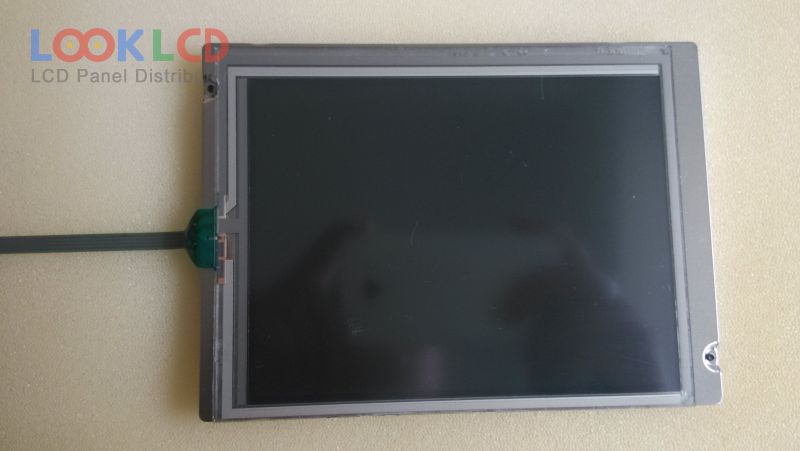

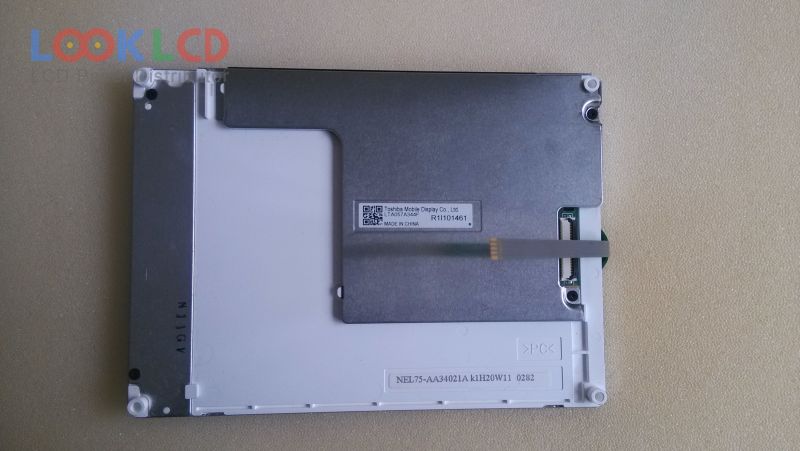

| PartNumber | LTA057A344F |
| Značka | TOSHIBA |
| Velikost | 5.7 |
| aplikace | IA |
| Rozlišení | 320×240 |
| Složení | LCM |
| Jas | 320 |
| CR | 500:1 |
| Barvy | 262K |
| Podsvícení | WLED |
| Rozhraní | TTL |
| značka panelu | Toshiba Matsushita |
| panelový model | LTA057A344F |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 5.7 inch |
| rozlišení | 320(RGB)×240 , QVGA |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 115.2×86.4 mm |
| obrys | 144×104.6×10 mm |
| povrch | |
| jas | 320 cd/m² (Typ.) |
| kontrastní poměr | 500:1 (Typ.) |
| zobrazit barvy | 262K (6-bit) |
| Doba odezvy | 50/50 (Max.)(Tr/Td) |
| úhel pohledu | 70/70/60/60 (Typ.)(CR≥10)(L/R/U/D) |
| typ lampy | 6S3PWLEDWithout Driver |
| signálové rozhraní | CMOS (1 ch, 6-bit), 33 pins |
| vstupní napětí | 3.3V (Typ.)(VDD) |
| aplikace | IA |
