| PartNumber | LTA320AP33 |
| Značka | Samsung |
| Velikost | 31.5 |
| aplikace | LCTV |
| Rozlišení | 1366×768 |
| Složení | LCM |
| Jas | 300 |
| CR | 3000:1 |
| Barvy | 16.7M |
| Podsvícení | WLED |
| Rozhraní | LVDS |
| značka panelu | SAMSUNG |

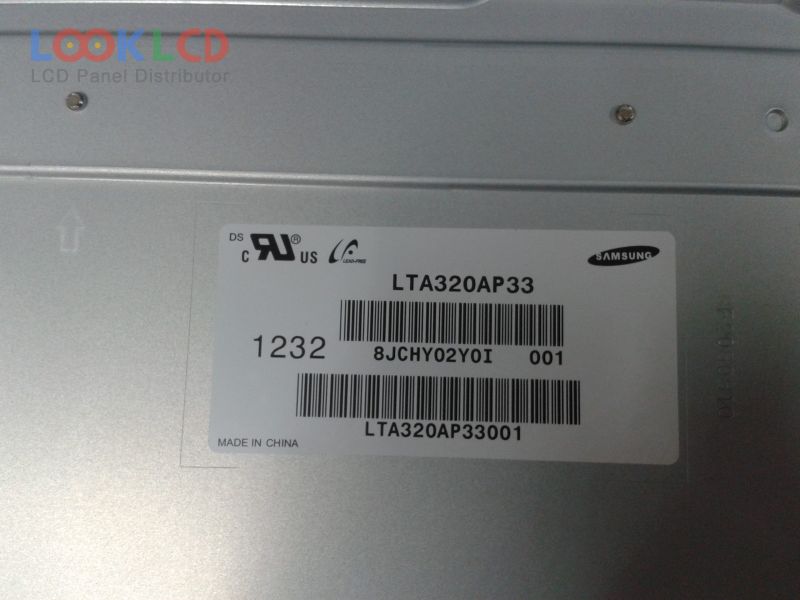

| panelový model | LTA320AP33 |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 31.5 inch |
| rozlišení | 1366×768(RGB) , WXGA |
| zobrazovací mód | S-PVA, Normally Black, Transmissive |
| aktivní oblast | 697.685×392.256 mm |
| obrys | 724.5×423.3 mm |
| povrch | Antiglare (Haze 14%), Hard coating (2H) |
| jas | 300 cd/m² (Typ.) |
| kontrastní poměr | 3000:1 (Typ.) |
| zobrazit barvy | 16.7M (8-bit), CIE193170% |
| Doba odezvy | 20 (Typ.)(G to G) |
| úhel pohledu | 89/89/89/89 (Typ.)(CR＞10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | WLEDEmbedded (LED Driver) |

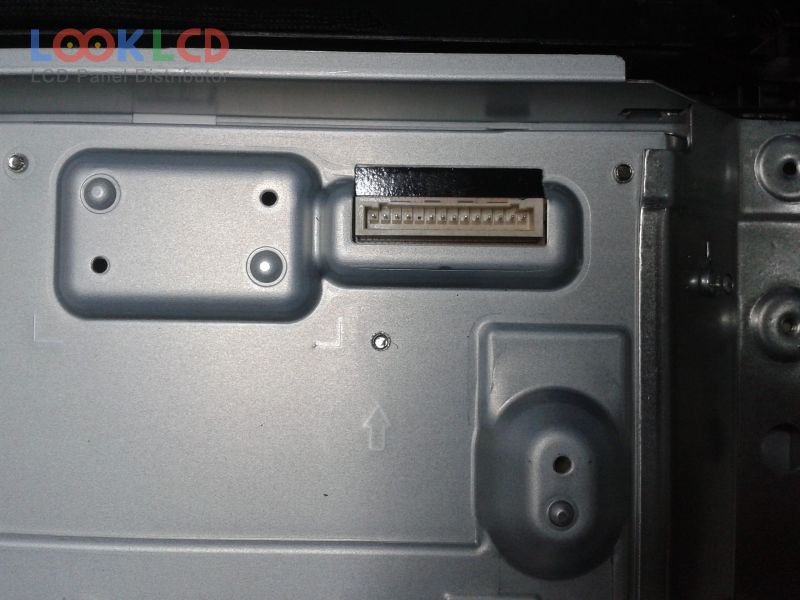

| signálové rozhraní | LVDS (1 ch, 8-bit), 30 pins |
| vstupní napětí | 12.0V (Typ.) |
| aplikace | LCTV |
