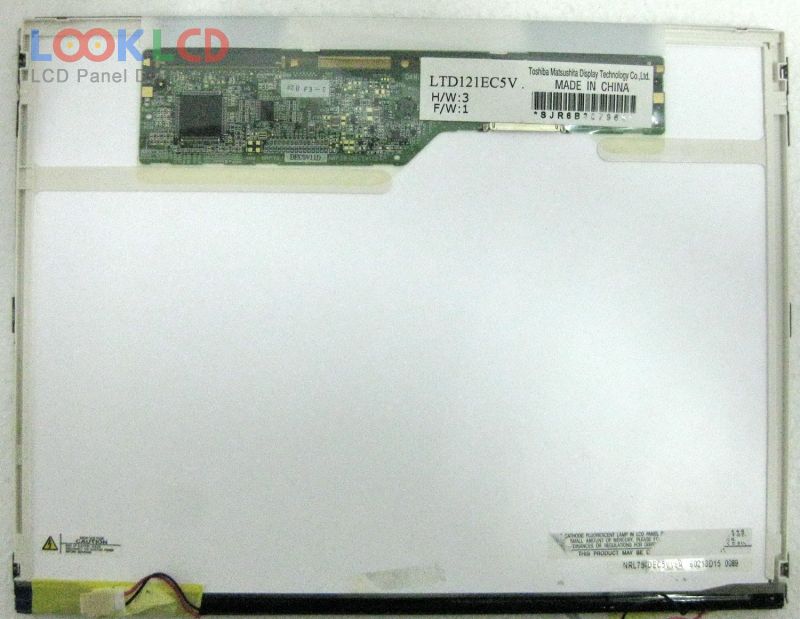

| PartNumber | LTD121EC5V |
| Značka | TOSHIBA |
| Velikost | 12.1 |
| aplikace | NBPC |
| Rozlišení | 1024×768 |
| Složení | LCM |
| Jas | 180 |
| CR | 150:1 |
| Barvy | 262K |
| Podsvícení | CCFL |
| Rozhraní | LVDS |
| značka panelu | Toshiba Matsushita |
| panelový model | LTD121EC5V 6 Compatible model |
| typ panelu | LTPS TFT-LCD , LCM |
| velikost panelu | 12.1 inch |
| rozlišení | 1024(RGB)×768 , XGA |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 245.76×184.32 mm |
| obrys | 261×199×5 mm |
| povrch | Antiglare, Hard coating (3H) |
| jas | 180 cd/m² (Typ.) |
| kontrastní poměr | 150:1 (Min.) |
| zobrazit barvy | 262K (6-bit) |
| Doba odezvy | 50 (Max.)(Tr+Td) |
| úhel pohledu | 30/30/10/20 (Min.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | 1 pcsCCFLWithout Driver |
| signálové rozhraní | LVDS (1 ch, 6-bit), 20 pins |
| vstupní napětí | 3.3V (Typ.) |
| aplikace | NBPC |
| LTD121C32S | TOSHIBA | 12.1 | 800×600 |
| LTD121EC5V | TOSHIBA | 12.1 | 1024×768 |
| LTD121EDDX | TOSHIBA | 12.1 | 1024×768 |
| LTD121EQ3B | TOSHIBA | 12.1 | 1280×800 |
| LTD121EW3D | TOSHIBA | 12.1 | 1280×800 |
| LTD121EWPF | TOSHIBA | 12.1 | 1280×800 |
| LTD121EXPV | TOSHIBA | 12.1 | 1280×800 |
| LTD121KM2M | TOSHIBA | 12.1 | 1400×1050 |
| LTD121KX5V | TOSHIBA | 12.1 | 1280×800 |
| LTD121KX6B | TOSHIBA | 12.1 | 1280×800 |
| B133XTN01.0 | AUO | 13.3 | 1366×768 |
| G075ADE-T01 | Innolux | 7.5 | 1200×900 |
| HT12X12-100 | HYDIS | 12.1 | 1024×768 |
| HX121WX1-101 | HYDIS | 12.1 | 1280×800 |
| LP173WD1-TLC1 | LG Display | 17.3 | 1600×900 |
| LTD121EDDX | TOSHIBA | 12.1 | 1024×768 |
| LTM12C505K | TOSHIBA | 12.1 | 1024×768 |
| LTN133AT23-X01 | Samsung | 13.3 | 1366×768 |
| LTN156AT02-D03 | Samsung | 15.6 | 1366×768 |
| LTN184KT01-S02 | Samsung | 18.4 | 1680×945 |
