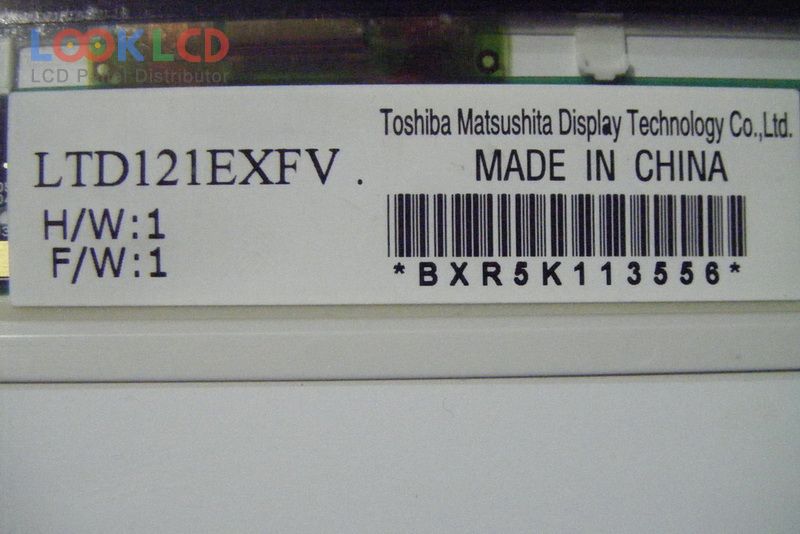

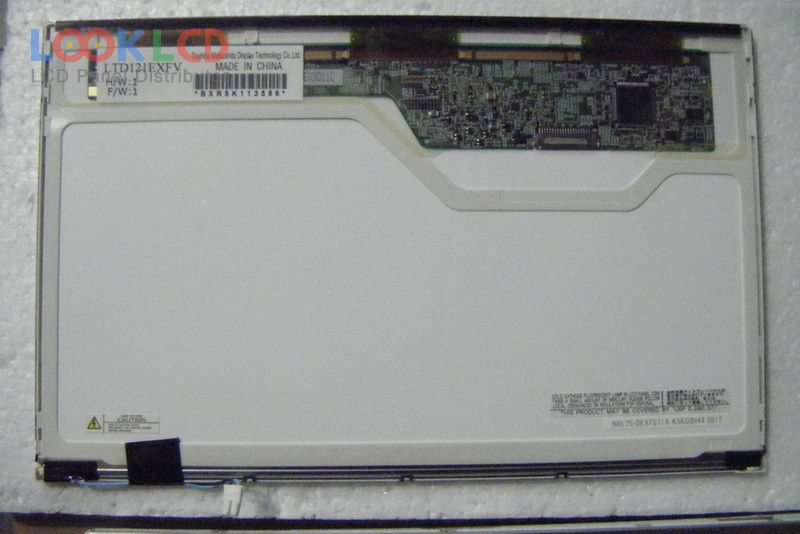

| PartNumber | LTD121EXFV |
| Značka | TOSHIBA |
| Velikost | 12.1 |
| aplikace | NBPC |
| Rozlišení | 1280×768 |
| Složení | LCM |
| Jas | 200 |
| CR | 600:1 |
| Barvy | 262K |
| Podsvícení | CCFL |
| Rozhraní | LVDS |
| značka panelu | Toshiba Matsushita |
| panelový model | LTD121EXFV 1 Compatible model |
| typ panelu | LTPS TFT-LCD , LCM |
| velikost panelu | 12.1 inch |
| rozlišení | 1280(RGB)×768 , WXGA |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 263.04×157.824 mm |
| obrys | 275×173.5×5.2 mm |
| tvarový styl | Wedge (PCBA Bent, Depth ≥5.2mm) |
| povrch | Glare (Haze 0%), Hard coating (2H) |
| jas | 200 cd/m² (Typ.) |
| kontrastní poměr | 600:1 (Typ.) |
| zobrazit barvy | 262K (6-bit) |
| Doba odezvy | 50 (Max.)(Tr+Td) |
| úhel pohledu | 30/30/10/20 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | 1 pcsCCFLWithout Driver |
| signálové rozhraní | LVDS (1 ch, 6-bit), 20 pins |
| vstupní napětí | 3.3V (Typ.) |
| rohs: | |
| aplikace | NBPC |
