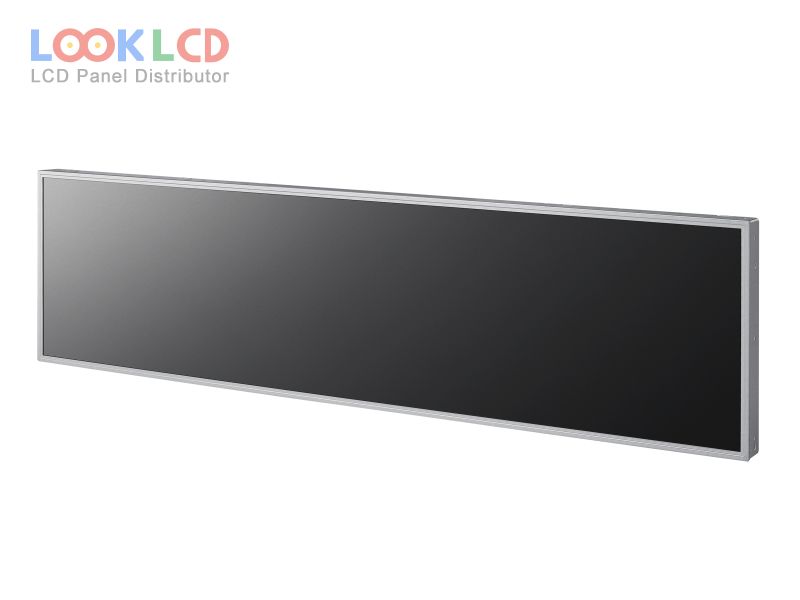

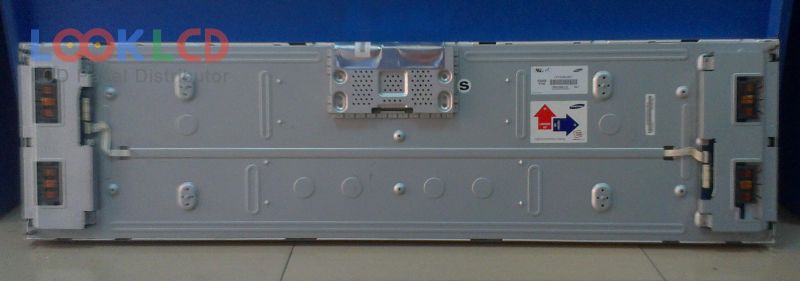

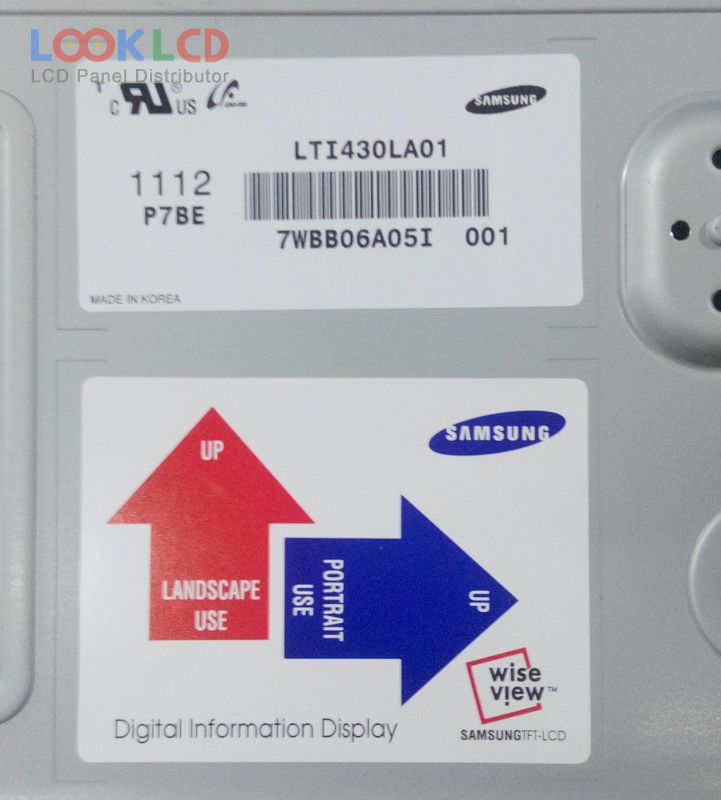

| PartNumber | LTI430LA01 |
| Značka | Samsung |
| Velikost | 43 |
| aplikace | PID |
| Rozlišení | 1920×480 |
| Složení | LCM |
| Jas | 700 |
| CR | 3000:1 |
| Barvy | 16.7M |
| Podsvícení | CCFL |
| Rozhraní | LVDS |
| značka panelu | SAMSUNG |
| panelový model | LTI430LA01 |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 43 inch |
| rozlišení | 1920(RGB)×480 |
| zobrazovací mód | S-PVA, Normally Black, Transmissive |
| aktivní oblast | 1059.84×264.96 mm |
| obrys | 1084×289 mm |
| povrch | Antiglare (Haze 44%), Hard coating (3H) |
| jas | 700 cd/m² (Typ.) |
| kontrastní poměr | 3000:1 (Typ.) |
| zobrazit barvy | 16.7M (8-bit), CIE193172% |
| Doba odezvy | 15/6 (Typ.)(Tr/Td); 8 (Typ.)(G to G) |
| úhel pohledu | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | 8 pcsCCFLEmbedded (Inverter) |
| signálové rozhraní | LVDS (2 ch, 8-bit), 51 pins |
| vstupní napětí | 12.0V (Typ.) |
| aplikace | PID |
