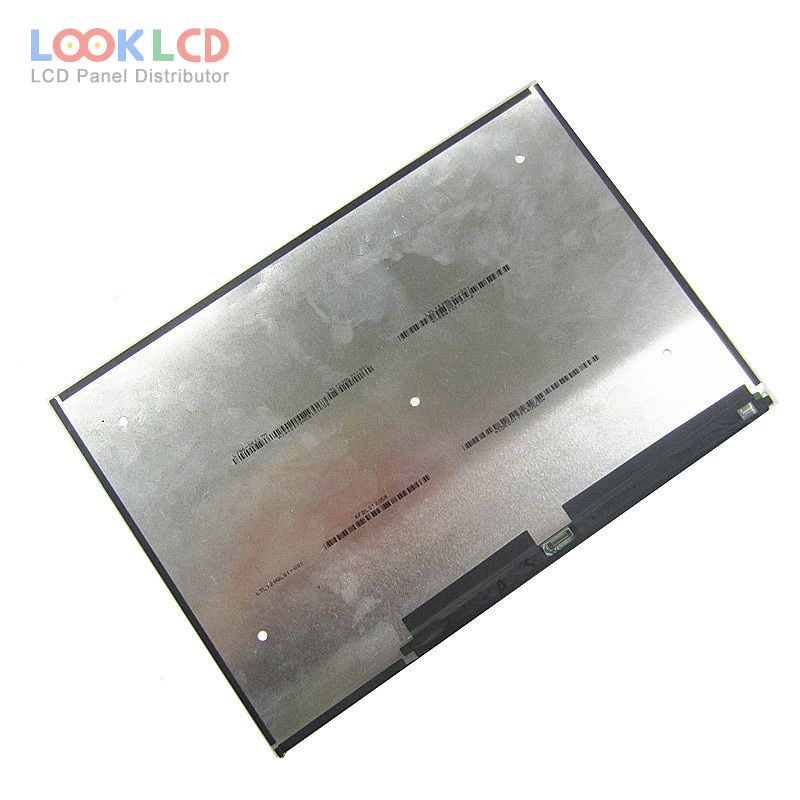

| PartNumber | LTL120QL01-001 |
| Značka | Samsung |
| Velikost | 12.0 |
| aplikace | PAD |
| Rozlišení | 2160×1440 |
| Složení | LCM |
| Jas | 400 |
| CR | 800:1 |
| Barvy | 16.7M |
| Podsvícení | WLED |
| Rozhraní | eDP |
| značka panelu | SAMSUNG |
| panelový model | LTL120QL01-001 |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 12.0 inch |
| rozlišení | 2160(RGB)×1440 |
| zobrazovací mód | PLS, Normally Black, Transmissive |
| aktivní oblast | 254.016×169.344 mm |
| obrys | 263.42×182.26×4.29 mm |
| povrch | Glare (Haze 0%), Hard coating (2H) |
| jas | 400 cd/m² (Typ.) |
| kontrastní poměr | 800:1 (Typ.) |
| zobrazit barvy | 16.7M (8-bit), CIE193172% |
| Doba odezvy | 25/35 (Max.)(Tr/Td) |
| úhel pohledu | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | 9S6PWLEDEmbedded (LED Driver) |
| signálové rozhraní | eDP (4 Lanes), 40 pins |
| vstupní napětí | 3.3V (Typ.) |
| aplikace | PAD |
