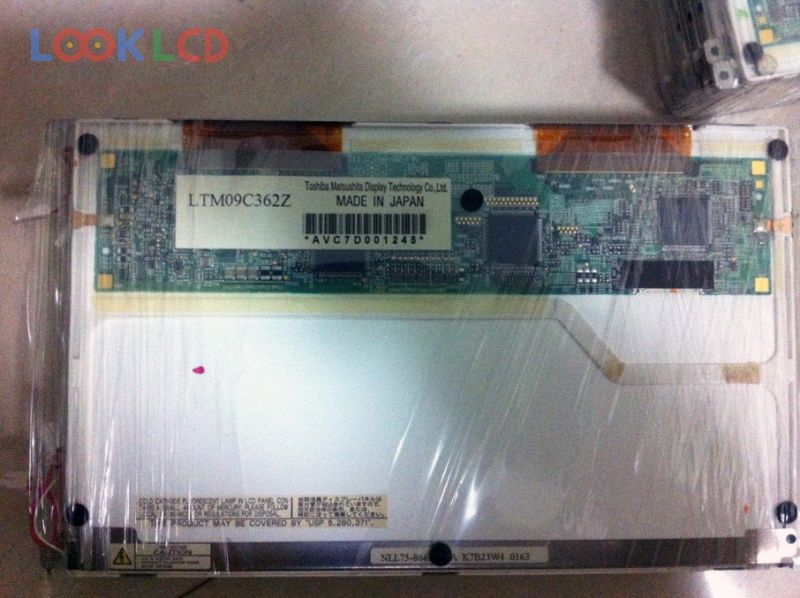

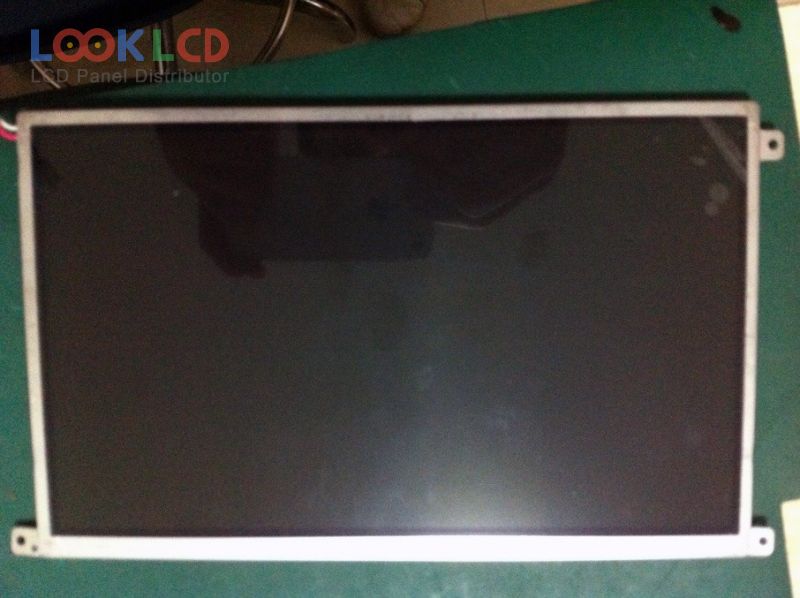

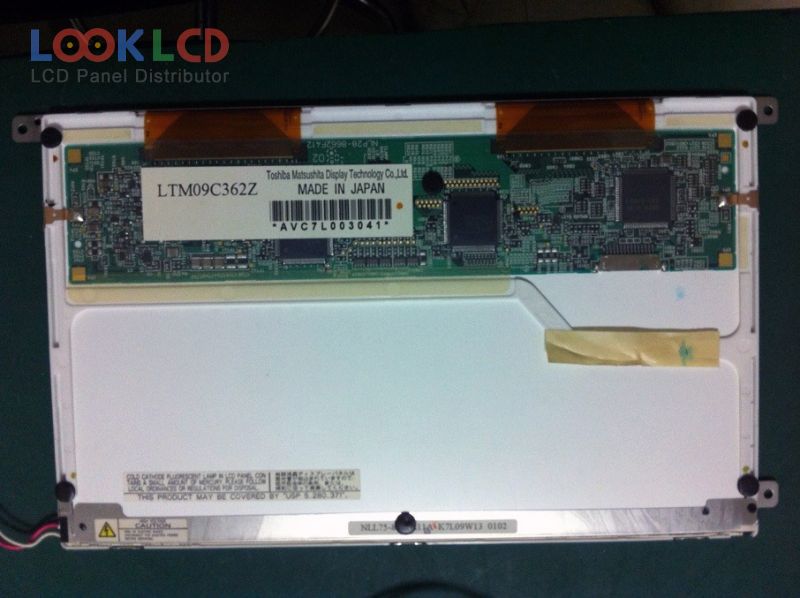

| PartNumber | LTM09C362Z |
| Značka | TOSHIBA |
| Velikost | 8.9 |
| aplikace | NBPC |
| Rozlišení | 1024×600 |
| Složení | LCM |
| Jas | 220 |
| CR | 100:1 |
| Barvy | 262K |
| Podsvícení | CCFL |
| Rozhraní | LVDS |
| značka panelu | Toshiba Matsushita |
| panelový model | LTM09C362Z 2 Compatible model |
| typ panelu | LTPS TFT-LCD , LCM |
| velikost panelu | 8.9 inch |
| rozlišení | 1024(RGB)×600 , WSVGA |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 195.072×113.4 mm |
| obrys | 224×129×5.2 mm |
| povrch | |
| jas | 220 cd/m² (Typ.) |
| kontrastní poměr | 100:1 (Min.) |
| zobrazit barvy | 262K (6-bit) |
| Doba odezvy | 50/50 (Max.)(Tr/Td) |
| úhel pohledu | |
| frekvence | 60Hz |
| typ lampy | 1 pcsCCFLWithout Driver |
| signálové rozhraní | LVDS (1 ch, 6-bit), 14 pins |
| vstupní napětí | 3.3V (Typ.) |
| rohs: | |
| aplikace | NBPC |
