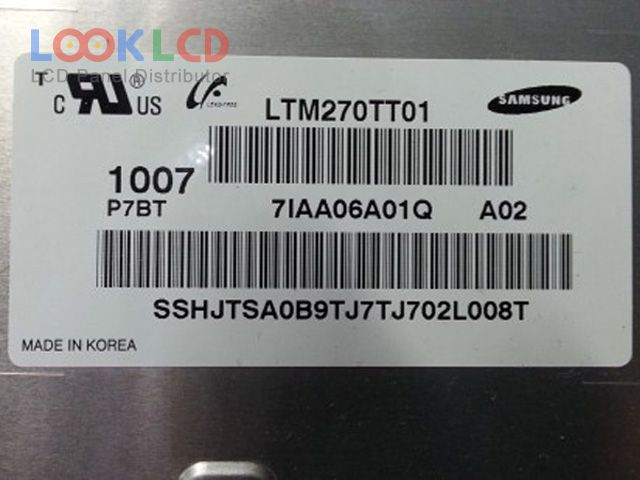

| PartNumber | LTM270TT01 |
| Značka | Samsung |
| Velikost | 27.0 |
| aplikace | DMPC |
| Rozlišení | 2048×1152 |
| Složení | LCM |
| Jas | 400 |
| CR | 1000:1 |
| Barvy | 16.7M |
| Podsvícení | CCFL |
| Rozhraní | LVDS |
| značka panelu | SAMSUNG |
| panelový model | LTM270TT01 |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 27.0 inch |
| rozlišení | 2048(RGB)×1152 , WDXGA |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 597.5×336.1 mm |
| obrys | 631.4×370 mm |
| povrch | Antiglare (Haze 25%), Hard coating (3H) |
| jas | 400 cd/m² (Typ.) |
| kontrastní poměr | 1000:1 (Typ.) |
| zobrazit barvy | 16.7M (6-bit + Hi-FRC), CIE193192% |
| Doba odezvy | 5 (Typ.)(Tr+Td) |
| úhel pohledu | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | CCFLEmbedded (Inverter) |
| signálové rozhraní | LVDS (2 ch, 8-bit), 30 pins |
| vstupní napětí | 5.0V (Typ.) |
| aplikace | DMPC |
