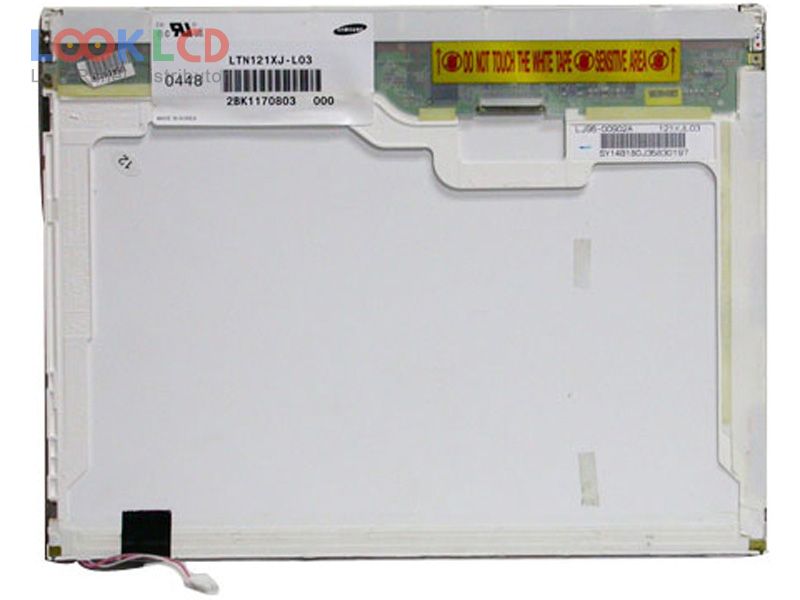

| PartNumber | LTN121XJ-L03 |
| Značka | Samsung |
| Velikost | 12.1 |
| aplikace | NBPC |
| Rozlišení | 1024×768 |
| Složení | LCM |
| Jas | 150 |
| CR | 200:1 |
| Barvy | 262K |
| Podsvícení | CCFL |
| Rozhraní | LVDS |
| značka panelu | SAMSUNG |
| panelový model | LTN121XJ-L03 5 Compatible model |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 12.1 inch |
| rozlišení | 1024(RGB)×768 , XGA |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 245.76×184.32 mm |
| obrys | 261×199×5 mm |
| povrch | Antiglare (Haze 25%), Hard coating (3H) |
| jas | 150 cd/m² (Typ.) |
| kontrastní poměr | 200:1 (Min.) |
| zobrazit barvy | 262K (6-bit) |
| Doba odezvy | 6/25 (Typ.)(Tr/Td) |
| úhel pohledu | 40/40/10/30 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | 1 pcsCCFLWithout Driver |
| signálové rozhraní | LVDS (1 ch, 6-bit), 20 pins |
| vstupní napětí | 3.3V (Typ.) |
| aplikace | NBPC |
