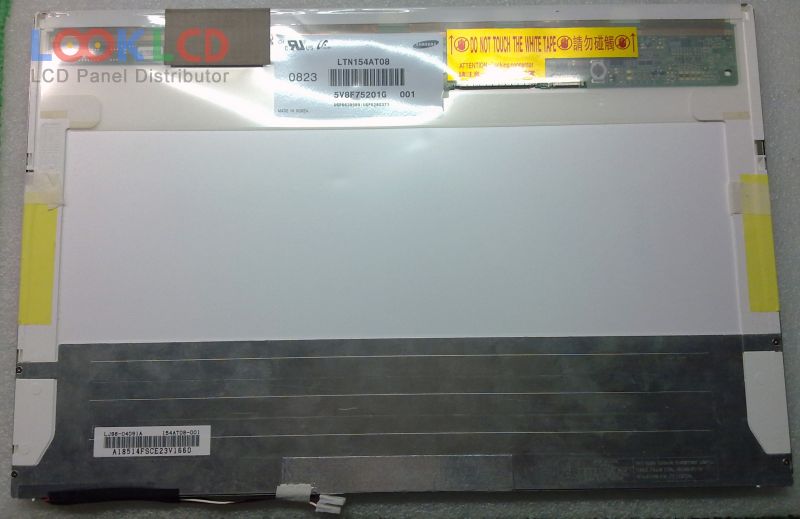

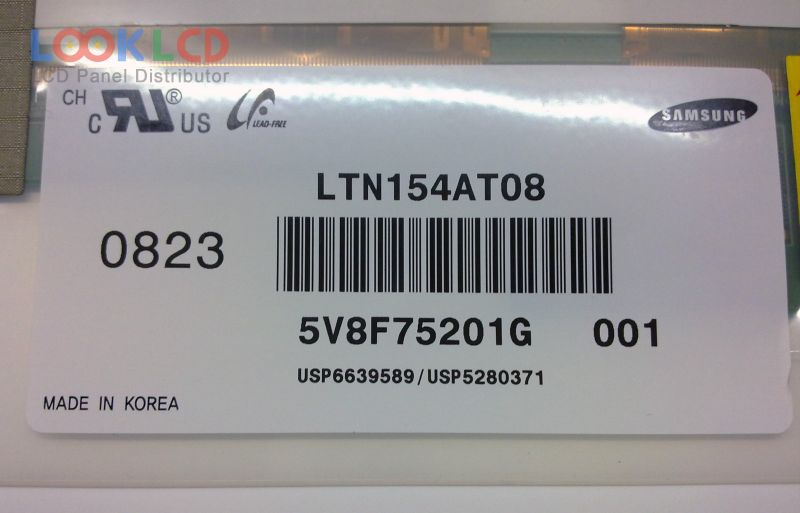

| PartNumber | LTN154AT08-001 |
| Značka | Samsung |
| Velikost | 15.4 |
| aplikace | NBPC |
| Rozlišení | 1280×800 |
| Složení | LCM |
| Jas | 300 |
| CR | 600:1 |
| Barvy | 262K |
| Podsvícení | CCFL |
| Rozhraní | LVDS |
| značka panelu | SAMSUNG |
| panelový model | LTN154AT08-001 3 Compatible model |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 15.4 inch |
| rozlišení | 1280(RGB)×800 , WXGA |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 331.2×207 mm |
| obrys | 344×225×7 mm |
| tvarový styl | Wedge (PCBA Bent, Depth ≥5.2mm) |
| povrch | Glare (Haze 0%), Hard coating (3H), Reflection 2.0% (Max.) |
| jas | 300 cd/m² (Typ.) |
| kontrastní poměr | 600:1 (Typ.) |
| zobrazit barvy | 262K (6-bit), CIE193172% |
| Doba odezvy | 16 (Typ.)(Tr+Td) |
| úhel pohledu | 45/45/15/35 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | 2 pcsCCFLWithout Driver |
| signálové rozhraní | LVDS (1 ch, 6-bit), 30 pins |
| vstupní napětí | 3.3V (Typ.) |
| aplikace | NBPC |
