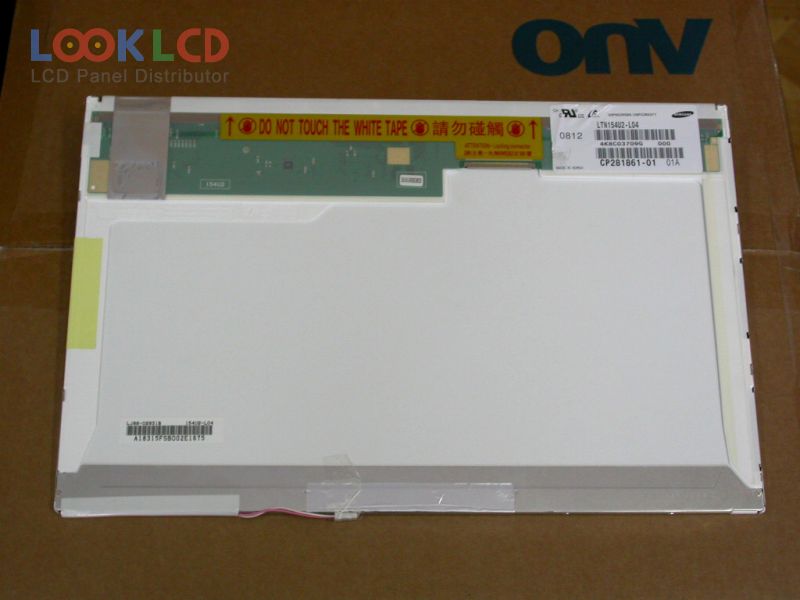

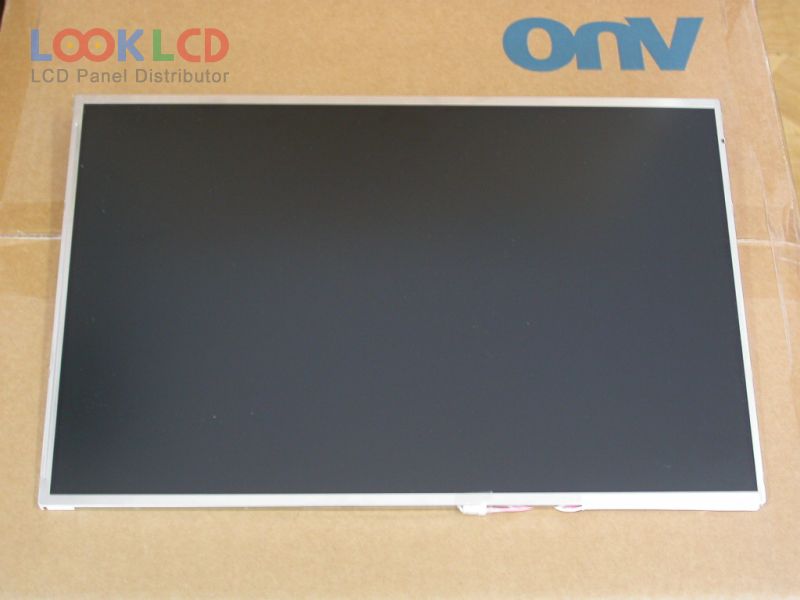

| PartNumber | LTN154U2-L04-0 |
| Značka | Samsung |
| Velikost | 15.4 |
| aplikace | NBPC |
| Rozlišení | 1920×1200 |
| Složení | LCM |
| Jas | 170 |
| CR | 300:1 |
| Barvy | 262K |
| Podsvícení | CCFL |
| Rozhraní | LVDS |
| značka panelu | SAMSUNG |
| panelový model | LTN154U2-L04-0 4 Compatible model |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 15.4 inch |
| rozlišení | 1920(RGB)×1200 , WUXGA |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 331.2×207 mm |
| obrys | 344×222×6.5 mm |
| tvarový styl | Wedge (PCBA Bent, Depth ≥5.2mm) |
| povrch | Antiglare (Haze 25%), Hard coating (3H) |
| jas | 170 cd/m² (Typ.) |
| kontrastní poměr | 300:1 (Typ.) |
| zobrazit barvy | 262K (6-bit) |
| Doba odezvy | 25 (Typ.)(Tr+Td) |
| úhel pohledu | 65/65/50/50 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | 1 pcsCCFLWithout Driver |

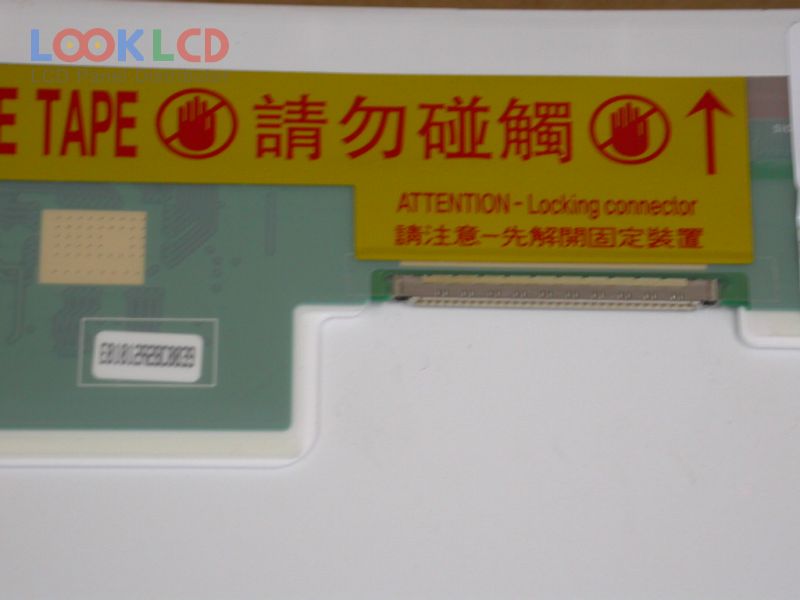

| signálové rozhraní | LVDS (2 ch, 6-bit), 30 pins |
| vstupní napětí | 3.3V (Typ.) |
| aplikace | NBPC |
| B154EW01 V1 | AUO | 15.4 | 1280×800 |
| LP154WX5-TLC1 | LG Display | 15.4 | 1280×800 |
| LTN154AT07-H01 | Samsung | 15.4 | 1280×800 |
| LTN154U1-L01 | Samsung | 15.4 | 1920×1200 |
| LTN154U1-L02 | Samsung | 15.4 | 1920×1200 |
| LTN154U1-L03 | Samsung | 15.4 | 1920×1200 |
| LTN154U2-L03 | Samsung | 15.4 | 1920×1200 |
| LTN154U2-L04-0 | Samsung | 15.4 | 1920×1200 |
| LTN154X3-L01 | Samsung | 15.4 | 1280×800 |
| N154I4-L04 | Innolux | 15.4 | 1280×800 |
| B121EW01 V1 | AUO | 12.1 | 1280×800 |
| B156HW01 V7 | AUO | 15.6 | 1920×1080 |
| LP133WH1-TLA1 | LG Display | 13.3 | 1366×768 |
| LP133WX1-TLN2 | LG Display | 13.3 | 1280×800 |
| LQ121S1LH03 | SHARP | 12.1 | 800×600 |
| LQ154M1LW2A | SHARP | 15.4 | 1920×1200 |
| LTN154X3-L01 | Samsung | 15.4 | 1280×800 |
| M140NWR2 R2 | IVO | 14.0 | 1366×768 |
| N116BGE-EB2 Rec.C3 | Innolux | 11.6 | 1366×768 |
| N173HCE-E31 | Innolux | 17.3 | 1920×1080 |
