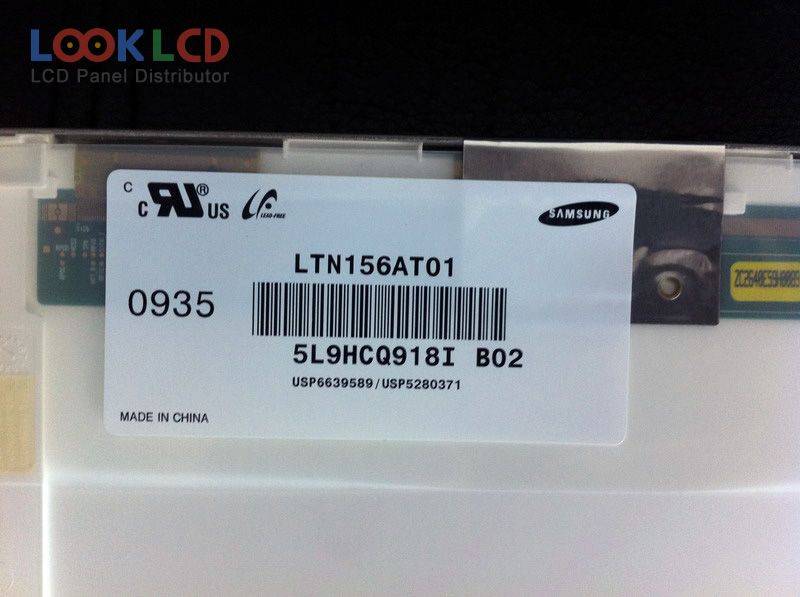

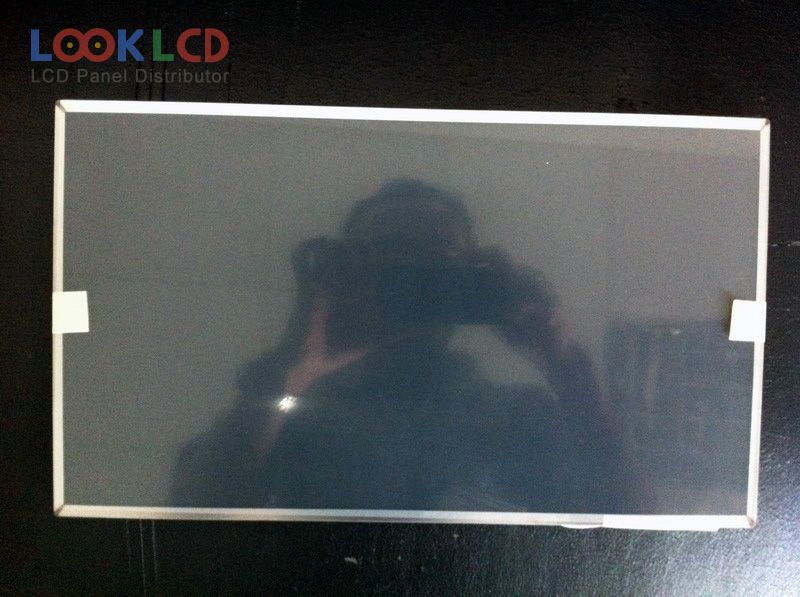

| PartNumber | LTN156AT01-B02 |
| Značka | Samsung |
| Velikost | 15.6 |
| aplikace | NBPC |
| Rozlišení | 1366×768 |
| Složení | LCM |
| Jas | 220 |
| CR | 600:1 |
| Barvy | 262K |
| Podsvícení | CCFL |
| Rozhraní | LVDS |
| značka panelu | SAMSUNG |
| panelový model | LTN156AT01-B02 10 Compatible model |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 15.6 inch |
| rozlišení | 1366(RGB)×768 , WXGA |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 344.232×193.536 mm |
| obrys | 359.3×209.5×6.2 mm |
| tvarový styl | Wedge (PCBA Bent, Depth ≥5.2mm) |
| povrch | Glare (Haze 0%), Hard coating (3H) |
| jas | 220 cd/m² (Typ.) |
| kontrastní poměr | 600:1 (Typ.) |
| zobrazit barvy | 262K (6-bit), CIE193160% |
| Doba odezvy | 25/35 (Typ./Max.)(Tr+Td) |
| úhel pohledu | 40/40/15/30 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | 1 pcsCCFLWithout Driver |
| signálové rozhraní | LVDS (1 ch, 6-bit), 30 pins |
| vstupní napětí | 3.3V (Typ.) |
| aplikace | NBPC |
| LTN156AT01-B01 | Samsung | 15.6 | 1366×768 |
| LTN156AT01-H01 | Samsung | 15.6 | 1366×768 |
| LTN156AT02-D03 | Samsung | 15.6 | 1366×768 |
| LTN156AT05-701 | Samsung | 15.6 | 1366×768 |
| LTN156AT05-W01 | Samsung | 15.6 | 1366×768 |
| LTN156AT09-B02 | Samsung | 15.6 | 1366×768 |
| LTN156AT17-103 | Samsung | 15.6 | 1366×768 |
| LTN156AT24-L01 | Samsung | 15.6 | 1366×768 |
| LTN156AT29-W02 | Samsung | 15.6 | 1366×768 |
| LTN156AT35-W02 | Samsung | 15.6 | 1366×768 |
| B141PW03 V1 | AUO | 14.1 | 1440×900 |
| B156XTN03.2 | AUO | 15.6 | 1366×768 |
| LP116WH6-SLA1 | LG Display | 11.6 | 1366×768 |
| LP141WX1-TL02 | LG Display | 14.1 | 1280×800 |
| LQ089B1LS11 | SHARP | 8.9 | 1280×600 |
| LTN125AT03-803 | Samsung | 12.5 | 1366×768 |
| LTN140AT02-C02 | Samsung | 14.0 | 1366×768 |
| LTN141AT16-B03 | Samsung | 14.1 | 1280×800 |
| N156HGE-EA1 | Innolux | 15.6 | 1920×1080 |
| NV156FHM-N42 | BOE | 15.6 | 1920×1080 |
