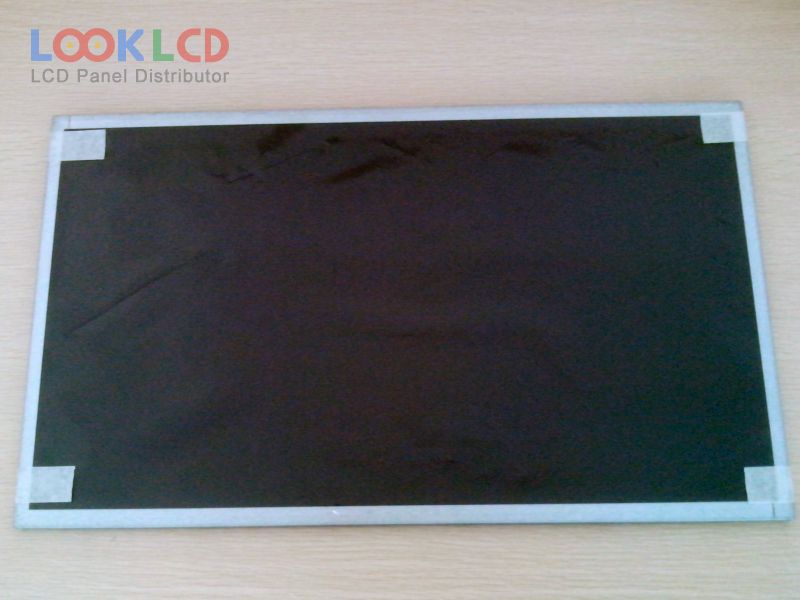

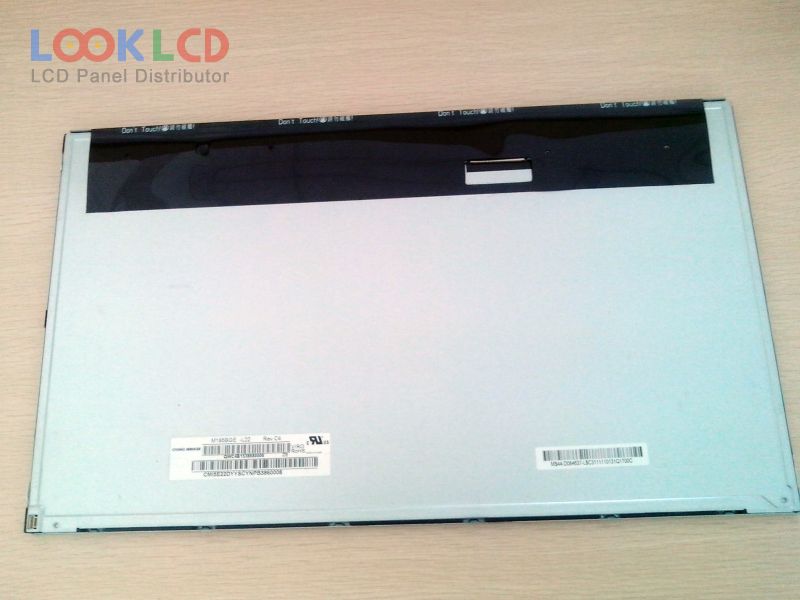

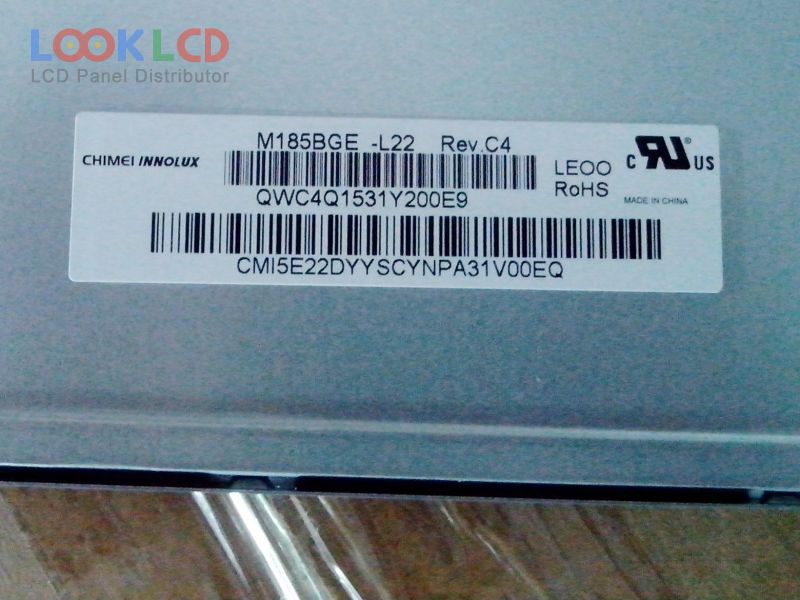

| PartNumber | M185BGE-L22 |
| Značka | Innolux |
| Velikost | 18.5 |
| aplikace | DMPC |
| Rozlišení | 1366×768 |
| Složení | LCM |
| Jas | 250 |
| CR | 1000:1 |
| Barvy | 16.7M |
| Podsvícení | WLED |
| Rozhraní | LVDS |
| značka panelu | CHIMEI INNOLUX |
| panelový model | M185BGE-L22 |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 18.5 inch |
| rozlišení | 1366(RGB)×768 , WXGA |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 409.8×230.4 mm |
| obrys | 430.37×254.6×11 mm |
| povrch | Antiglare (Haze 25%), Hard coating (3H) |
| jas | 250 cd/m² (Typ.) |
| kontrastní poměr | 1000:1 (Typ.) |
| zobrazit barvy | 16.7M (8-bit), CIE193172% |
| Doba odezvy | 1.5/3.5 (Typ.)(Tr/Td) |
| úhel pohledu | 85/85/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | 8S4PWLEDWithout Driver |
| signálové rozhraní | LVDS (1 ch, 8-bit), 30 pins |
| vstupní napětí | 5.0V (Typ.) |
| aplikace | DMPC |
| HM185WX1-400 | BOE | 18.5 | 1366×768 |
| M185B1-L02 | Innolux | 18.5 | 1366×768 |
| M185B1-L07 | Innolux | 18.5 | 1366×768 |
| M185B3-LA1 | Innolux | 18.5 | 1366×768 |
| M185BGE-L10 | Innolux | 18.5 | 1366×768 |
| M185BGE-L22 | Innolux | 18.5 | 1366×768 |
| M185BGE-L23 | Innolux | 18.5 | 1366×768 |
| M185BGE-L2U | Innolux | 18.5 | 1366×768 |
| M185BGE-P02 | Innolux | 18.5 | 1366×768 |
| MT185GW01 V.0 | Innolux | 18.5 | 1366×768 |
| A190EN02 V0 | AUO | 19.0 | 1280×1024 |
| HM200WD1-100 | BOE | 20.0 | 1600×900 |
| LM151X3-C3C1 | LG Display | 15.1 | 1024×768 |
| LM215WF3-SLM1 | LG Display | 21.5 | 1920×1080 |
| LM270WQ1-SDB3 | LG Display | 27.0 | 2560×1440 |
| LTM170EU-L21 | Samsung | 17.0 | 1280×1024 |
| LTM213U4-L01 | Samsung | 21.3 | 1600×1200 |
| LTM340YP02 | Samsung | 34 | 3440×1440 |
| M156B3-L01 | Innolux | 15.6 | 1366×768 |
| M270MWN1 R0 | IVO | 27.0 | 1920×1080 |
