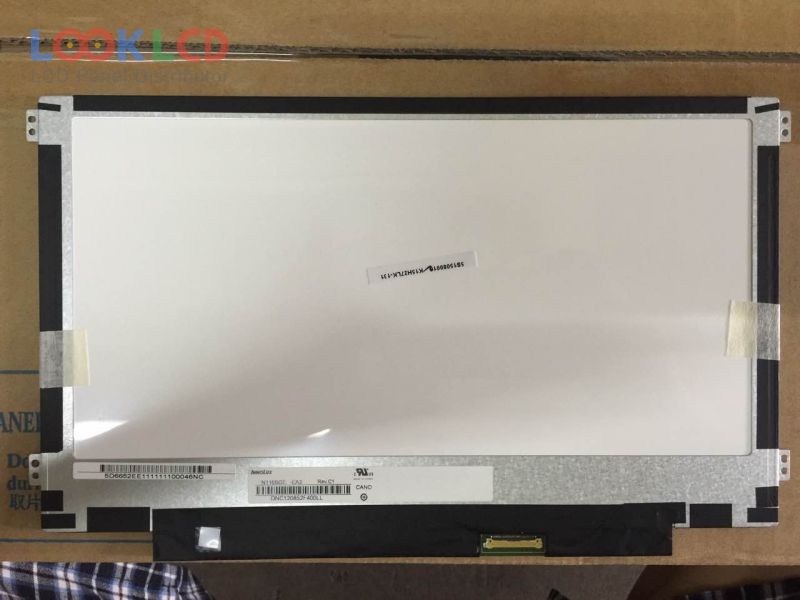

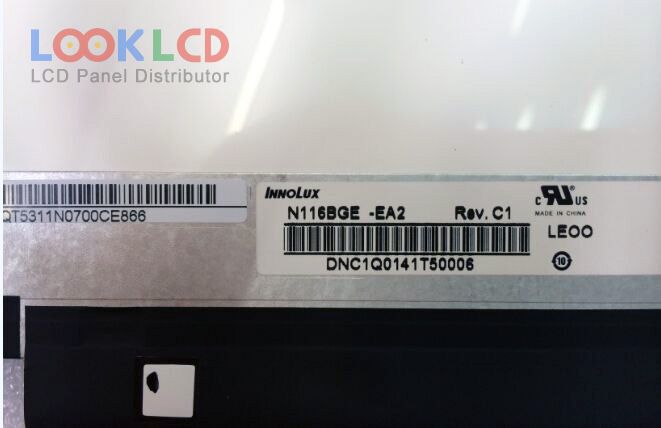

| PartNumber | N116BGE-EA2 |
| Značka | Innolux |
| Velikost | 11.6 |
| aplikace | NOPC |
| Rozlišení | 1366×768 |
| Složení | LCM |
| Jas | 220 |
| CR | 500:1 |
| Barvy | 262K |
| Podsvícení | WLED |
| Rozhraní | eDP |
| značka panelu | INNOLUX |
| panelový model | N116BGE-EA2 |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 11.6 inch |
| rozlišení | 1366(RGB)×768 , WXGA |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 256.125×144 mm |
| obrys | 278×167.9×3 mm |
| tvarový styl | Slim (PCBA Flat, Depth ≤3.2mm) |
| povrch | Antiglare, Hard coating (3H) |
| jas | 220 cd/m² (Typ.) |
| kontrastní poměr | 500:1 (Typ.) |
| zobrazit barvy | 262K (6-bit), CIE193145% |
| Doba odezvy | 3/7 (Typ.)(Tr/Td) |
| úhel pohledu | 45/45/20/45 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | WLEDEmbedded (LED Driver) |
| signálové rozhraní | eDP (1 Lane), 30 pins |
| vstupní napětí | 3.3V (Typ.) |
| aplikace | NOPC |
| N116B6-L02 | Innolux | 11.6 | 1366×768 |
| N116B6-L04 | Innolux | 11.6 | 1366×768 |
| N116B6-L07 | Innolux | 11.6 | 1366×768 |
| N116BGE-EA2 | Innolux | 11.6 | 1366×768 |
| N116BGE-EB2 Rec.C3 | Innolux | 11.6 | 1366×768 |
| N116BGE-L11 | Innolux | 11.6 | 1366×768 |
| N116BGE-L32 | Innolux | 11.6 | 1366×768 |
| N116BGE-L41 | Innolux | 11.6 | 1366×768 |
| N116BGE-L42 | Innolux | 11.6 | 1366×768 |
| N116BGE-LB1 | Innolux | 11.6 | 1366×768 |
| B101AW03 V0 | AUO | 10.1 | 1024×600 |
| B116XTN02.3 HW4A | AUO | 11.6 | 1366×768 |
| CLAA101NB03A | CPT | 10.1 | 1024×600 |
| HT101WSB-100 | BOE | 10.1 | 1024×600 |
| LP101WSA-TLA1 | LG Display | 10.1 | 1024×600 |
| LTN101NT02-W05 | Samsung | 10.1 | 1024×600 |
| M101NWT2 R1 | IVO | 10.1 | 1024×600 |
| N089L6-L02 | Innolux | 8.9 | 1024×600 |
| N116BGE-EA2 | Innolux | 11.6 | 1366×768 |
| N116BGE-L32 | Innolux | 11.6 | 1366×768 |
