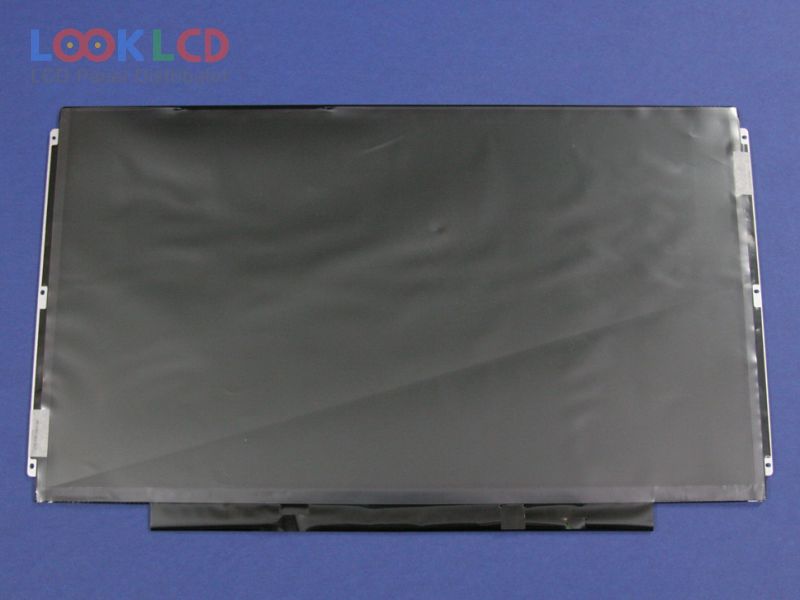

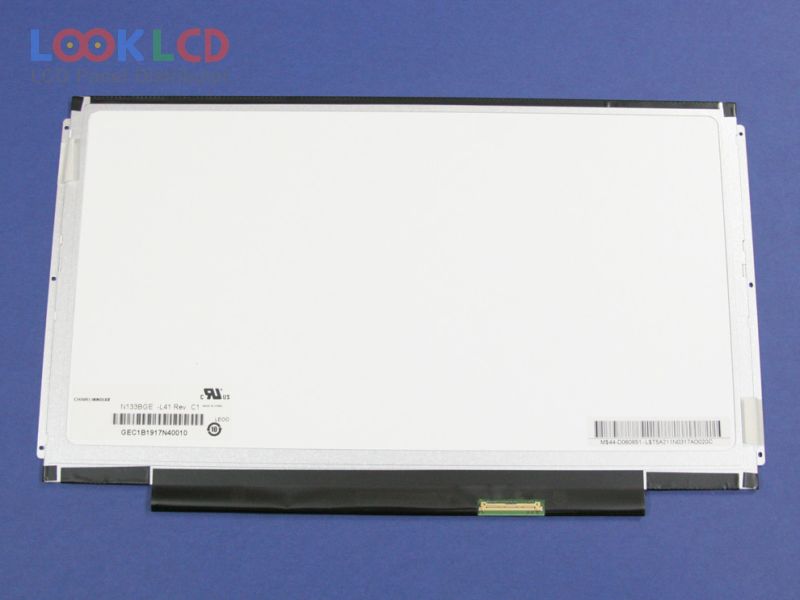

| PartNumber | N133BGE-L41 |
| Značka | Innolux |
| Velikost | 13.3 |
| aplikace | NBPC |
| Rozlišení | 1366×768 |
| Složení | LCM |
| Jas | 220 |
| CR | 500:1 |
| Barvy | 262K |
| Podsvícení | WLED |
| Rozhraní | LVDS |
| značka panelu | CHIMEI INNOLUX |
| panelový model | N133BGE-L41 9 Compatible model |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 13.3 inch |
| rozlišení | 1366(RGB)×768 , WXGA |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 293.42×164.97 mm |
| obrys | 314.1×188.75×3.6 mm |
| tvarový styl | Flat (PCBA Flat, Depth 3.4~4.0mm) |
| povrch | Glare (Haze 0%), Hard coating (3H) |
| jas | 220 cd/m² (Typ.) |
| kontrastní poměr | 500:1 (Typ.) |
| zobrazit barvy | 262K (6-bit), CIE193145% |
| Doba odezvy | 8/8 (Typ.)(Tr/Td) |
| úhel pohledu | 45/45/20/45 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | 10S3PWLEDEmbedded (LED Driver) |
| signálové rozhraní | LVDS (1 ch, 6-bit), 40 pins |
| vstupní napětí | 3.3V (Typ.) |
| aplikace | NBPC |
| N133B6-L01 | Innolux | 13.3 | 1366×768 |
| N133B6-L02 | Innolux | 13.3 | 1366×768 |
| N133BGE-E31 | Innolux | 13.3 | 1366×768 |
| N133BGE-E51 | Innolux | 13.3 | 1366×768 |
| N133BGE-EAB | Innolux | 13.3 | 1366×768 |
| N133BGE-EB1 | Innolux | 13.3 | 1366×768 |
| N133BGE-L21 | Innolux | 13.3 | 1366×768 |
| N133BGE-L31 | Innolux | 13.3 | 1366×768 |
| N133BGE-L41 | Innolux | 13.3 | 1366×768 |
| N133BGE-LB1 | Innolux | 13.3 | 1366×768 |
| B156XW01 V1 | AUO | 15.6 | 1366×768 |
| LP133WX1-TLC1 | LG Display | 13.3 | 1280×800 |
| LP154W02-TL10 | LG Display | 15.4 | 1680×1050 |
| LP156WHU-TPE1 | LG Display | 15.6 | 1366×768 |
| LT121EE16000 | TOSHIBA | 12.1 | 1280×800 |
| LTM10C349 | TOSHIBA | 10.4 | 800×600 |
| LTN133AT27-102 | Samsung | 13.3 | 1366×768 |
| LTN140AT07-306 | Samsung | 14.0 | 1366×768 |
| LTN140AT22-W01 | Samsung | 14.0 | 1366×768 |
| LTN140HL02-201 | Samsung | 14.0 | 1920×1080 |
