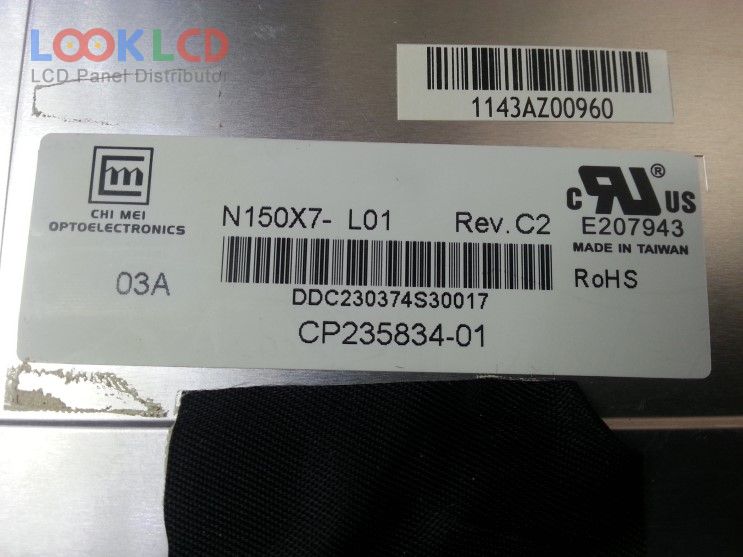

| PartNumber | N150X7-L01 |
| Značka | Innolux |
| Velikost | 15.0 |
| aplikace | NBPC |
| Rozlišení | 1024×768 |
| Složení | LCM |
| Jas | 500 |
| CR | 500:1 |
| Barvy | 262K |
| Podsvícení | CCFL |
| Rozhraní | LVDS |
| značka panelu | CMO |
| panelový model | N150X7-L01 |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 15.0 inch |
| rozlišení | 1024(RGB)×768 , XGA |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 304.128×228.096 mm |
| obrys | 317.3×242×10.2 mm |
| tvarový styl | Wedge (PCBA Bent, Depth ≥5.2mm) |
| povrch | Glare (Haze 0%), Hard coating (2H), Reflection 3.0% (Max.) |
| jas | 500 cd/m² (Typ.) |
| kontrastní poměr | 500:1 (Typ.) |
| zobrazit barvy | 262K (6-bit), CIE193172% |
| Doba odezvy | 4/10 (Typ.)(Tr/Td) |
| úhel pohledu | 60/60/40/60 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | 2 pcsCCFLWithout Driver |
| signálové rozhraní | LVDS (1 ch, 6-bit), 30 pins |
| vstupní napětí | 3.3V (Typ.) |
| rohs: | |
| aplikace | NBPC |
| LK150V3GZ13Z | SHARP | 15.0 | 640×480 |
| LM150X06-A3M2 | LG Display | 15.0 | 1024×768 |
| LP150X09-A3K1 | LG Display | 15.0 | 1024×768 |
| LQ150F1LW14C | SHARP | 15.0 | 1400×1050 |
| LQ150X1LG11 | SHARP | 15.0 | 1024×768 |
| LQ150X1LW71U | SHARP | 15.0 | 1024×768 |
| LTM15C423S | TOSHIBA | 15.0 | 1024×768 |
| N150X3-L09 | Innolux | 15.0 | 1024×768 |
| N150X7-L01 | Innolux | 15.0 | 1024×768 |
| QD15XL13 Rev.01 | QDI | 15.0 | 1024×768 |
| LP101WH1-TLB1 | LG Display | 10.1 | 1366×768 |
| LP140WH8-TPH1 | LG Display | 14.0 | 1366×768 |
| LP140WX1-TL02 | LG Display | 14.0 | 1280×768 |
| LP171WU1-A4K2 | LG Display | 17.1 | 1920×1200 |
| LQ106K1LA01C | SHARP | 10.6 | 1280×768 |
| LTM10C348S | TOSHIBA | 10.4 | 800×600 |
| LTN141BT04-002 | Samsung | 14.1 | 1440×900 |
| LTN154X9-L02 | Samsung | 15.4 | 1280×800 |
| M156NWR1 R0 | IVO | 15.6 | 1366×768 |
| N164HGE-L11 | Innolux | 16.4 | 1920×1080 |
