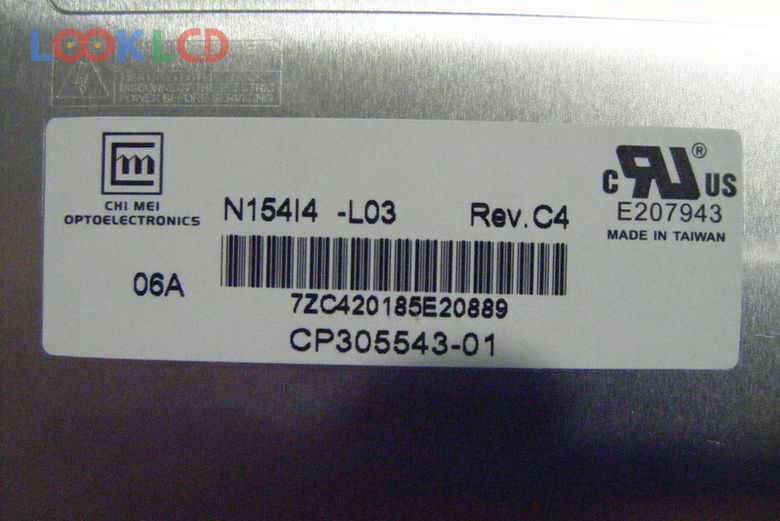

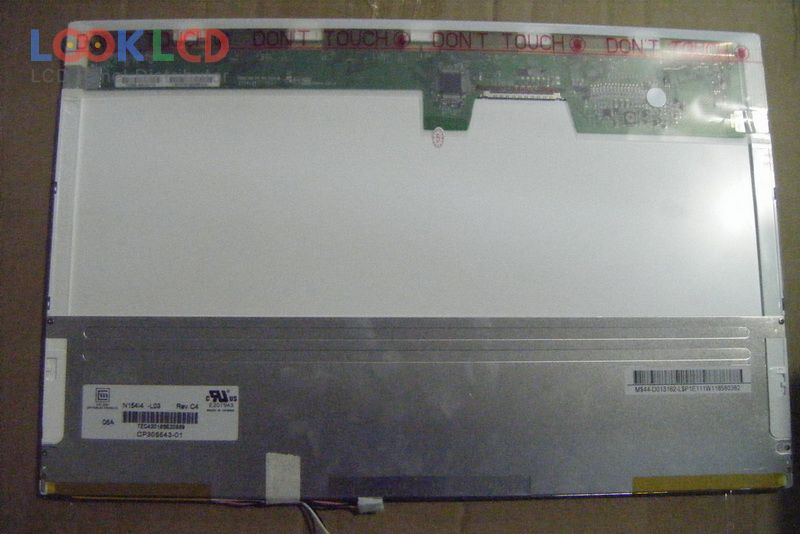

| PartNumber | N154I4-L03 |
| Značka | Innolux |
| Velikost | 15.4 |
| aplikace | NBPC |
| Rozlišení | 1280×800 |
| Složení | LCM |
| Jas | 600 |
| CR | 800:1 |
| Barvy | 262K |
| Podsvícení | CCFL |
| Rozhraní | LVDS |
| značka panelu | CMO |
| panelový model | N154I4-L03 3 Compatible model |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 15.4 inch |
| rozlišení | 1280(RGB)×800 , WXGA |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 331.2×207 mm |
| obrys | 344×224×6.5 mm |
| tvarový styl | Wedge (PCBA Bent, Depth ≥5.2mm) |
| povrch | Glare (Haze 0%), Hard coating (3H) |
| jas | 600 cd/m² (Typ.) |
| kontrastní poměr | 800:1 (Typ.) |
| zobrazit barvy | 262K (6-bit) |
| Doba odezvy | 1.3/3.7 (Typ.)(Tr/Td) |
| úhel pohledu | 60/60/40/60 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | 2 pcsCCFLWithout Driver |
| signálové rozhraní | LVDS (1 ch, 6-bit), 30 pins |
| vstupní napětí | 3.3V (Typ.) |
| aplikace | NBPC |
| CLAA154WA05A | CPT | 15.4 | 1280×800 |
| LP154WX4-TLCB | LG Display | 15.4 | 1280×800 |
| N154I2-L01 | Innolux | 15.4 | 1280×800 |
| N154I2-L02 | Innolux | 15.4 | 1280×800 |
| N154I2-L05 | Innolux | 15.4 | 1280×800 |
| N154I3-L03 | Innolux | 15.4 | 1280×800 |
| N154I4-L03 | Innolux | 15.4 | 1280×800 |
| N154I4-L04 | Innolux | 15.4 | 1280×800 |
| N154I5-L02 | Innolux | 15.4 | 1280×800 |
| N154I6-L03 | Innolux | 15.4 | 1280×800 |
| B154SW02 V3 | AUO | 15.4 | 1680×1050 |
| HSD110PHW2-A00 | HannStar | 11.0 | 1366×768 |
| HV133WX1-100 | HYDIS | 13.3 | 1280×800 |
| LP133WX2-TLGV | LG Display | 13.3 | 1280×800 |
| LP140QH1-SPA2 | LG Display | 14.0 | 2560×1440 |
| LP156WH2-TLA1 | LG Display | 15.6 | 1366×768 |
| LP156WH2-TLC2 | LG Display | 15.6 | 1366×768 |
| LP156WHU-TPE1 | LG Display | 15.6 | 1366×768 |
| LTN154X3-L03 | Samsung | 15.4 | 1280×800 |
| N154I6-L03 | Innolux | 15.4 | 1280×800 |
