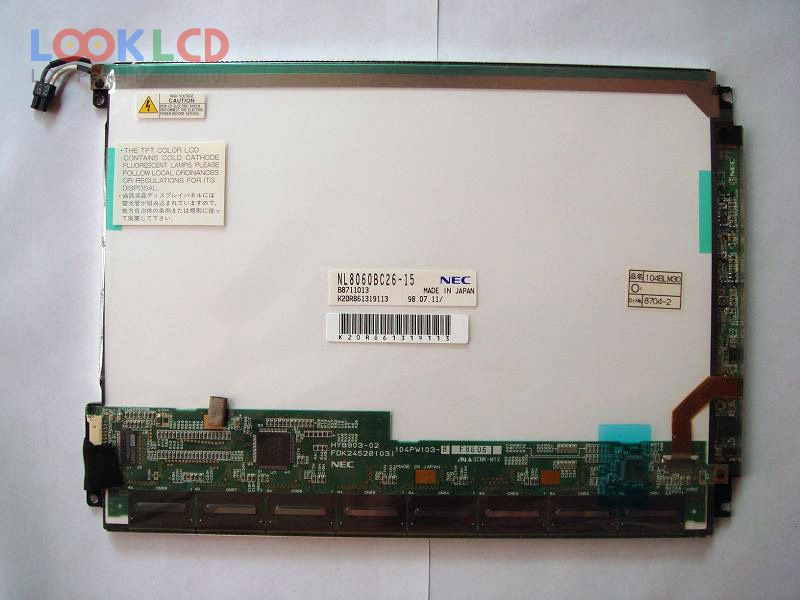

| PartNumber | NL8060BC26-15 |
| Značka | NLT |
| Velikost | 10.4 |
| aplikace | NBPC |
| Rozlišení | 800×600 |
| Složení | LCM |
| Jas | 100 |
| CR | 150:1 |
| Barvy | 262K |
| Podsvícení | CCFL |
| Rozhraní | LVDS |
| značka panelu | NEC |
| panelový model | NL8060BC26-15 |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 10.4 inch |
| rozlišení | 800(RGB)×600 , SVGA |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 211.2×158.4 mm |
| obrys | 237.8×170×6 mm |
| povrch | Antireflection |
| jas | 100 cd/m² (Typ.) |
| kontrastní poměr | 150:1 (Typ.) |
| zobrazit barvy | 262K (6-bit), CIE193140% |
| Doba odezvy | TBD |
| úhel pohledu | 50/50/20/40 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | 1 pcsCCFLWithout Driver |
| signálové rozhraní | LVDS (1 ch, 6-bit), 14 pins |
| vstupní napětí | 3.3V (Typ.) |
| aplikace | NBPC |
