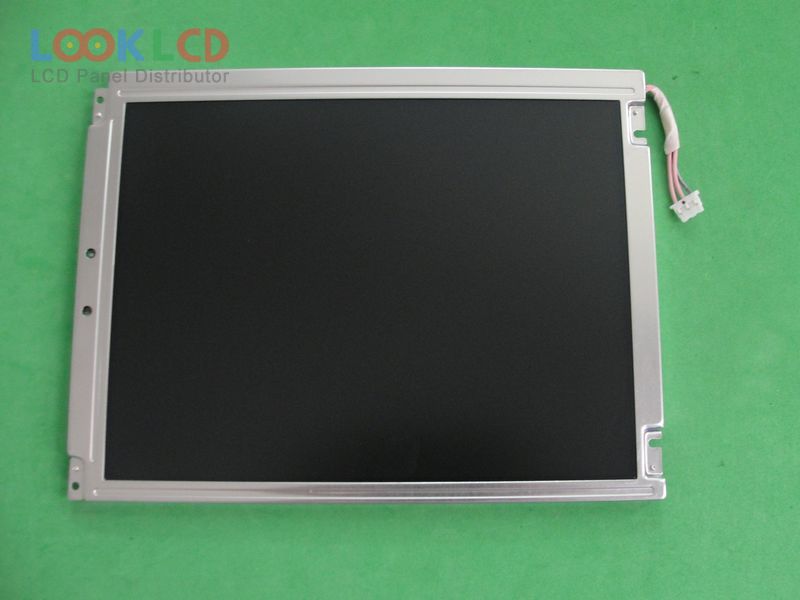

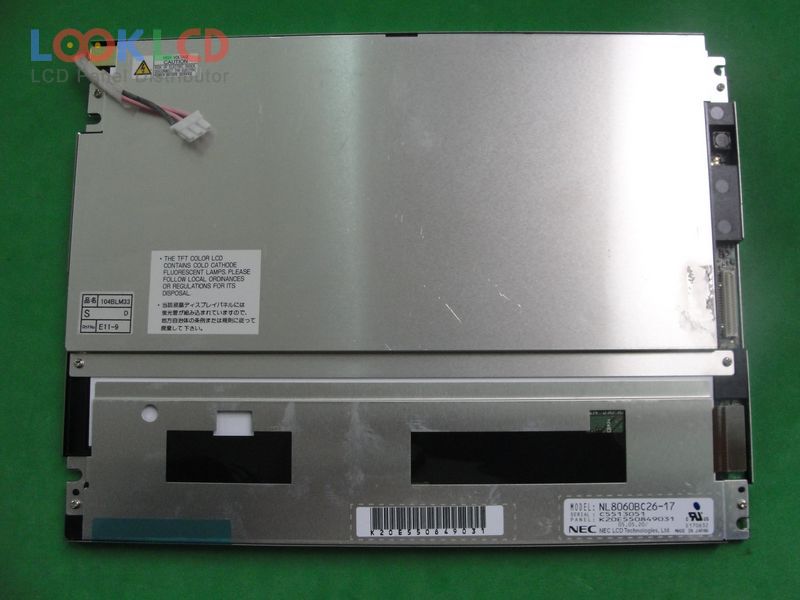

| PartNumber | NL8060BC26-17 |
| Značka | NLT |
| Velikost | 10.4 |
| aplikace | IA |
| Rozlišení | 800×600 |
| Složení | LCM |
| Jas | 280 |
| CR | 300:1 |
| Barvy | 262K |
| Podsvícení | CCFL |
| Rozhraní | TTL |
| značka panelu | NEC |
| panelový model | NL8060BC26-17 |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 10.4 inch |
| rozlišení | 800(RGB)×600 , SVGA |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 211.2×158.4 mm |
| obrys | 243×185.1 mm |
| povrch | Antireflection |
| jas | 280 cd/m² (Typ.) |
| kontrastní poměr | 300:1 (Typ.) |
| zobrazit barvy | 262K (6-bit), CIE193143% |
| Doba odezvy | 15/65 (Typ.)(Tr/Td) |
| úhel pohledu | 50/50/35/45 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | 2 pcsCCFLWithout Driver |
| signálové rozhraní | CMOS (1 ch, 6-bit), 41 pins |
| vstupní napětí | 3.3/5.0V (Typ.)(VCC) |
| rohs: | |
| aplikace | IA |
